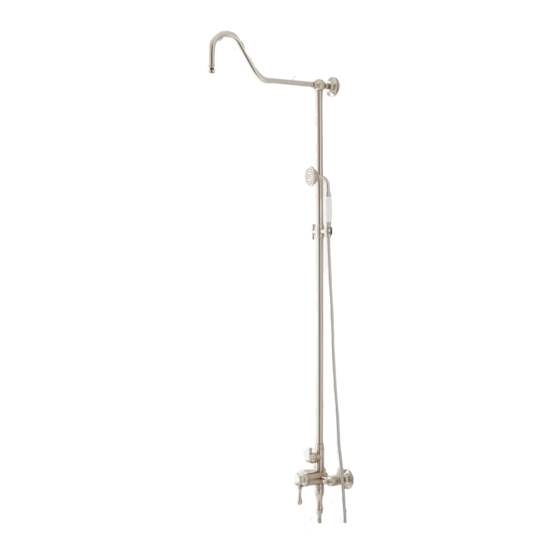

ALLISTON EXPOSED PIPE SHOWER SET
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing fixtures. Signature
Hardware accepts no liability for any damage to the
plumbing, floor, walls, tub, or for personal injury during
installation.
Observe all local plumbing and building codes.
Unpack and inspect the item for shipping damage. If any
damage is found, contact our Customer Relations team
at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
For the following instructions, it is assumed that the
in-wall plumbing has been prepared and the finished
wall is in place.
TOOLS AND MATERIALS:
Plumbers
Tape
Level
Tape Measure
Pencil or
Marker
Alliston Exposed Pipe Shower Set Installation Instructions
SKU(s): 936278
Adjustable
Thread
Wrench
Sealant
Drill
Hex Wrench
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Signature Hardware ALLISTON
Summary of Contents for Signature Hardware ALLISTON
- Page 1 Ensure that you have gathered all the required materials that are needed for the installation. For the following instructions, it is assumed that the in-wall plumbing has been prepared and the finished wall is in place. Alliston Exposed Pipe Shower Set Installation Instructions...
- Page 2 1-3/8” beyond the finished wall. Tip: Wrap the nuts with a soft cloth before tightening with a wrench, to avoid scratching the plated finish. Apply thread sealant or plumber’s tape Insert rubber washers. Alliston Exposed Pipe Shower Set Installation Instructions...
- Page 3 Important: If drilling through tile, you must use a masonry drill bit to avoid cracking or breaking the tile. Use screws after anchors are inserted into pilot holes. Alliston Exposed Pipe Shower Set Installation Instructions...
- Page 4 Once secure, tighten the set screw located on the upper mounting plate using the provided hex wrench. Apply thread sealant or plumber’s tape. Alliston Exposed Pipe Shower Set Installation Instructions...
