TOSCA THERMOSTATIC SHOWER SET INSTALLATION
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing fixtures. Signature
Hardware accepts no liability for any damage to the
plumbing, floor, walls, tub, or for personal injury during
installation.
Observe all local plumbing and building codes.
Unpack and inspect the faucet for shipping damage. If
any damage is found, contact our Customer Relations
team at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
For the following installation instructions, it is
assumed that the wall has been opened and that the
existing shower set has been removed.
Before you begin, the main water supply to your home
should be shut off.

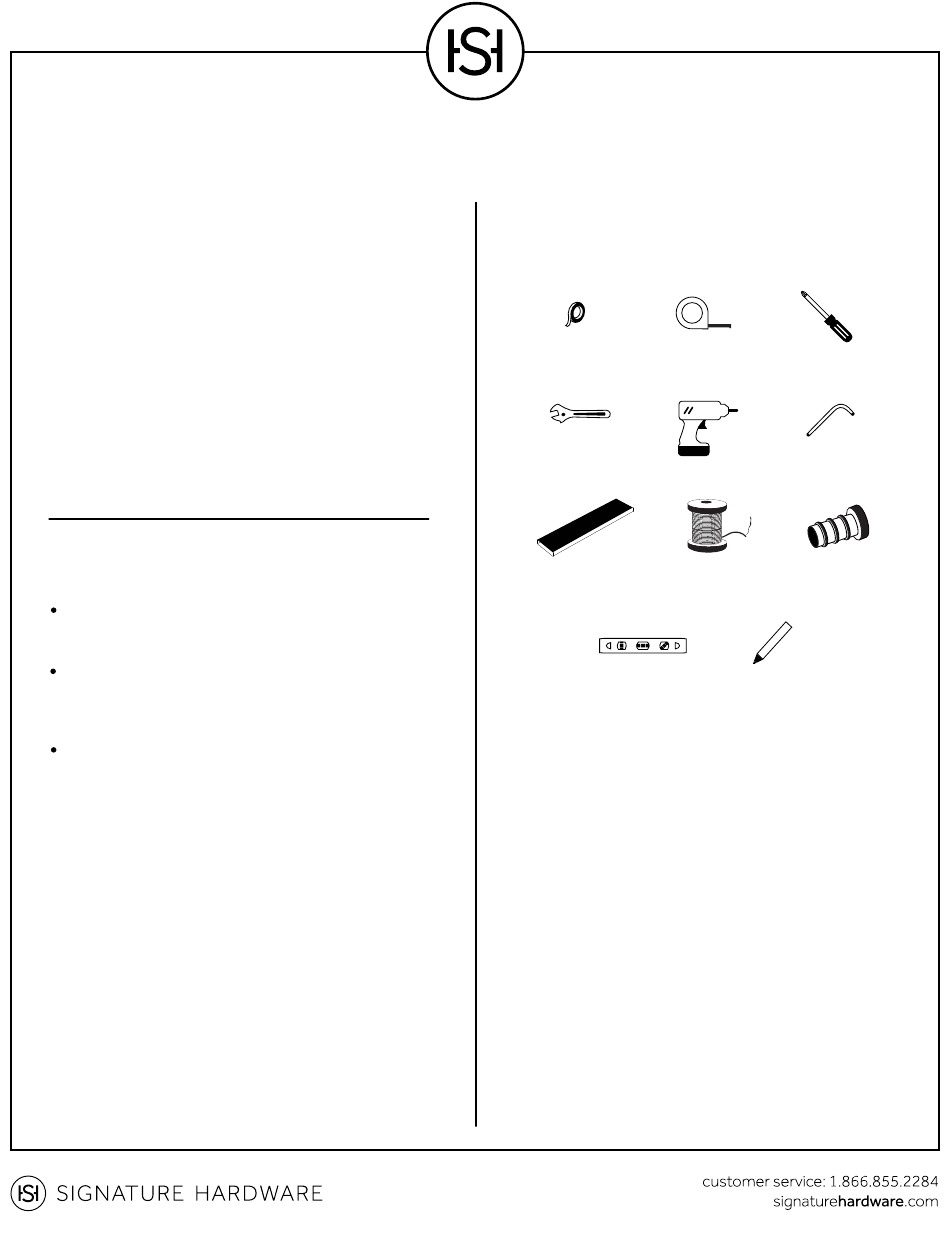

TOOLS AND MATERIALS:
Plumbers
Tape Measure
Tape
Adjustable
Wrench
Soldering Kit
Wood Blocking
(for copper pipe)
Level
Tosca Thermostatic Shower Set Installation Instructions
SKU(s): 925942
Phillips
Screwdriver
Hex Wrench
Drill
½" Test Plug
Pencil or
Marker
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Signature Hardware TOSCA
Summary of Contents for Signature Hardware TOSCA
- Page 1 Pencil or assumed that the wall has been opened and that the Level Marker existing shower set has been removed. Before you begin, the main water supply to your home should be shut off. Tosca Thermostatic Shower Set Installation Instructions...
-
Page 2: Step 1: Valve Installation
Use a level to ensure that the valve is straight and level. Tip: Leave the protective sleeves on the valve stems until your finished wall is complete, and you are ready to install the trim pieces. cold Tosca Thermostatic Shower Set Installation Instructions... -
Page 3: Step 2: Trim Installation
IMPORTANT: COMPLETE THE CONSTRUCTION OF YOUR WALL, INCLUDING ANY FINISHED WALL that the markings located above each opening on the MATERIALS SUCH AS TILE, BEFORE PROCEEDING back plate are facing up. WITH THE REMAINDER OF THE INSTALLATION. STOP Tosca Thermostatic Shower Set Installation Instructions... - Page 4 Tighten the posts using the provided hex sealant or plumber’s tape to the threads before wrench, then reattach the levers by threading them tightening. Use the decorative escutcheon to conceal onto the posts. the rough-in. Tosca Thermostatic Shower Set Installation Instructions...
- Page 5 fitting. Be sure the use the decorative brackets. To secure, tighten the set screws located on escutcheon to conceal the rough-in. Apply thread the slide bar using the provided hex wrench. sealant or plumber’s tape to the threads before tightening. Tosca Thermostatic Shower Set Installation Instructions...
- Page 6 12. Turn the main water supply back on, and test the head to the installed shower arm. Apply thread sealant completed shower system. Ensure that there are no or plumber’s tape to the threads before tightening. leaks and that all functions are working properly. Tosca Thermostatic Shower Set Installation Instructions...
