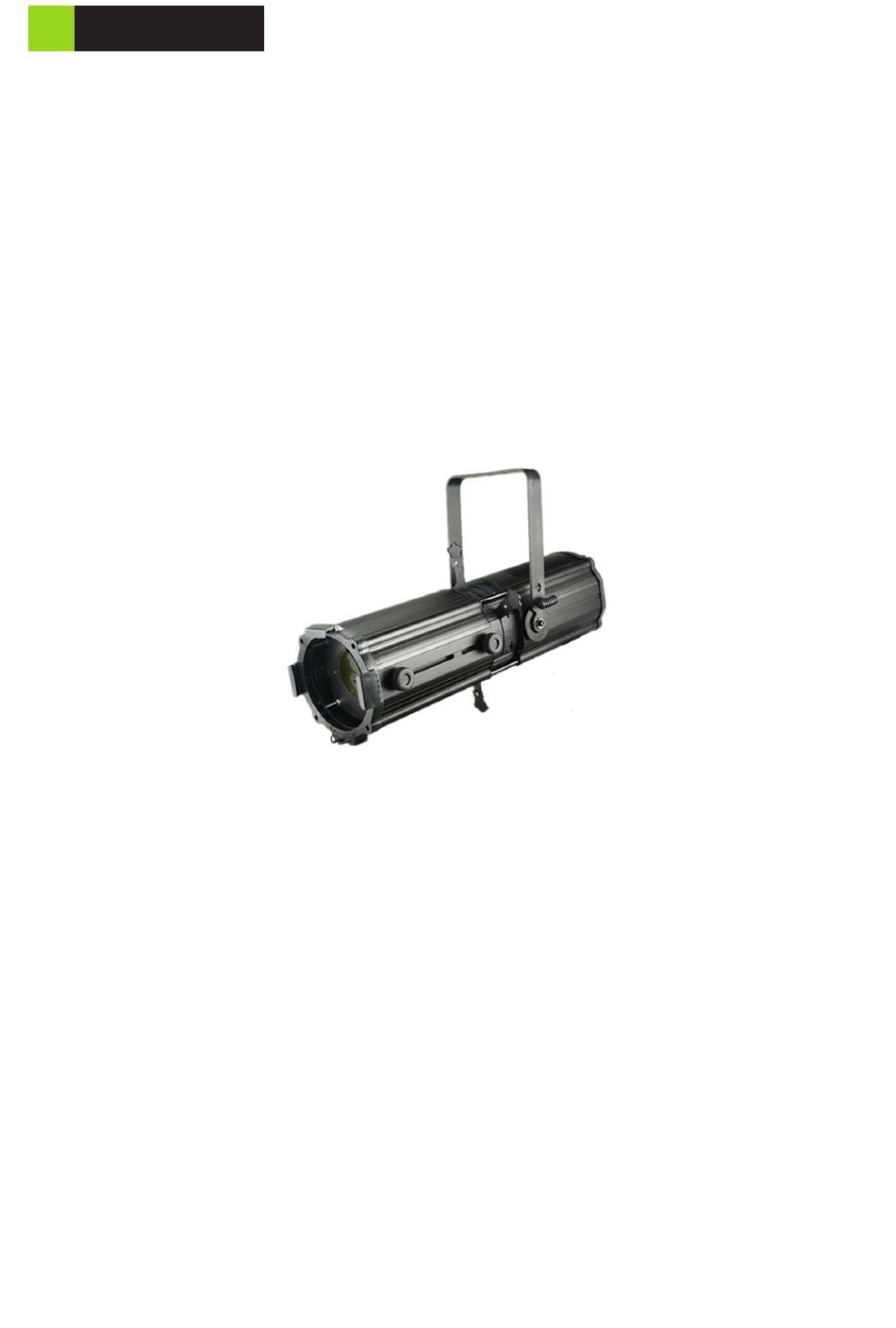

- Page 1 EXALITE EXL-XL Profile Zoom CW 300W USER MANUAL CE RoHS...
- Page 2 OVERVIEW Thank you for using our product, this unit is designed for indoor using, it’s widely used for stage, building, disco, etc. as high power led effects lighting, this unit can be operated as a single unit or multiple units for large applications. Direct input of DMX512 signal to unit to allow it controlled by any DMX controller, powerful internal programs and friendly and convenient operation interface allows customers to program freely to any different lighting project requirements for installation or showing.
-
Page 3: Product Introduction
1. Product Introduction 1.1. Product Feature 2 kinds of running model External control mode (Slave model) DMX 512 controller control(2 kinds channel modes) Master/salve model control (auto match the signal from controller and the Master light, no need to set by menu) static mode (Master model) ... -
Page 4: Key Operation
2. Operation 2.1. Key operation Menu： The first list is the main menu (press MENU to exchange), the second list is submenu (press ENTER to get in or exchange) If the menu include the decimal point, that’s the data, and it can be set by the Key of Up/Down. Key operation：... - Page 5 2.2. Menu Data Menu State Operation Remark Main Menu Vice Menu No vice menu A: advance UP/DOWN adjust ID adress disconnect the controller and External control mode ENTER save connect the master (standard channel address light, then it will model) follow the master No vice menu d: dmx...
-
Page 6: Channel Data
2.3. Channel data 2.3.1. Standard channel model channel data function Mark 0~255 dimmer 0~10 default delay of dimmer 11~15 no dimmer 16~255 Choose delay of dimmer 16 is the shortest delay time, increase gradually..255 is the longest delay time 0~10 no strobe 11~255... - Page 7 3.Photographic Chart 3.1 Spectrogram 3.2 CRI...
- Page 8 3.3 Lumen...
-
Page 9: Safety Warning
SAFETY WARNING 1. Warning ﹡ Every person involved with the installation , operation and maintenance of this device has to be qualified . ﹡ User must follow the instructions of this manual ﹡ Unqualified person can not open the housing cover and operate the device , or the dealer will not accept liability for any resulting defects or problems. -
Page 10: Problem And Solution
APPENDIX Problem and solution Caution : ﹡ Unqualified person involved with installation , operation and maintenance of this device is prohibited . ﹡ If any above mentioned problem happened , or unknown problem happened , please contact manufactory or distributor or distributor for assistance... - Page 11 DISCLAIMER 1. The device is with one year warranty . The warranty period appear non-artificial quality problem, this company is responsible for free maintenance 2. User violate operation caused the machine failure, this is user responsibility. 3. If due to the wrong operation or intense impact caused product destroy even safety accidents, the manufacturer does not undertake any responsibility 4.
