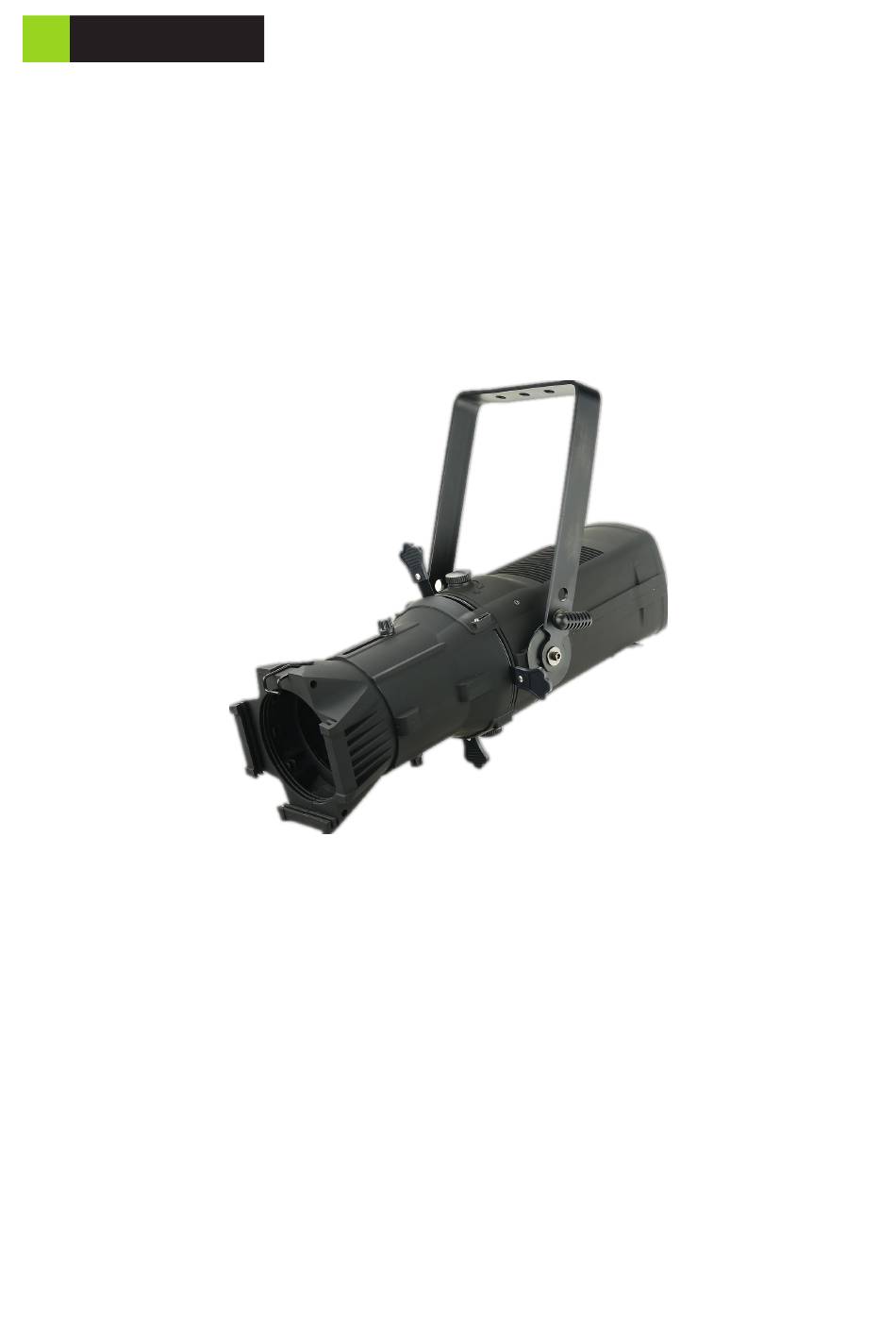

- Page 1 EXALITE EXL-L Profile 19° RGBW 200W USER MANUAL CE RoHS...
- Page 2 OVERVIEW Thank you for using our product, this unit is designed for indoor using, it’s widely used for stage, building, disco, etc. as high power led effects lighting, this unit can be operated as a single unit or multiple units for large applications. Direct input of DMX512 signal to unit to allow it controlled by any DMX controller, powerful internal programs and friendly and convenient operation interface allows customers to program freely to any different lighting project requirements for installation or showing.
-
Page 3: Product Introduction
1. Product Introduction 1.1. Product Feature 4 kinds of running mode External control mode (Slave mode) DMX 512 controller control(2 kinds of DMX channel modes) Master/salve model control (auto match the signal from controller and the Master light, no need to set by menu) Auto run mode (Master mode) ... -
Page 4: Multi-Light Working In The Same Time
1.2. Multi-light working in the same time When using controller to control multi lights to work in strobe or auto run, the controller just send the channel data . The strobe and auto run effect will be depend on each light itself . And please take attention for the follow situation: 1. -
Page 5: Channel Data
ENTER： If there are sub menu switch submenu Display Keys operation Menu menu description description Standard DMX(8CH) UP/DOWN change the address code channel model Addr:001 （5 channel） Simple channel DMX(4CH) UP/DOWN change the address code model Addr:001 （2channel） Static mode Dimmer：... -
Page 6: Basic Channel Model
0~255 dimmer 0~255 color 1 (red) 0~255 color 2 (green) 0~255 color 3 (blue) 0~255 color 4 (white) 0~30 no effect 31~200 multi color change 201~205 color temperature 1 (3200K) …… color temperature 2~10 (each 5 data is a color temperature level) 250~255 color temperature 11 (10000K) 0~10... -
Page 7: Problem And Solution
resulting defects or problems. ﹡ The device against rain and moisture 2. Waring notes : ﹡ Power supply : AC 100V-240V , 50/60Hz ﹡ Make sure the power switch is off , the power plug , outlet and the earth connection is in well condition before connecting the device with the mains. - Page 8 Caution : ﹡ Unqualified person involved with installation , operation and maintenance of this device is prohibited . ﹡ If any above mentioned problem happened , or unknown problem happened , please contact manufactory or distributor or distributor for assistance DISCLAIMER 1.
- Page 9 4. Prohibit replaced product components by any person, therefore caused any consequences will be whose responsible Please contact us freely when you need our related products or informations... PRODANCE, s.r.o. Osadní 799/26, 170 00 Praha 7 T: 220 806 054 E: info@prodance.cz www.prodance.cz...
