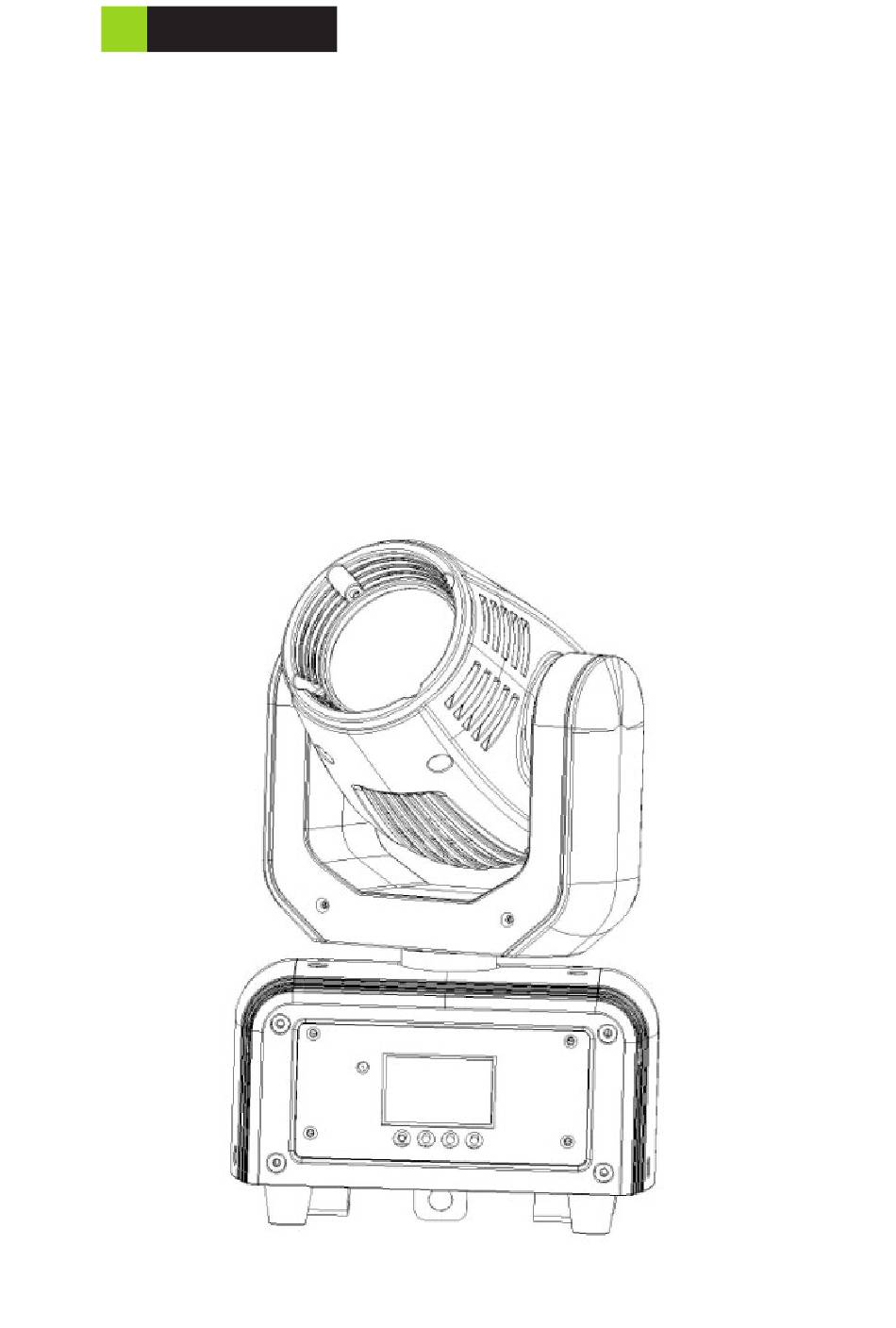

- Page 1 EXALITE EXL-M Beam RGBW User Guide...
- Page 2 Professional Entertainment Technology TABLE OF CONTENTS 1. Safety instruction 2. Technical Specification 3. How To Set The Unit 4. How To Set The Unit 5. Troubleshooting 6. Fixture Cleaning 1. Safety Instruction ● Please read carefully the instruction,which includes important information about the installation,,usage andmaintenance.
- Page 3 ●Do not touch any wire during operation as high voltage might becausing electric shock. Warning ●To prevent or reduce the risk of electrical shock or fire ,do not expose the unit to rain or moisture. ●Do not open the unit within five minutes after switching off. ●The housing,the lenses,or the ultraviolet filter must be replaced if they are visibly damaged.
- Page 4 3.How To Set The Unit 3.1 Control panel Display To show the various menus and the selected functions Led LAMP: DMX input present Button MENU To select the programming functions...
- Page 5 DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Only for remote control Connecting with CA-8/CA-9/CA-9RTX to control the unit for Stand by, Function and Mode function. Mains input Connect to power supply.
- Page 6 DMX Address Select DMX Address ,press the enter button to confirm,the present address will blink on the display. Use the UP and DOWN button to adjust the address from 1 to 512.Once the address has been selected,press the ENTER button TO setup ,to go back to the functions without any change press the MENU button again.
- Page 7 Auto Test Press the MENU button up to when the Auto-Test is blinking on the display.Pressing ENTER button and the unit will run self-test by built-in program.To go back to the functions press the MENU button again.Hold and press the MENU button about one second or wait for one minute to exit the menu mode.
- Page 8 ENTER button and the display will blink.Use DOWN and UP buttonto change the dmx512 address .Once the address has been selected,press the ENTER button to setup,to to back to the functions without any change press the MENU button again.Hold and press the MENU button about one second or wait for one minute to exit the menu mode.
- Page 9 Electronic shutter effect 0 - 19 Shutter closed 20 - 49 Shutter open Strobe 1 (fast → slow) 50 - 64 65 - 69 Shutter open 70 - 84 Strobe 2: opening pulse (fast → slow) 85 - 89 Shutter open 90 - 104 Strobe 3: closing pulse (fast →...
- Page 10 1. if you using a controller with 5 pins DMX out put,you need to use a 5 to 3 pin adapter-cable. 2. At last unit,the dmx cable has to be terminated with aterninator.Solder a 120 ohm 1/4w resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-out put of the last unit.
- Page 11 damage or interference to Dmx interface circuit. 3. Some units don’t respond to the easy controller a. You may have a break in the DMX cabling.Check the LEDfor the response of the master/slave mode signal. b. Wrong DMX address in the unit .Set the proper address. 4.
- Page 12 6:Electrical diagram PRODANCE, s.r.o. Osadní 799/26, 170 00 Praha 7 T: 220 806 054 E: info@prodance.cz www.prodance.cz...
