Summary of Contents for EXALite EXX-ML Beam 17R 350W

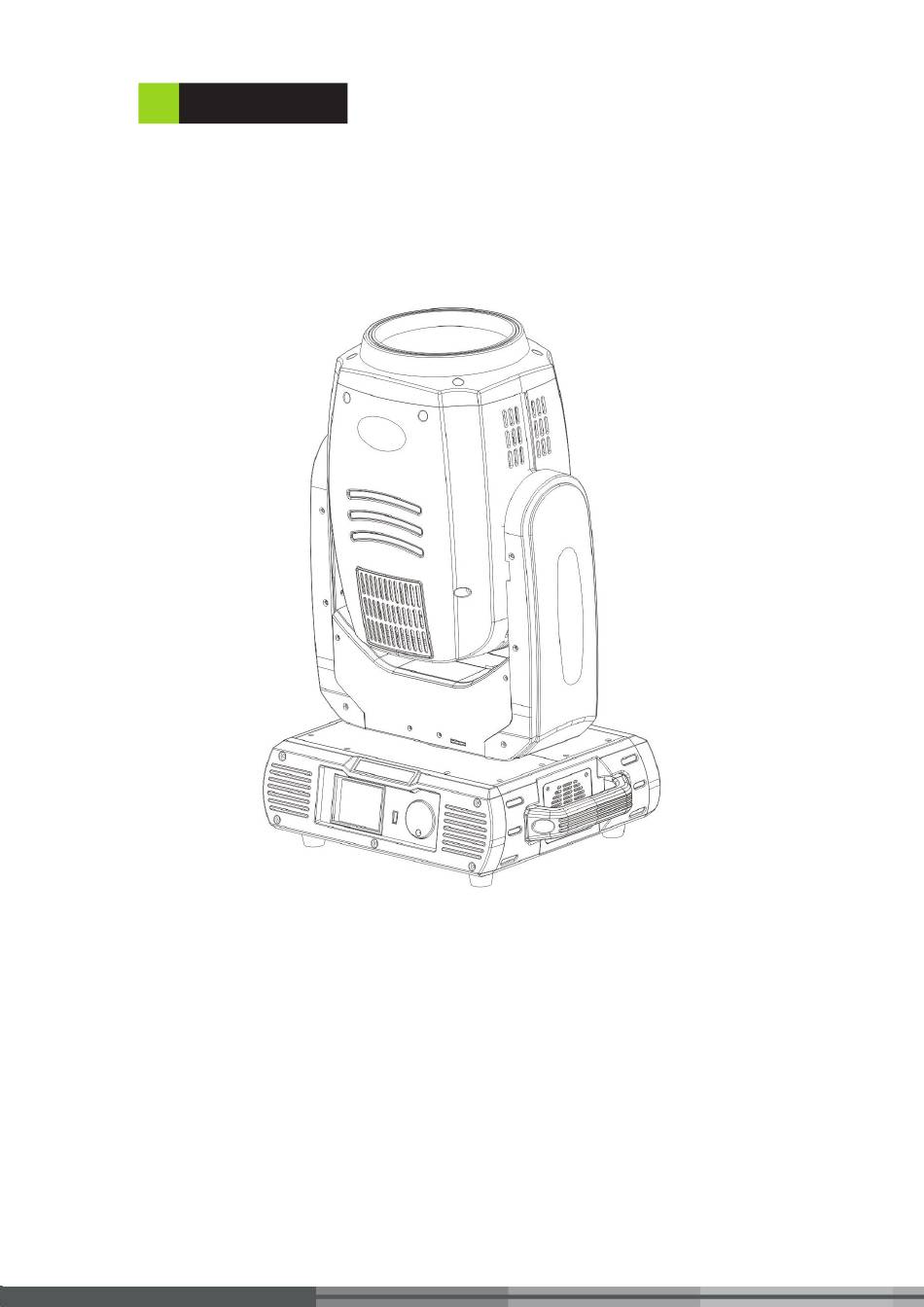

- Page 1 EXALITE EXX-ML Beam 17R 350W WEIGHT：18KG POWER：510W COLOR TEMPERATURE：7400K...
-
Page 2: Table Of Contents
ITEM Item...........................02 1.Product introduce ....................03 2.Fixture size......................03 3.Parts introduce....................05 4.Safety information....................05 5.Packing and shipping ..................07 6.AC power......................07 7.Lamp model and replace..................07 8.Control panel operate..................10 9.DMX Channels.....................13 10.PCB Driving board....................20 STATEMENT The product is good packing when ship out the factory. All users should strictly abide by the warnings and instructions stated in this manual, any damage and results due to misuse and the neglect of this operating manual will be excluded from the deal responsibility this manual will not informed in additionally if have technical changes. -
Page 3: Fixture Size
1. PRODUCTION INTRODUCE Thank you for choosing this E products, this model is the moving head lightwhich is the latest development of the smart, efficient products, beautiful shape, smooth R & D, combined with the advanced technology of today's stage lighting products with international advanced electronic control technology and excellent user-friendly industrial design , fully comply with CE standard, accepted international standard DMX512 signal mode. -
Page 4: Parts Introduce
PARTS INTRODUCE EXX-ML Beam 17R 350W each part of product structure and main composition product name description for better know the light unit. 01 —LCD display 02 —Control wheel EXX-ML Beam 17R 350W Control panel function introduction, mark for the part name on the panel, familiar with the function of every part. -
Page 5: Safety Information
4. SAFETY INFORMATION Safety warning message This product is only suitable for professional use, and does not apply to security for other purposes. After you got the lights, please check the package whether have any damage caused by transportation. If there is any damage, do not use this fixture, and please contact the dealer or manufacturer as soon as possible.This product is only suitable for indoor, IP20 protection class. - Page 6 Each lamp must be properly grounded, installed in accordance with the relevant standards; Cut off the power when stall or replace the lamp and the fuse; Prohibit the use of a lightning storm or wet environment. TO PREVENT BURNING OR FIRE The fixture can be mounted directly on the surface of ordinary combustible material.
-
Page 7: Ac Power
250V 5×20 EXX-ML Beam 17R 350W Power connection attention: Attention! The equipment must be operated by professionals; Make sure that the voltage of power supply must be comply with the voltage identified on the lamp, and must have an overload or leakage electrical protection. - Page 8 YODN MSD 350w 1500 HOURS 7400K 350 S17 WARNING! There is a safety hazard or damage if install similar bulb To reduce the risk of damage to light ,do change the lamp before using time over 125% of lamp life . LAMP REPLACE Attention! When replace the lamp is forbidden to touch lamp with bare hand, to avoid the greasy dirt stains filament.
-
Page 9: Control Panel Operate
5.install the lamp after replaced. 8. CONTROL PANEL CONTROL TOUCH WHEEL SCREEN DISPLAY Touch screen display：Display the data information and control operation; Control wheel: can turn right,left and enter; Turn left: Data increasing, scroll menu; Turn right: Data diminishing, scroll menu; Enter: OK 8.2. - Page 10 Pan/Tilt Scan Speed setting Noml normal Pan/Tilt Scan Speed setting PT Speed: Slow slow Pan/Tilt Scan Speed setting Fast fast Pan Scan Angle setting 360 Pan Angle: Pan Scan Angle setting 540 Pan Scan Angle setting 630 keep signal data Singl Clear: clear signal data half color function...
- Page 11 limitCont No function Return to default DefConfig back SAVE Save and back FacConfig EPRT for factory only back back Verify1: 0-255 need password Verify2: UNLOCK need password back ALL MOTER All step motor(do not adjust it ) Pan/Tilt step motor adjust(do not XY MOTER adjust it ) LAMP REST...
- Page 12 Shutter: Dimmer: Dimmer Fine: > < Back Back DMX VALUE CH00-CH32 0-255 DMX value number Colour: Rot Gobo: Static Gobo: Pan: Tilt: Gobo Rot: Prism: Right/Erro Motor reset state REST INFO Beam: Prism Rot: Beam Rot: Zoom: Focus: Pan Opto: Tilt Opto: SYSTEM Back...
-
Page 13: Dmx Channels
1Min Back light turn off after 1 min 2Min Back light turn off after 2 mins 3Min Back light turn off after 3 mins Turn off the menu and back 1Min Menu back after 1 min Menu Back: 2Min Menu back after 2 mins 3Min Menu back after 3 mins Back ground light flash function off... - Page 14 52-55 yellow 56-59 yellow+ light blue 60-63 light blue Color wheel 64-68 light blue + light green 69-72 light green 73-76 light green + pink 77-81 Pink 82-85 Pink + warming1 86-89 warming 1 90-93 warming 1+ fluorescence 94-98 fluorescence 99-102 Fluorescence + cooling 1 103-106...
- Page 15 38-42 Gobo 9 43-46 Gobo 10 47-51 Gobo 11 52-55 Gobo 12 56-59 Gobo 13 60-71 Effect gobo slow -fast Fixed gobo 72-113 Gobo clockwise fast -slow 114-117 White 118-159 Gobo clockwise slow-fast 160-166 Gobo 1 slow-fast move 167-173 Gobo 2 slow-fast move 174-181 Gobo 3...
- Page 16 155-255 clockwise fast-slow 8-15 combination effect 1 16-31 combination effect 2 32-47 combination effect 3 48-63 combination effect 4 64-79 combination effect 5 80-95 combination effect 6 macro 96-111 combination effect 7 112-127 combination effect 8 128-173 combination effect 9 144-159 combination effect 10 160-175...
-
Page 17: Pcb Driving Board
10. PCB Driving board PRODANCE, s.r.o. Osadní 799/26, 170 00 Praha 7 T: 220 806 054 E: info@prodance.cz www.prodance.cz...
