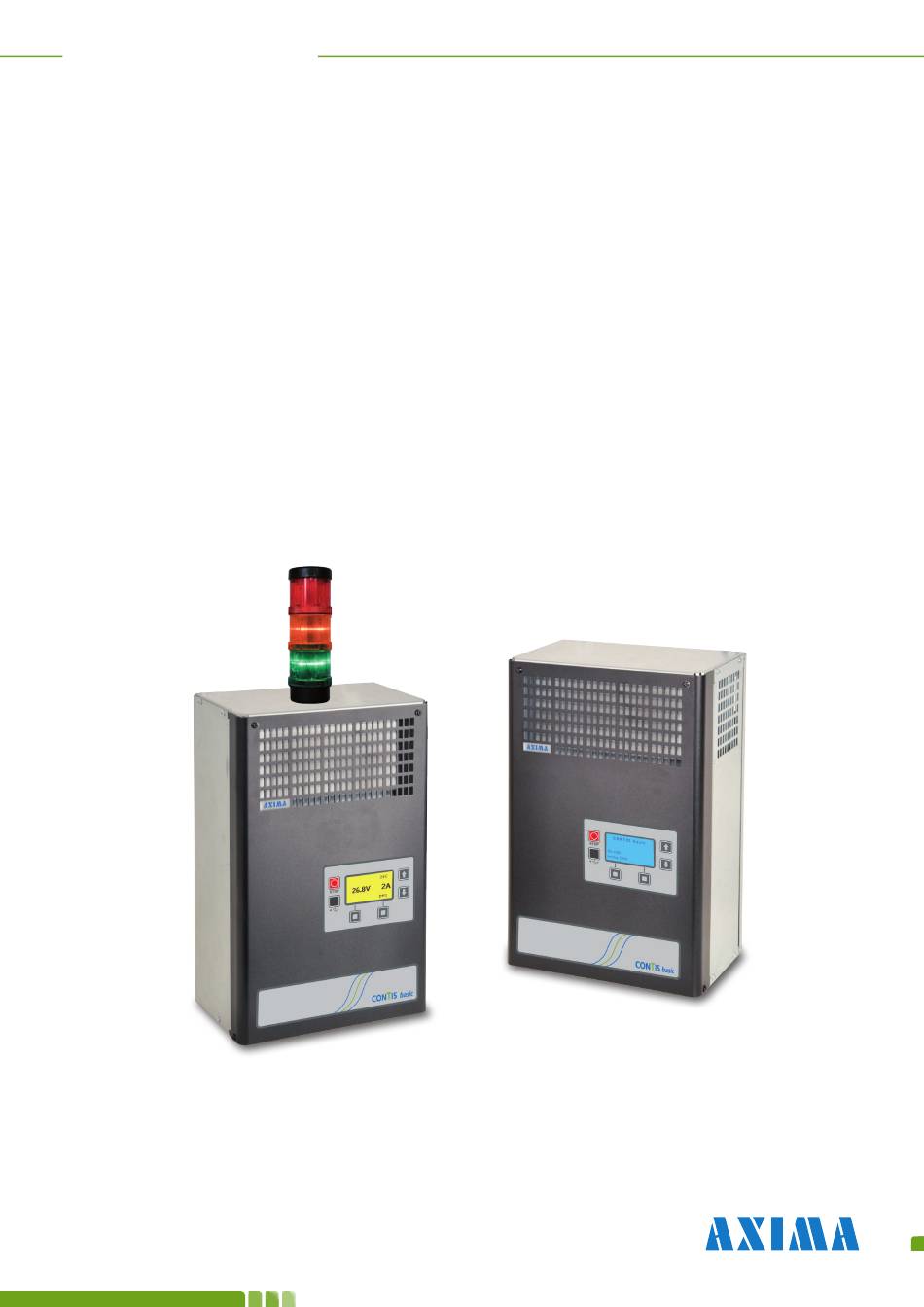

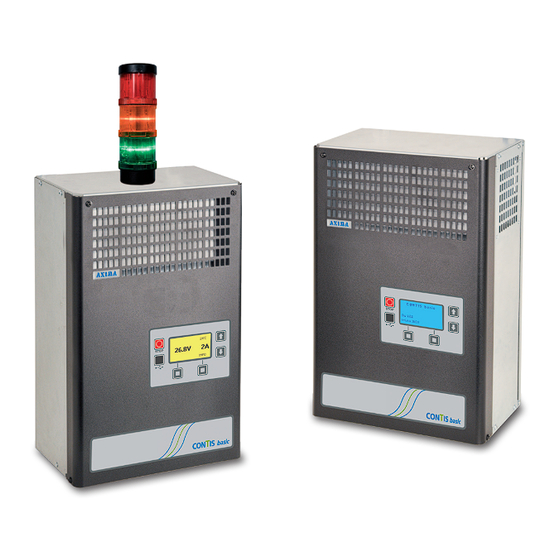

- Page 1 basic STATION BATTERY CHARGER User instructions 01/2016 EN BATTERY CHARGERS POWER SUPPLIES INDUSTRIAL APPLICATIONS...
-
Page 2: Specifications
1. Introduction CONTIS basic chargers are intended for industrial applications, mainly for charging and main-taining of station batteries in a charged state, DC power supply and back-up of technology systems, etc. With regard to the perfect electric parameters, they are suitable even for different types of batteries (e.g. - Page 3 basic STATION BATTERY CHARGER Operating instructions Types of chargers Battery voltage Charger current Charger voltage Input voltage Input current Mains protection Case Unom (VDC) Imax (A) Umax (VDC) (VAC) 24E60 FF170 24E100 FF170 14,1 12, 24 24D100 FF170 3x400 24D200 FF250 48E50 FF170...
-
Page 4: Charger Operation
basic STATION BATTERY CHARGER Operating instructions 4. Charger installation The box of the charger is intended to be hung on the wall (on a stand or on a bracket) in the vertical working position. However, the charger may be operated in the horizontal position, laid on its rear side, on a table or a base etc. To secure the correct functioning of the charger, it is necessary to keep the distance of at least 100 mm on both the sides of the charger as well as on the front side from other devices in order to provide sufficient ventilation. - Page 5 basic STATION BATTERY CHARGER Operating instructions 5. 2 Menu structure set value 1: IU set value set value curve set value 2: IU0U set value set value set value battery number of cells set value cable resistance set value setting battery Umin set value remote control...
- Page 6 • set values and press START (recommended values: respect the instructions of the battery producer) Manufacturer of the battery chargers AXIMA cannot be held responsible for damages or issues caused by incorrect charger setting. In the event of uncertainty over user settings, please contact your supplier.
- Page 7 F32 - the charging current >120% of the desired value, charging is stopped F33 - the charging current >120% of the Inom – value, charging is stopped www.axima.cz AXIMA, spol. s r. o., Vídeňská 125, Brno 619 00, CZ 4 7390 00 0 tel.: +420 547 424 011 • fax: +420 547 424 030 • e-mail: acdc@axima.cz...
