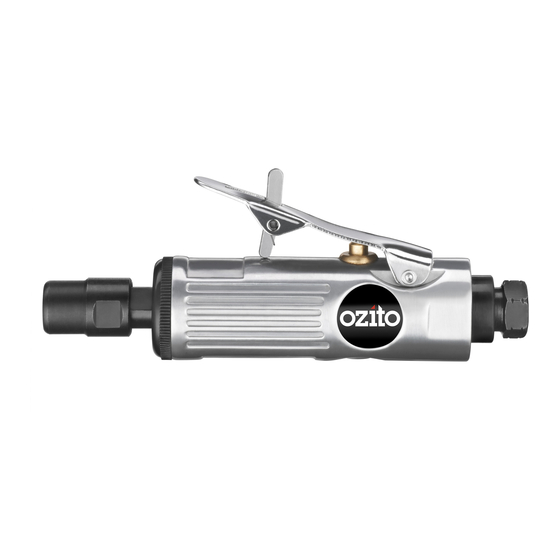

Ozito AGK-PRO Instruction Manual

AIR
STRAIGHT
GRINDER
6.35mm (1/4")
INSTRUCTION MANUAL
SPECIFICATIONS
Max Air Pressure: 90psi (6Bar)
Average Air Consumption: 113l/min (4cfm)
No Load Speed: 25,000/min
Max Collet Size: 6.35mm (1/4")
Air Inlet: 1/4" BSP
Weight: 0.41kg
AGK-PRO

GENERAL AIR TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term "power tool" in the warnings
refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
d. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
e. Check the maximum pressure rating of any tools or accessories that you intend using with
the compressor. The output pressure of the air from the compressor must be regulated so
that it never exceeds the rated pressure of the tool or accessory.
f. Always wear safety goggles or glasses when using the air compressor. Never point the
nozzle of an accessory towards any part of your body or towards another person.
g. Drain the moisture from the tank daily. It will help prevent corrosion.

AIR CUT-OFF TOOL SAFETY WARNINGS

WARNING! Operations such as grinding or cutting-off are not recommended to be
performed with this power tool. Operations for which the power tool was not designed
may create a hazard and cause personal injury.
• Do not use accessories which are not specifically designed and recommended by the
tool manufacturer. Just because the accessory can be attached to your power tool, it does not
assure safe operation.
• The rated speed of the accessory must be at least equal to the maximum speed marked
on the power tool. Accessories running faster than their rated speed can break and fly apart.
• The outside diameter and the thickness of your accessory must be within the capacity
rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or
controlled.
• Never place your hand near the rotating accessory. Accessory may kickback over your
hand.

DESCRIPTION OF SYMBOLS

Warning
Wear ear protection
Revolutions or
/min
reciprocaton per minute
Read instruction
manual
Wear eye protection
n
o
No load speed
h. Use safety equipment including safety goggles or shield, ear protection, breathing respirator
mask and protective clothing.
i. Air tools should not be used in a potentialy explosive environment.
j. Use safety equipment including safety goggles or shield, ear protection, breathing or
respirator mask and protective clothing.
k. The tool must be used only for its prescribed purpose. Any use other than those mentioned
in this Manual will be considered a case of misuse. The user and not the manufacturer
shall be liable for any damage or injury resulting from such cases of misuse.
WARNING! In the event that an air line is cut or broken, the air supply must be turned off
at the compressor. A broken air line which is not supported is extremely dangerous and
can whip around very quickly, both with the capability of striking people, and blowing foreign
particles into the air.
Do not attempt to catch the air line but immediately keep bystanders well clear and turn off the air
supply to the hose, turn off the compressor at the On / Off button, and then remove the hose from
the compressor.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given the supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Use special care when working corners, sharp edges etc. Avoid bouncing and snagging
the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory
and cause loss of control or kickback.
• Do not restart the cutting operation in the work piece. Let the wheel reach full speed and
carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in
the work piece.
• Cutting-off wheels and routing cutter wheels shall not be used.
• Wear personal protective equipment. Depending on application, use face shield, safety
goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and
workshop apron capable of stopping small abrasive or work piece fragments. The eye protection
must be capable of stopping flying debris generated by various operations . The dust mask or
respirator must be capable of filtrating particles generated by your operation. Prolonged exposure
to high intensity noise may cause hearing loss.

SPARE PARTS

6.35mm Collet SPAGKPRO-29
3.15mm Collet SPAGKPRO-33
Collet Nut SPAGKPRO-30
Spanners (2) SPAGKPRO-32A
Spare parts can be ordered from the Special Orders Desk at
your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
Email: enquiries@ozito.com.au

KNOW YOUR PRODUCT

1 Collet Nut
2 Spindle
3 Lock-off Lever
4 On/off Trigger
5 Air Inlet
