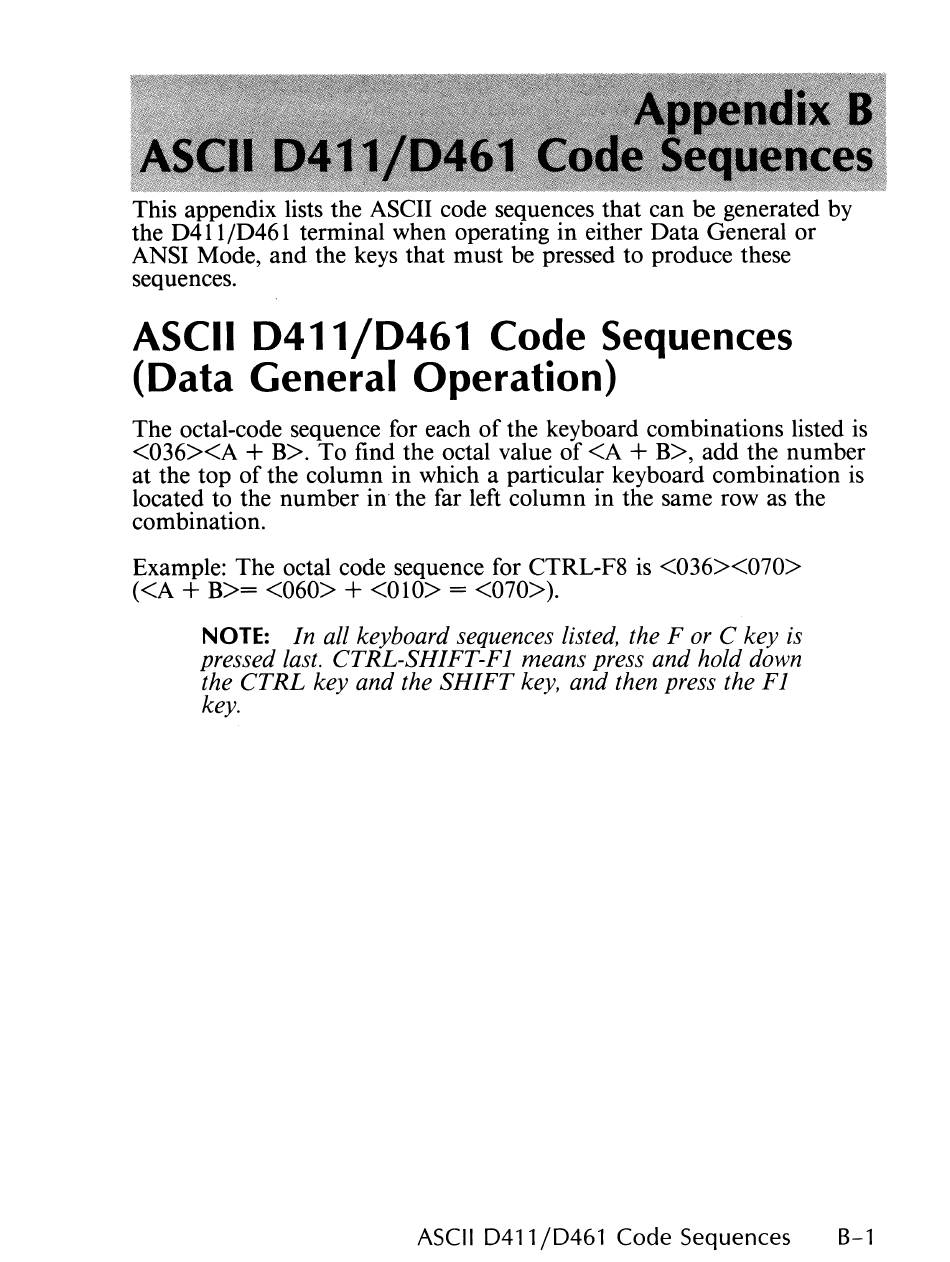

Ascii D411/D461 Code Sequences - Data General Dasher D461 User Manual

This appendix lists the ASCII code sequences that can be generated by
the 0411/0461 terminal when operating in either Data General or
ANSI Mode, and the keys that must be pressed to produce these
sequences.
ASCII 0411/0461 Code Sequences
(Data General Operation)
The octal-code sequence for each of the keyboard combinations listed is
<036><A
+
B>. To find the octal value of <A
+
B>, add the number
at the top of the column in which a particular keyboard combination is
located to the number in the far left column in the same row as the
combination.
Example: The octal code sequence for CTRL-F8 is <036><070>
«A
+
B>= <060>
+
<010> = <070».
NOTE:
In all keyboard sequences listed, the F or C key is
pressed last. CTRL-SHIFT-Fl means press and hold down
the CTRL key and the SHIFT key, and then press the F 1
key.
ASCII D411 /D461 Code Sequences B-1
