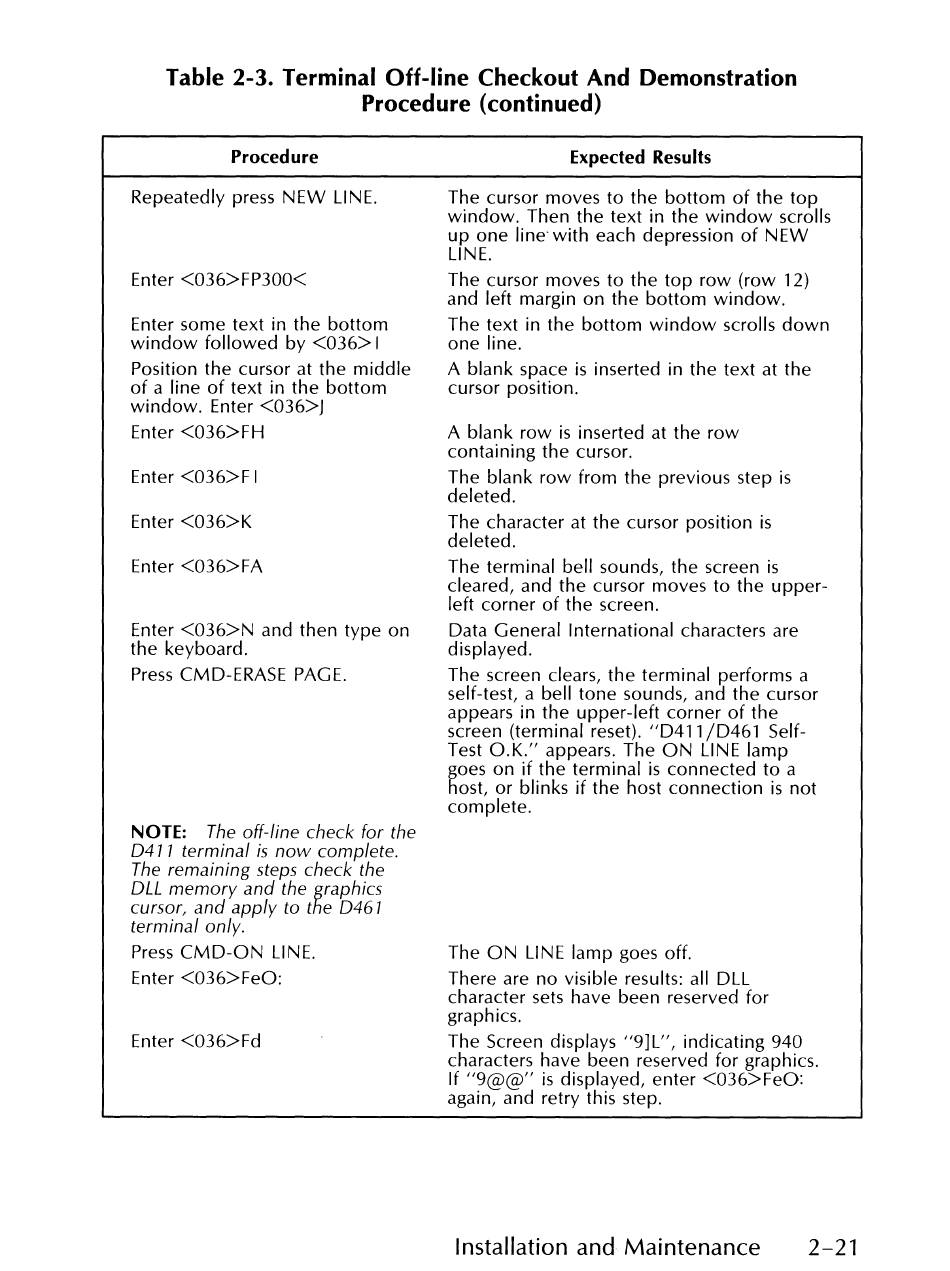

Table 2-3. Terminal Off-line Checkout And Demonstration
Procedure (continued)
Procedure
Repeatedly press NEW LINE.
Enter <036>FP300<
Enter some text in the bottom
window followed by <036> I
Position the cursor at the middle
of a line of text in the bottom
window. Enter <036>J
Enter <036>FH
Enter <036>F I
Enter <036>K
Enter <036>FA
Enter <036>N and then type on
the keyboard.
Press CMD-ERASE PAGE.
NOTE:
The off-line check for the
0411 terminal is now complete.
The remaining steps check the
OLL memory and the graphics
cursor, and apply to the 0461
terminal only.
Press CMD-ON LINE.
Enter <036>FeO:
Enter <036>Fd
Expected Results
The cursor moves to the bottom of the top
window. Then the text in the window scrolls
up one line' with each depression of NEW
LINE.
The cursor moves to the top row (row 12)
and left margin on the bottom window.
The text in the bottom window scrolls down
one line.
A blank space is inserted in the text at the
cursor position.
A blank row is inserted at the row
containing the cursor.
The blank row from the previous step is
deleted.
The character at the cursor position is
deleted.
The terminal bell sounds, the screen is
cleared, and the cursor moves to the upper-
left corner of the screen.
Data General I nternational characters are
displayed.
The screen clears, the terminal performs a
self-test, a bell tone sounds, and the cursor
appears in the upper-left corner of the
screen (terminal reset). "D411 /D461 Self-
Test O.K." appears. The ON LINE lamp
goes on if the terminal is connected to a
host, or blinks if the host connection is not
complete.
The ON LINE lamp goes off.
There are no visible results: all DLL
character sets have been reserved for
graphics.
The Screen displays "9]L", indicating 940
characters have been reserved for graphics.
If "9@@" is displayed, enter <036>FeO:
again, and retry this step.
Installation and Maintenance
2-21
