AA-0612

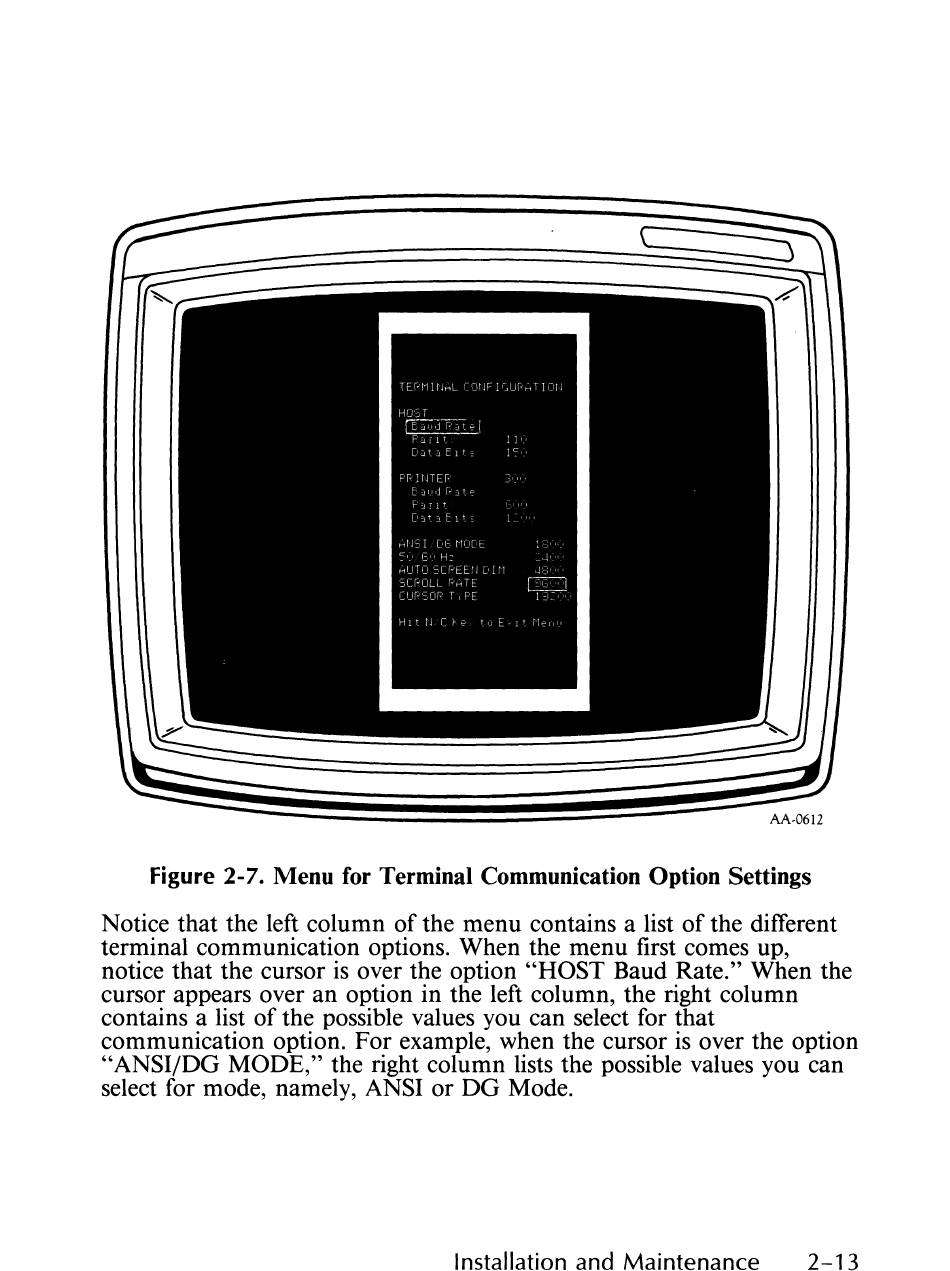

Figure 2-7. Menu for Terminal Communication Option Settings
Notice that the left column of the menu contains a list of the different
terminal communication options. When the menu first comes up,
notice that the cursor is over the option "HOST Baud Rate." When the
cursor appears over an option in the left column, the right column
contains a list of the possible values you can select for that
communication option. For example, when the cursor is over the option
"ANSI/DG MODE," the right column lists the possible values you can
select for mode, namely, ANSI or DG Mode.
Installation and Maintenance 2-13
