Rearview
r
"""' "
e
e
BJern
•• Lhla{
I
ell
..I
Host Pnnter
Keyboard
ef
~.
'¥---"-'-"t/o
]fl
'.'
~
fJ
'I
\.,-'
L~
-
.\
\
l
I
\
Conf iguration Label
I
Keyboard
Printer
AA-0606

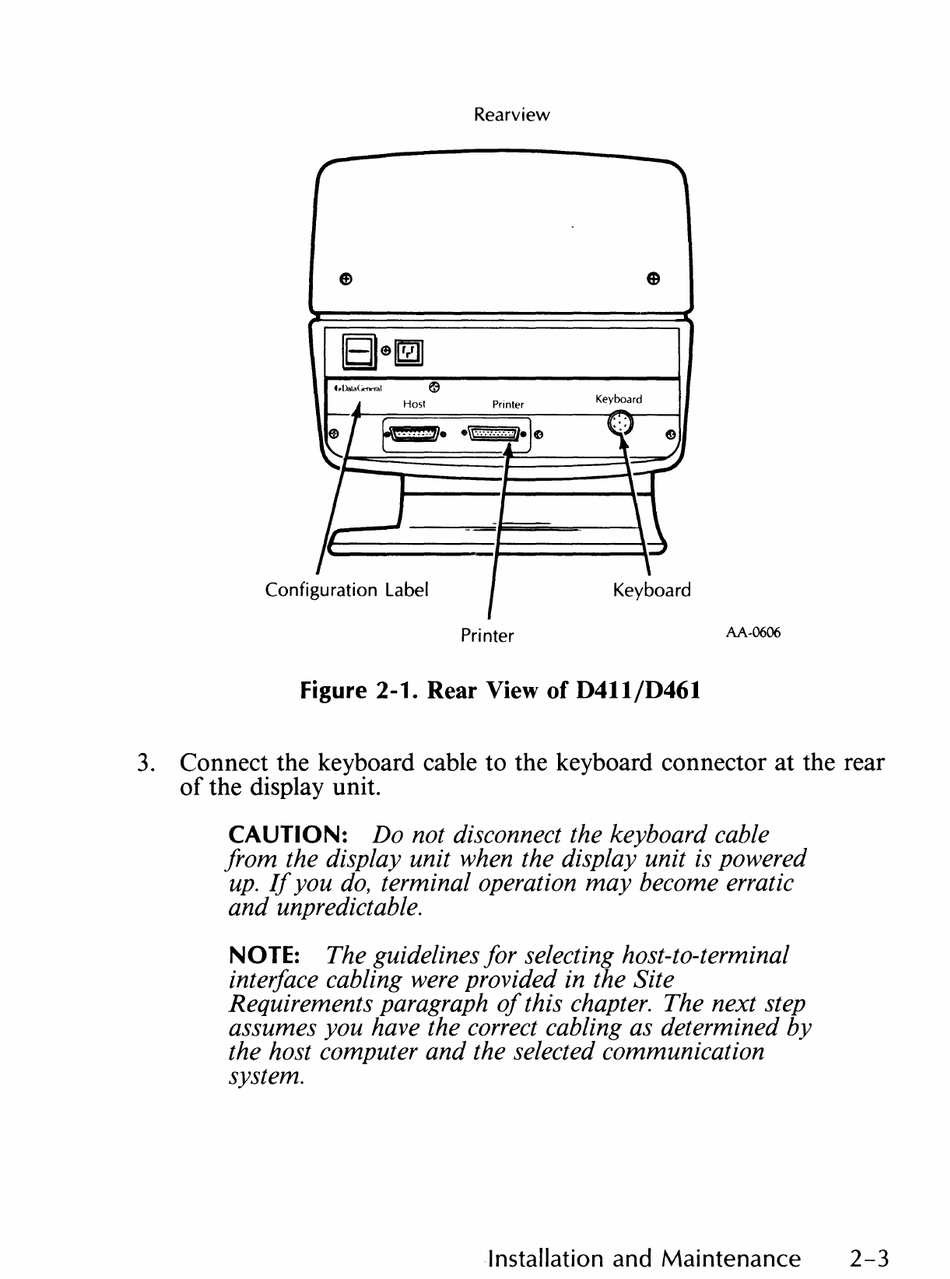

Figure 2-1. Rear View of D411jD461
3. Connect the keyboard cable to the keyboard connector at the rear
of the display unit.
CAUTION:
Do not disconnect the keyboard cable
from the display unit when the display unit is powered
up. If you do. terminal operation may become erratic
and unpredictable.
NOTE: The guidelines for selecting host-to-terminal
interface cabling were provided in the Site
Requirements paragraph of this chapter. The next step
assumes you have the correct cabling as determined by
the host computer and the selected communication
system.
Installation and Maintenance 2-3
