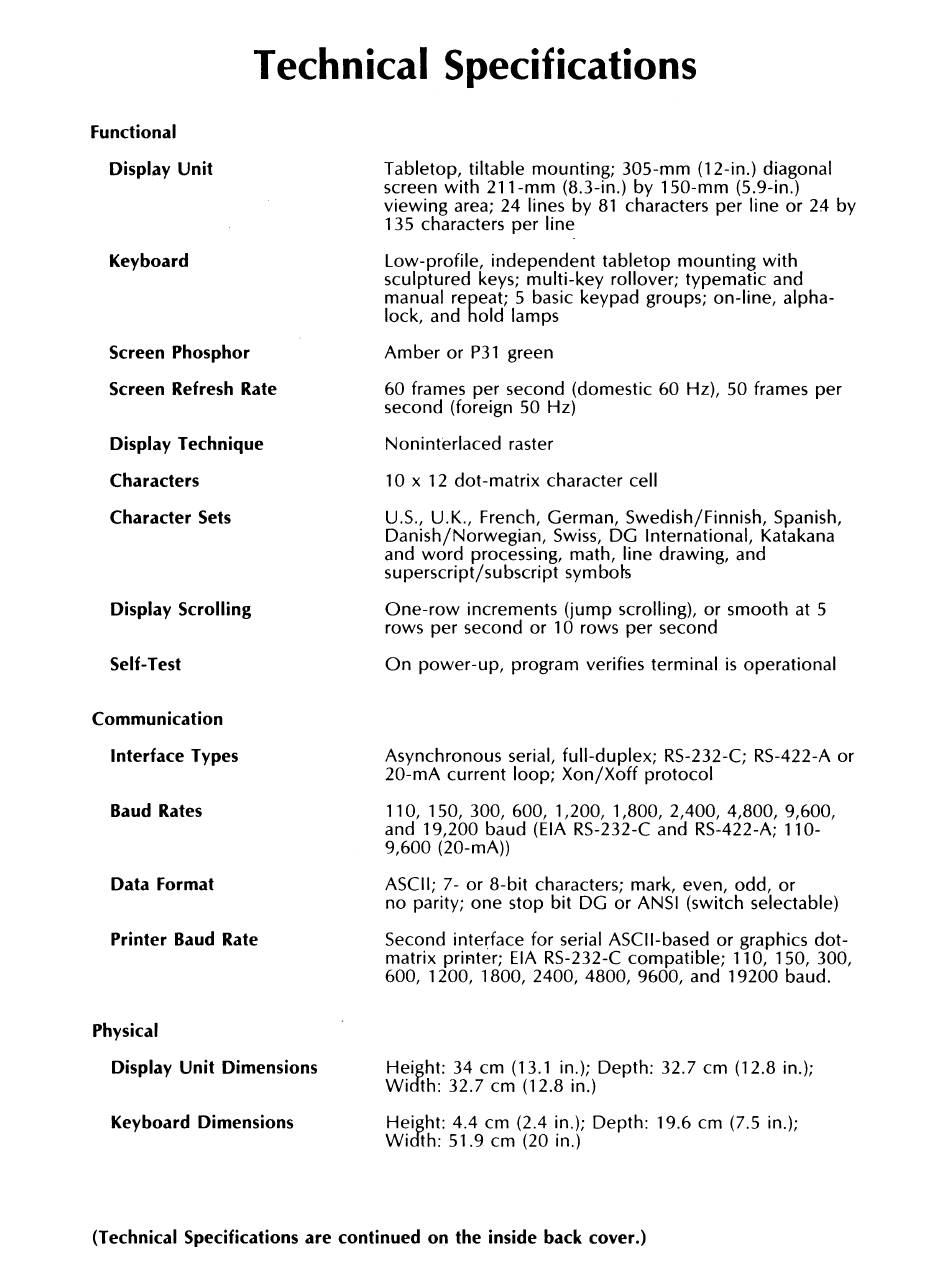

Technical Specifications
Functional
Display Unit
Keyboard
Screen Phosphor
Screen Refresh Rate
Display Technique
Characters
Character Sets
Display Scrolling
Self-Test
Communication
Interface Types
Baud Rates
Data Format
Printer Baud Rate
Physical
Display Unit Dimensions
Keyboard Dimensions
Tabletop, tiltable mounting; 305-mm (12-in.) diagonal
screen with 211-mm (B.3-in.) by 150-mm (5.9-in.)
viewing area; 24 lines by Bl characters per line or 24 by
135 characters per line
Low-profile, independent tabletop mounting with
sculptured keys; multi-key rollover; typematic and
manual repeat; 5 basic keypad groups; on-line, alpha-
lock, and hold lamps
Amber or P31 green
60 frames per second (domestic 60 Hz), 50 frames per
second (foreign 50 Hz)
Noninterlaced raster
lOx 12 dot-matrix character cell
U.S., U.K., French, German, Swedish/Finnish, Spanish,
Danish/Norwegian, Swiss, DG International, Katakana
and word processing, math, line drawing, and
superscript/subscript symbots
One-row increments (jump scrolling), or smooth at 5
rows per second or 10 rows per second
On power-up, program verifies terminal is operational
Asynchronous serial, full-duplex; RS-232-C; RS-422-A or
20-mA current loop; Xon/Xoff protocol
110, 150, 300, 600, 1,200, 1 ,BOO, 2,400, 4,BOO, 9,600,
and 19,200 baud (EIA RS-232-C and RS-422-A; 110-
9,600 (20-mA))
ASCII; 7- or B-bit characters; mark, even, odd, or
no parity; one stop bit DG or ANSI (switch selectable)
Second interface for serial ASCII-based or graphics dot-
matrix printer; EIA RS-232-C compatible; 110, 150, 300,
600, 1200, 1 BOO, 2400, 4BOO, 9600, and 19200 baud.
Height: 34 cm (13.1 in.); Depth: 32.7 cm (12.B in.);
Width: 32.7 cm (12.B in.)
Height: 4.4 cm (2.4 in.); Depth: 19.6 cm (7.5 in.);
Width: 51.9 cm (20 in.)
(Technical Specifications are continued on the inside back cover.)
