Overview; Specifications; Installation Instructions For Trove2 - Altronix Trove2Z2 Installation Manual

Trove2Z2 accommodates various combinations of ZKTeco door controllers with or without Altronix power supplies and accessories
for access control systems.
Trove2Z2
• Includes: tamper switch, cam lock, board mounting hardware.
• 16 Gauge grey enclosure with ample knockouts for convenient access.
Enclosure Dimensions (H x W x D):
27.25" x 21.75" x 6.5" (692.2mm x 552.5mm x 165.1mm).
Accommodates up to four (4) 12VDC/7AH batteries.
1. Remove backplane from enclosure prior to mounting (do not discard hardware).
2. Mark and predrill holes in the wall to line up with the top keyholes in the enclosure. Install the upper fasteners and screws in the wall with the screw
heads protruding. Place the enclosure's upper keyholes over the screws, level and secure. Mark the position of the lower holes. Remove the
enclosure. Drill the lower holes and install the fasteners. Place the enclosure's upper keyholes over the upper screws. Install the lower screws and
make sure to tighten all screws (Enclosure Dimensions, pg. 8).
3. Mount UL Listed tamper switch (Honeywell Model 112 included or equivalent) in desired location, opposite hinge. Slide the tamper switch bracket
onto the edge of the enclosure approximately 2" from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel
input or the appropriate UL Listed reporting device. To activate alarm signal open the door of the enclosure.
4. Mount Altronix/ZKTeco boards/modules to backplane, refer to pages 3-5.
Hardware:
Nylon or Metal Standoff
5/16" Pan Head Screw
- 2 -

Overview:

Specifications:

Installation Instructions for Trove2:

TZ2
• 16 Gauge.
• Includes board mounting hardware.
Dimensions (H x W x D):
25.375" x 19.375" x 0.3125" (644.6mm x 492.1mm x 7.9mm).
Honeywell
model # 112
Tamper Switch
or equivalent
(provided)
Enclosure
to Access Control Panel
or U.L. Listed
Reporting Device

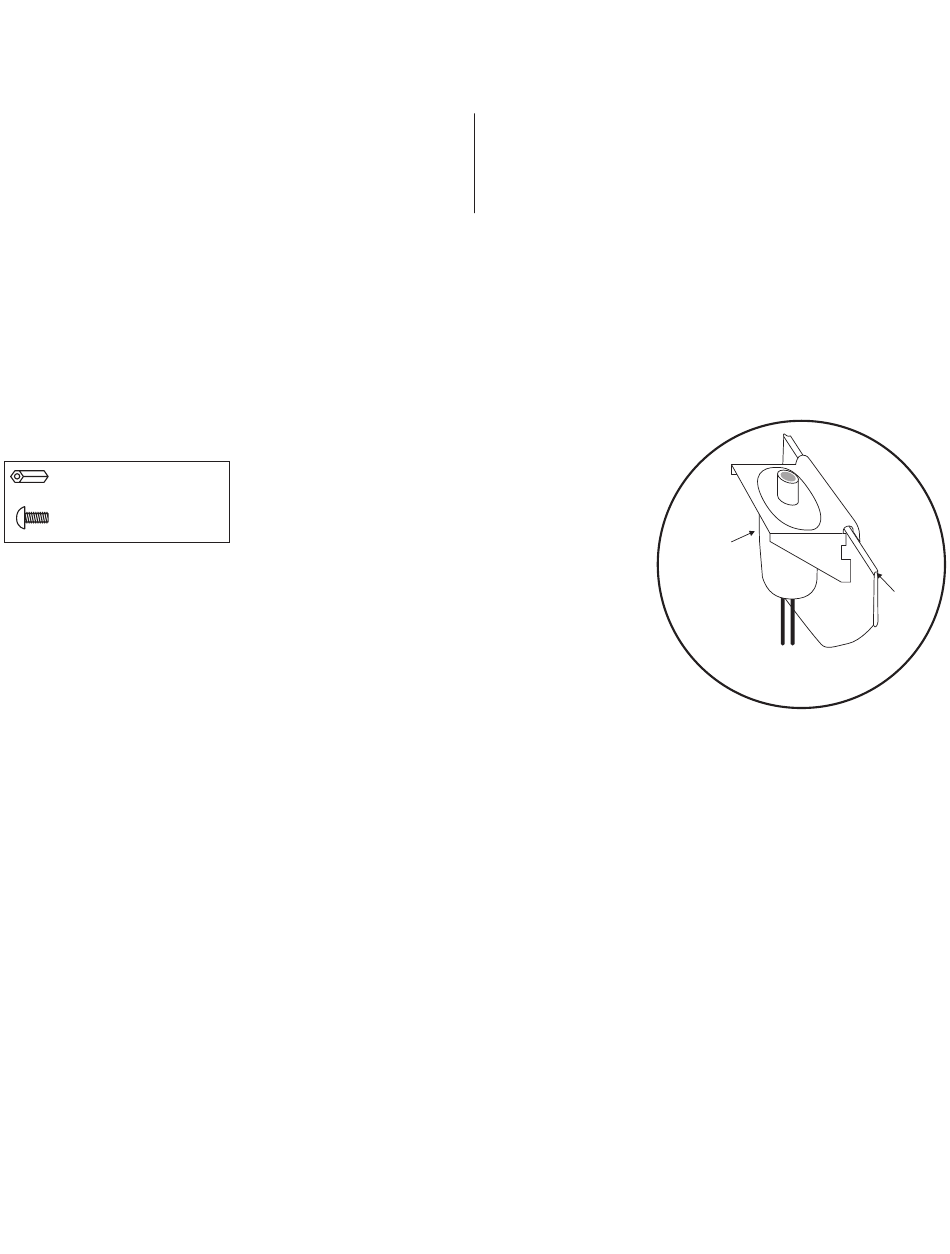

Fig. 1
Edge of
Enclosure
Trove2Z2 / TZ2
