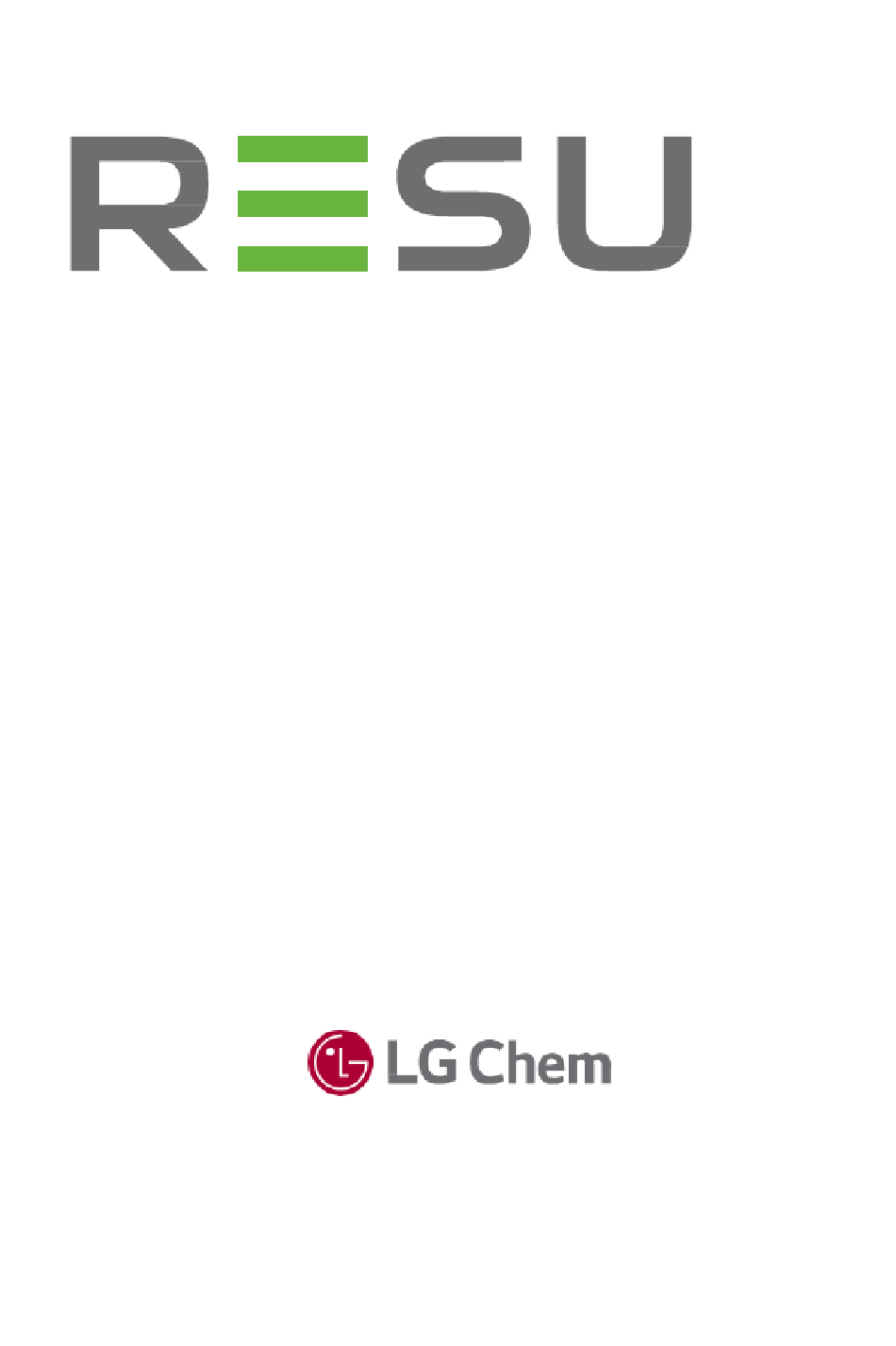

Installation Manual for RESU10M
LG Chem strongly advises to take due care in following LGC's installation manual .
A warranty claim is invalid if damage is caused by human error, inconsistent
with the installation manual and/or the user guide.
Version 0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RESU10M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG Chem RESU10M

Summary of Contents for LG Chem RESU10M

  • Page 1 Installation Manual for RESU10M LG Chem strongly advises to take due care in following LGC’s installation manual . A warranty claim is invalid if damage is caused by human error, inconsistent with the installation manual and/or the user guide. Version 0.0...

  • Page 2: About This Manual

    If you are uncertain about any of the requirements, recommendations, or safety procedures described in this manual, contact LG Chem immediately for advice and clarification. The information included in this manual is accurate at the time of publication. However, the product specifications are subject to change without prior notice.

  • Page 3: Table Of Contents

    INDEX 1. SAFETY Symbols Safety instructions Warning Label Qualified personnel 2. PRODUCT INTRODUCTION Technical data Feature Packaging specification 3. INSTALLATION Installation materials Installation location Tools Safety gear 4. BATTERY PACK INSTALLATION Unpacking Package items Optional accessories Installation clearance 오류! 책갈피가 정의되어 있지 않습니다. Securing battery pack to wall Cable connections...
  • Page 4 5. COMMISSIONING LED indicators Powering up the battery pack Shutting off the battery pack 6. TROUBLESHOOTING Troubleshooting...

  • Page 5: Safety

    1. Safety Symbols Caution, risk of electric shock Do not place nor install near flammable or explosive materials Install the product out of reach of children Read the instruction manual before starting installation and operation Heavy weight may cause serious injury to the back Do not dispose of the product with household wastes Recyclable Disconnect the equipment before carrying out maintenance or repair...

  • Page 6: Safety Instructions

    1.2.1. General safety precautions Over-voltages or wrong wiring can damage the RESU10M(hereinafter “battery pack”) and cause deflagration, which can be extremely dangerous. All types of breakdown of the product may lead to a leakage of electrolyte or flammable gas.
  • Page 7 or explosion in case of accident.  Do not disconnect, disassemble or repair by unqualified personnel. Services must be made by qualified personnel only.  Do not step on the product or the product package. The product may be damaged. ...
  • Page 8 1.2.3. Response to emergency situations The battery pack comprises multiple batteries that are designed to prevent hazards resulting from failures. However, LG Chem cannot guarantee their absolute safety.  If a user happens to be exposed to internal materials of the battery cell due to damage on the outer casing, the following actions are recommended.

  • Page 9: Warning Label

    Do not use submerged battery again and contact the service engineer. Warning Label Warning labels and other relevant labels are attached on the battery pack. 1. Warning label 2. Product label 3. Traceability label...

  • Page 10: Qualified Personnel

    Qualified personnel This guide for the tasks and procedures described herein is intended for use by skilled workers only. A skilled worker is defined as a trained and qualified electrician or installer who has all of the following skills and experience: ...

  • Page 11: Product Introduction

    2. Product Introduction Technical data 2.1.1 Dimensions and weight RESU10M EH155063P3S7 Width 452 mm (17.8“) Height 510 mm (20.1“) Depth 240 mm (4.5“) ��) ������������ 80kg(176.4lbs) 1) A battery pack’s weight varies slightly. 2.1.2 Performance Electrical Characteristics Total Energy Capacity 9.786kWh...

  • Page 12: Feature

    Operating Conditions Installation Location Indoor (Wall-mounting / Standing) Outdoor (Wall-mounting / Standing) Operating Temperature -10 ~ -50℃ Operating Temperature (Recommended) 15 ~ 30℃ Storage Temperature - 30℃ ~ 60℃ (7 day) - 20℃ ~ 45 Humidity 5~95% Max. 2,000m Altitude Cooling Strategy Natural convention Certification...

  • Page 13: Packaging Specification

    Packaging specification Category Contents Size (LxWxH) (mm) Outer Size (28.3") (32.3") (20.5") Qty/Box (ea) 1 piece X 2 layers Packaging Corrugated Cardboard Disposable Materials Inner Disposable Pallet Wood Disposable 2 piece/Box (Battery (36kg x 2ea) Weight Product 82 (180.8lbs) (kg) + Bracket, BPU, etc (10kg)) Packaging 25 (55.1lbs)

  • Page 14: Installation

    3. Installation Installation materials These installation materials shall be prepared by installers.  Charging cable  Network cable  Ground wire  RJ45 plug  Silicone sealant or putty Installation location Make sure that the installation location meets the following conditions: ...

  • Page 15: Tools

    Tools These tools are required to install the battery pack. Use properly insulated tools to prevent accidental electric shock or short circuits. Use adjustable tools and measuring instruments that are certified for precision and accuracy. Safety gear Wear the following safety gear when dealing with the battery pack. Installers must meet the relevant requirements on the national standards, such as IEC 60364 or the domestic legislation.

  • Page 16: Battery Pack Installation

    4. Battery Pack Installation Unpacking Unpack the battery pack from its packaging. 1. Open the package and pull out the drilling template. 2. Remove the sleeve. 3. Open the BPU box and take out the enclosed BPU and base bracket box. Take them out and check if any item is missing.
  • Page 17 4. After opening upper battery module box, take out product. 5. Remove the upper battery module box. 6. Take out the product in lower battery module box.

  • Page 18: Package Items

    The table below lists the number of each item included. Battery Pack Installation Use only the parts included with the battery pack, except for the screw anchors, to ensure proper installation. If anything is damaged or missing, contact LG Chem or your distributor.

  • Page 19: Optional Accessories

    Optional accessories The Wall Mounting Bracket is sold separately. Use these accessories in a place where the floor may get wet occasionally. Installation clearance Standing type Wall Mounting type Make sure to leave a space of at least 9 mm between the battery pack and the wall. A clearance of at least 9 mm must be left around the battery pack for proper cooling.
  • Page 20 Battery Pack Installation Secure the battery pack to a wall to prevent it from moving. If the battery pack is installed above the floor or on a platform, make sure that the wall or platform is capable of supporting the battery pack’s weight. Standing Type 4.5.1 1.
  • Page 21 6. Assembly Base plate and module(front side) on bottom side by fastening bolt.(M8, 8point) 7. Pull out the battery pack and stand it upright. Check if the battery pack is damaged. 8. When module setting, check the direction of the arrow is opposite such as below picture 9.
  • Page 22 10. Remove Top cover of BPU. (M5 bolt, 4point) 11. Assembly BPU without top cover on the module top side. Check LED direction facing forward. 12. Tighten the M5 bolt.(8point, 5Nm) CAUTION Be careful not to let metallic material fall into the BPU inside.
  • Page 23 14. Connect Power, Communication, Earth cable between battery ~ Invertor. All cable should pass through the grommet. 15. After connection of cables, turn on Circuit breaker. 16. After CB on, check LED is on.
  • Page 24 17. Assembly Wall MTG BRKT L/R on BPU side. (4 point, M5 bolt) 18. Assembly Top cover.(4point, M5, 3Nm)
  • Page 25 4.5.2 Wall Mounting Type CAUTION In case of wall mounting type, it needs to wall mounting bracket. (optional parts) When installation of wall mounting type, need two person or more for installation. 1. Determine where the mounting brackets are to be placed using the drill template.
  • Page 26 9. Assembly Wall Mounting bracket and module(front side) on bottom side by fastening bolt.(M8, 8point) CAUTION Be careful of the reversed and dropped module unexpectedly. One and more person should keep module position not to be revered and dropped on the ground. 10.
  • Page 27 14. Assembly BPU without top cover on the module top side. Check LED direction facing forward. 15. Tighten the M5 bolt.(8point, 5Nm) CAUTION Be careful not to let metallic material fall into the BPU inside. 16. Assembly Wall MTG BRKT L/R on BPU side. (4 point, M5 bolt) 17.
  • Page 28 18. Connect Power, Communication, Earth cable between battery ~ Invertor. All cable should pass through the grommet. 19. After connection of cables, turn on Circuit breaker. 20. After CB on, check LED is on. 21. Assembly Top cover.(4point, M5, 3Nm)

  • Page 29: Cable Connections

    Cable connections 4.6.1 Connecting network cable It is required for the battery pack to communicate with the inverter for proper operation. Connect a network cable between the battery pack and the inverter The small grommet is too small for an RJ45 plug to pass through. Without RJ45 plug at the end, feed the network cable through a small grommet and then through the top of the small cable entries.
  • Page 30 Connect the network cable to the network port. Push the grommet into the cable entry. 4.6.2 Connecting charging cables Feed a pair of charging cables through each of the grommets and then through each of the cable entries Connect the charging cables to the terminal block. a) Open the terminal cover plate, which is placed over the terminal block to protect it.

  • Page 31: Commissioning

    5. Commissioning LED indicators There are four LED indicators on the front of the battery packs to show its operating status. ON: This indicator stays on while the battery pack is supplied with power for operation. Charging: This stays on while the battery pack is charging. Discharging: This stays on while the battery pack is discharging.

  • Page 32: Troubleshooting

    Shutting off the battery pack To shut down the battery pack, take the following steps: Turn off the inverter. Remove the top cover from the battery pack. Turn off the battery pack by moving the circuit breaker switch to the OFF position. Make sure that every indicator on the battery pack is off.
  • Page 33 6.1.1 Post-Installation Check List Visual check if the wiring matches with the installation manual. (3.2 Cable connection) The power cable connector is connected. The Circuit Breaker is ON. The battery "ON" LED is ON. The inverter power is ON. The inverter has the latest firmware. The inverter recognizes the battery.
  • Page 34 Contact LGC regional contact point. ----------------------------------------------------------------------------------------------------- 1) Contact the inverter manufacturer. 2) Refer to the inverter installation manual or troubleshooting guideline. 3) Refer to the User guide or Installation manual (3.2 Cable connection) for the location of the battery. And the Circuit Breaker. If the battery LED is ON, but the battery is not charging or discharging Update both the inverter and battery firmware version.
  • Page 35 the inverter's troubleshooting guide for instruction. 2-1. Send the fault ID to LGC regional contact point. 2-2. Turn off the Circuit Breaker 2-3. Disconnect the power cable connector. 2-4. Wait further instruction from LGC...

  • Page 36: Contact Information

    6.1.3 Contact information Damaged batteries are dangerous and must be handled with extreme caution. They are not fit for use and may pose a danger to people or property. If the battery pack seems to be damaged, contact LGC regional contact point or your distributor. Use the contacts below for technical assistance.
