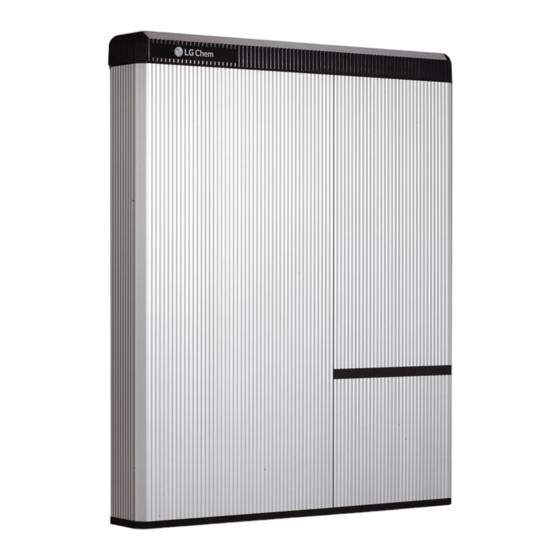

Installation Manual for RESU10H for Secondary (Type-R)
LG Chem strongly advises to take due care in following LGC's RESU10H installation
manual and user guide. A warranty claim is invalid if damage is caused by human
error, inconsistent with the installation manual and/or the user guide.
Version 1.2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LG Chem RESU10H Series
Summary of Contents for LG Chem RESU10H Series
- Page 1 Installation Manual for RESU10H for Secondary (Type-R) LG Chem strongly advises to take due care in following LGC’s RESU10H installation manual and user guide. A warranty claim is invalid if damage is caused by human error, inconsistent with the installation manual and/or the user guide.
- Page 2 10H Type R Parallel extension is for increased capacity of battery system. This installation Manual indicate to distinguish Primary and Secondary Pack. And make user to know connection in battery system. 1. Connection in 10H Type R parallel battery system. 1.1 Power Cable Power cable is connected by combiner Box.
- Page 3 1.2 Communication Cable (RS485 High/Low, Enable High/Low) Communication cable is connected by daisy chain. Communication line from inverter should be connected secondary battery pack. And the additional communication line is connected from secondary battery pack to Primary battery pack. Secondary communication connector is fixed 2 communication line.
- Page 4 2. Primary/Secondary Label Primary and Secondary battery pack can identify by the label. Primary battery pack is not apply any type of the symbol. Secondary pack is applied the “Secondary pack” label in the battery pack and package. The label position is the right bottom side into the cover of battery pack.
- Page 5 2.2 Box *Secondary Pack Box Only have “Secondary Pack” marks on the side of box. Primary Pack Secondary Pack 3. Note 3.1 Combiner Box Combiner Box Installation refer to the combiner box installation guide. 3.2 Battery Pack Indicator Battery pack LED Indicator is power ON after the installation of the battery pack. If installation of the battery pack is different than the guide, battery pack Fault LED is on.
- Page 6 Keep this manual for later use. ⓒ2017 LG Chem FKI Tower 37th, 24, Yeoui-daero, Yeongdeungpo-gu, Seoul 07320, Rep. of KOR. TEL : (82) 2-3773-1114 FAX : (82) 2-3773-7005 http://www.lgesspartner.com http://www.lgchem.com...
