Video Connection

Your NetStream 2000 must be connected to your VGAcard or your
PC's VGAoutput port in order to display MPEG video on your
VGAmonitor. (Refer to Figure 1 earlier in this Chapter for refer-
ence.) Follow the steps to connect the NetStream 2000 to your VGA
output (see Figure 2).
1. Attach the round 9-pin DIN connector of the provided External
VGAPass-Through Cable to the VGAIN connector at the back
of the NetStream 2000 (refer to Figure1).
2. Attach the other end (15-pin "D" shape) of the cable to the output
port on your VGAcard or your PC's VGAoutput port.
3. Connect the VGAcable from your VGAmonitor to the VGA
OUT of the NetStream 2000.
6 Chapter 2: Hardware Installation
6/6/00 2:47 PM Page 11
VGAOutput Port
(Attach your monitor's
video cable here)

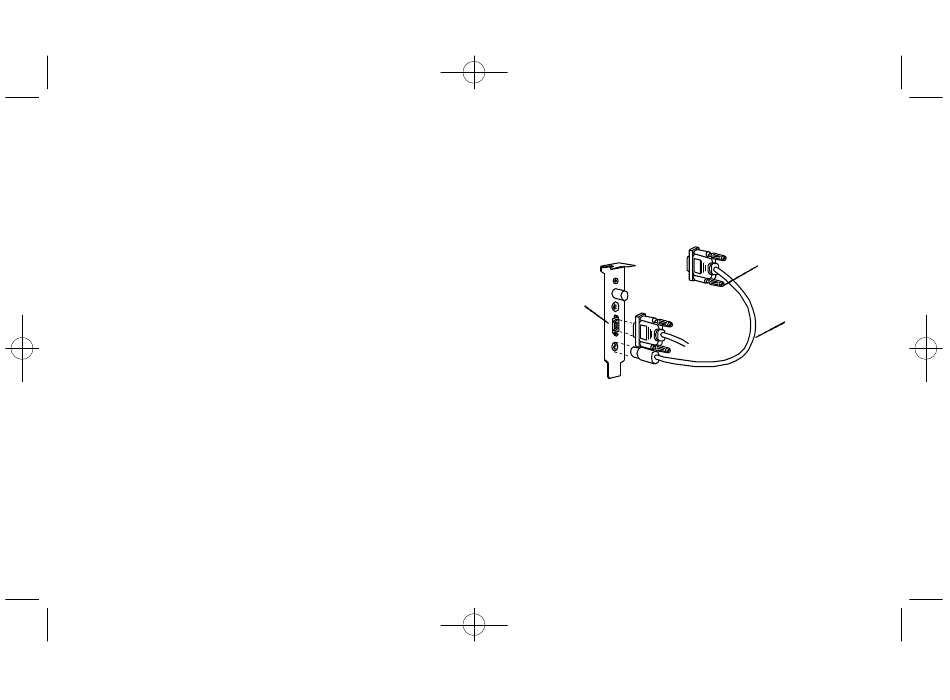

Figure 2. Video Connection
Connect to VGA
Card or PC Display
Output Port
External VGA
Pass Through Cable
