Connecting The Wires - Pivot THC-M User Manual

1

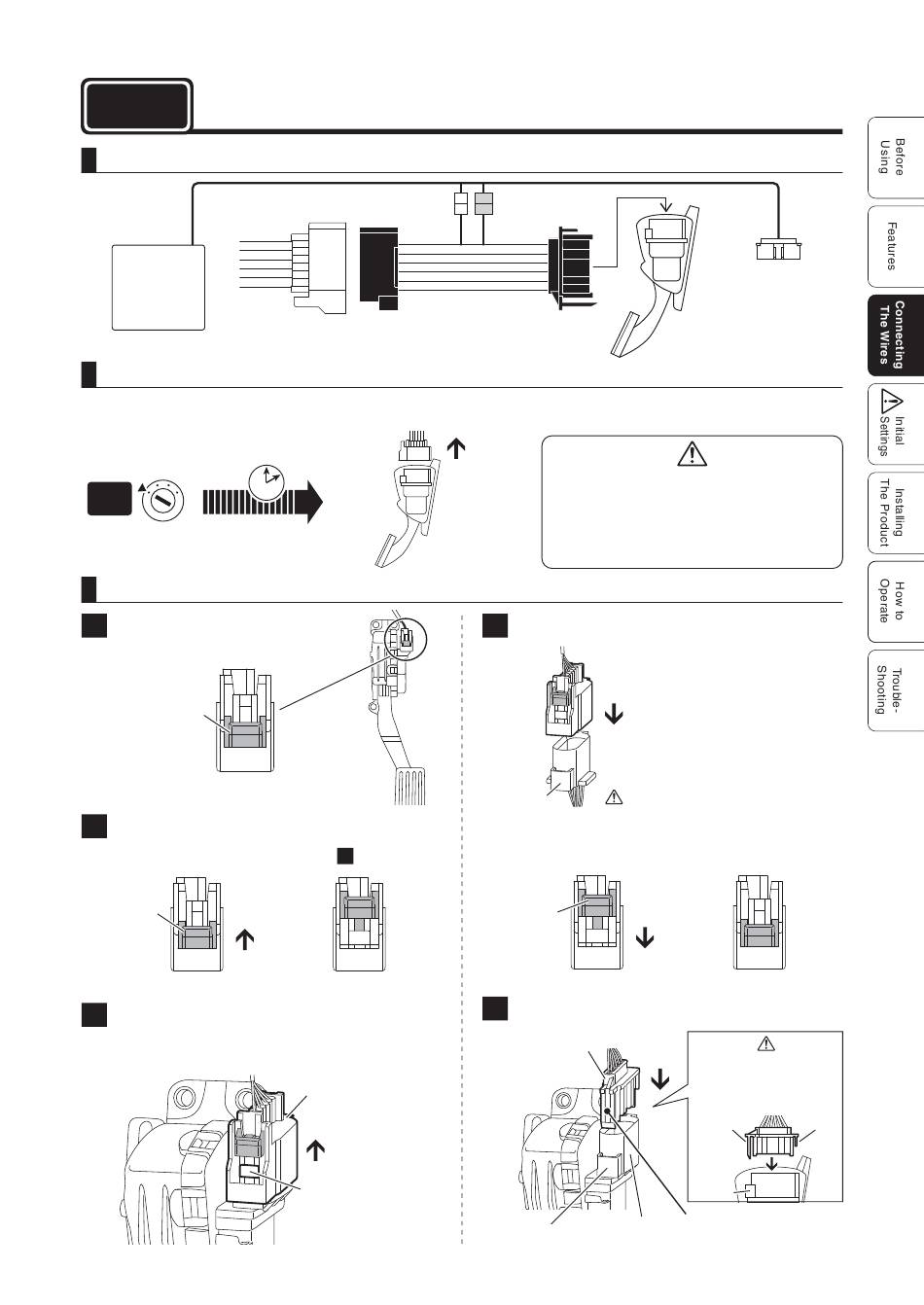

Connecting The Wires

procedure
Basic Wiring
Accelerator Connector
Main Unit
Important Notice about Removing Accelerator Connector
Only disconnect the accelerator connector after having waited at least 15 minutes from the time that the key was turned OFF.
Depending on the model of car, removing the connector immediately may cause the CHECK Lamp to come on.
15 minutes
Turn the key
to OFF
LOCK
（OFF）
Installing The Specialized Harness
1
Checking the Accelerator Connector.
Accelerator
Connector
Lock (Red)
2
If there is lock (Red) on the accelerator connector,
unlock as shown in the figure below.
※ If there is no lock, move to step
Lock
(Red)
Locked
3
While pressing down on the catch as shown in the
diagram below, pull to remove the accelerator
connector.
※Even if there is no lock remove in the same manner.
When installing make sure to use the specialized harness (included).
2P
Connector
(Male)
Specific Harness
Accelerator
Connector
Accelerator
Pedal
3
.
Slide
about
1 cm
Unlocked
Accelerator Connector
While pressing
this catch disconnect
the connector.
4P
Connector
Special Model
(Female)
Disconnect
●If for some reason the CHECK Lamp does come
the connector
on, please see "How to Turn Off the CHECK
Lamp" on Page 8.
Accelerator
●Using a harness other than the one which is
supplied with this product may cause malfunction
or damage; use only the supplied harness.
4
Insert the disconnected accelerator connector
into the specialized harness (Male end).
Accelerator Connector
Specialized Harness (Male end)
Salient
※If there is a lock (Red), after inserting, make sure
to re-lock the unit by sliding the lock back into
the locked position.
Lock
(Red)
Unlocked
5
Insert the specialized harness (Female end) into
the car side of the accelerator connector.
Specialized
Harness
(Female end)
Salient Connector of
Accelerator part
OBD2 Connector
Connect to Power
(⇒Page 4)
Accelerator
Insert until you
hear a "click"
Be careful that the harness is in the
correct direction.
Slide
about
1 cm
Locked
Insert
Be careful that the harness
is in the correct direction.
▼Figure as seen from
the side
Long Short
Salient
※Press and hold this catch
to disconnect the special-
ized harness.
3
