Signal light

The red light on the front of the CT1 signals the following conditions:
•
A light briefly flashing every second indicates that there is power supply voltage present and that the service is
free and ready to be used.
• 5 fast flashes indicate that the coin has been accepted.
A slow flashing light indicates that the delay of service is being counted (chapter 4.4).
•
A constantly lit light indicates the service is in use.
•
1) DIP-Switches
for time of service (TIME)
2) DIP-Switches
for delay of service (DELAY)
3) LOAD ON/OFF button

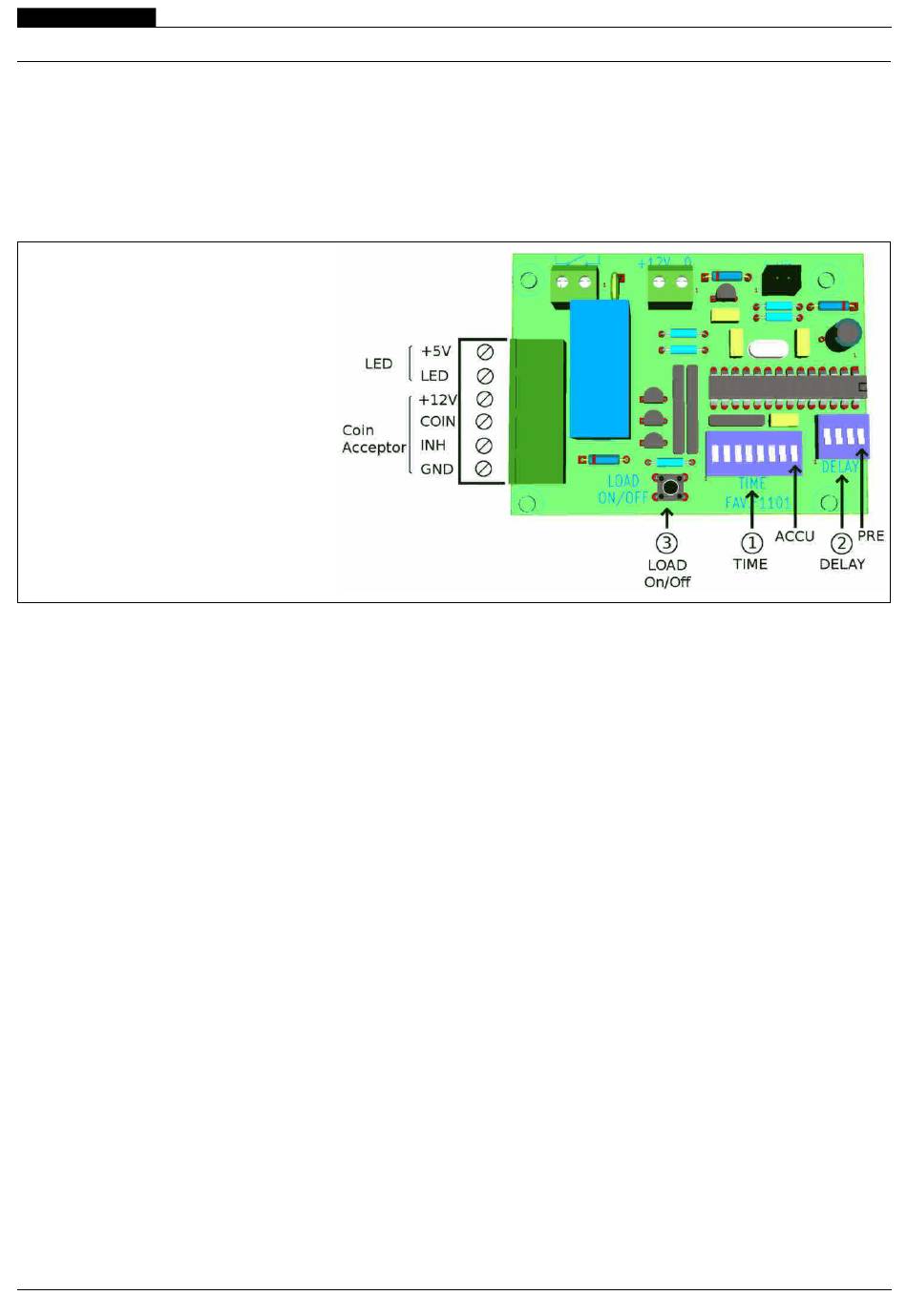

Fig 5: Electronic board.
