THE BASICS

• connect displays to the WatcHPaX 40 using the displayPort outputs and adapters.
• connect the WatcHPaX 40 to the network using the ethernet port.
• Power up the WatcHPaX 40
• start WatcHOut software on the production computer which is on the same network. Make sure
you are using WatcHOut version 6.4 or higher.

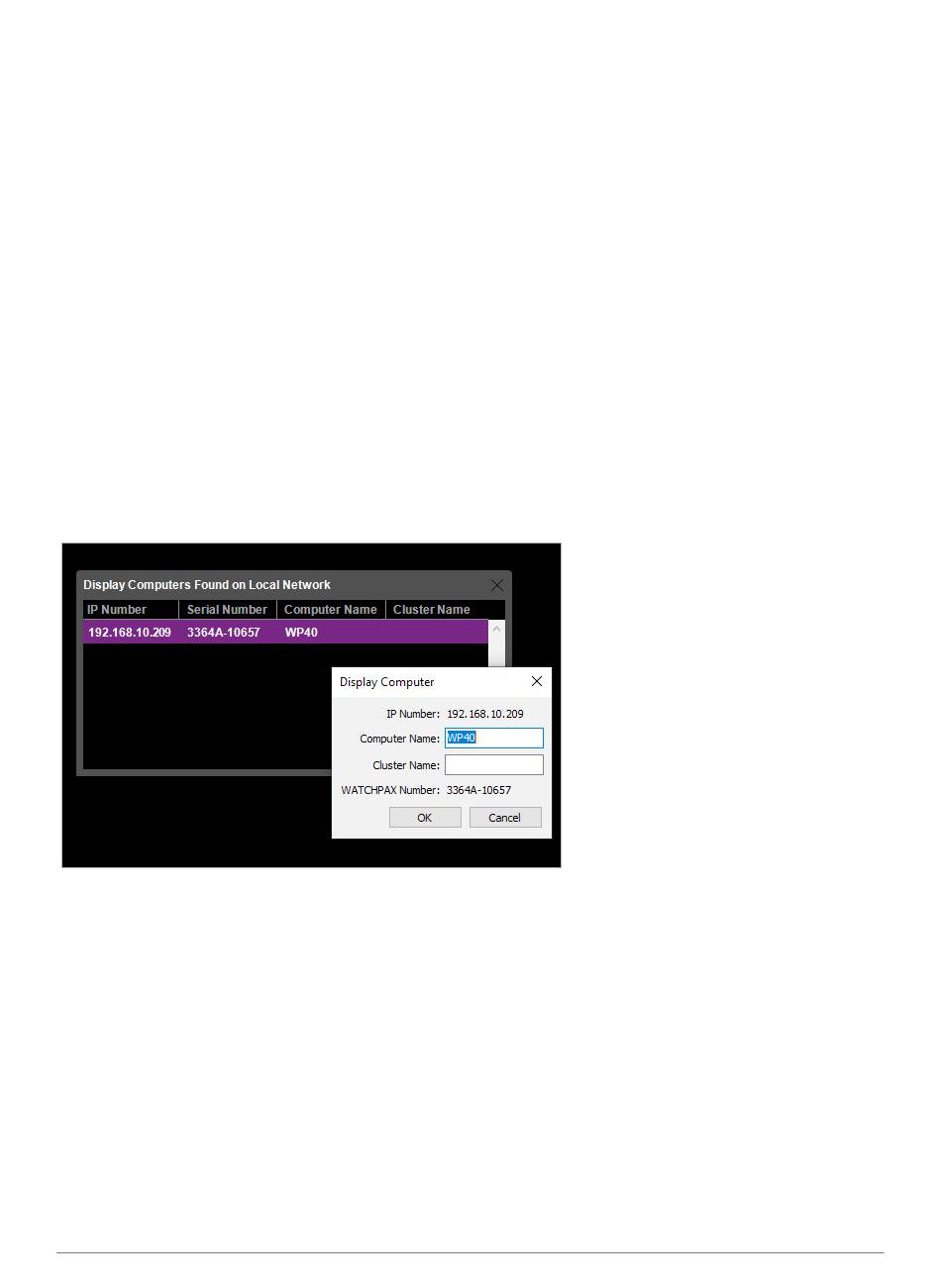

• the WatcHPaX and any WatcHOut display computers on the local network will be listed in
Window > Network. Assign display and cluster names (if required) by double-clicking an item in the
list, see screenshot.

MANAGE NETWORK SETTINGS

WatcHPaX automatically retrieves an iP address via a dHcP server. if no dHcP server is available,
the WatcHPaX will get a self-assigned iP address in the range 169.254.x.y
if you are using a control system, you may want to use a fixed iP address for WatcHPaX. still in
WatcHOut, assign a fixed iP through the WatcHOut protocol command "setiP" in the startup script
as shown below:
authenticate 2
setIP 192.168.0.32
Make sure you choose an iP address in the correct subnet range. to remove the fixed iP number, use
the same command but with an empty string parameter, as below:
authenticate 2
setIP

Quickstart guide

3. QUICKSTART GUIDE
(see "Power On").
WATCHPAX 40 on the network
14
