AMF112
(6904-002010 <00>)
Concrete
Wood
13mm
5.5mm
10mm
(1/2 in.)
(7/32 in.)
(3/8 in.)
Sanus Systems
2221 Hwy 36 West
Saint Paul, MN 55113 USA
Customer Service
Americas: 800-359-5520 • 651-484-7988 • info@sanus.com
Europe, Middle East, and Africa: + 31 40 2324700 • europe.sanus@milestone.com
Asia Pacifi c: 86 755 8996 9226 • sanus.ap@milestone.com
accents.sanus.com
©2010 Milestone AV Technologies, a Duchossois Group Company.
All rights reserved. Accents is a Milestone brand.
All other brand names or marks are used for identifi cation purposes and are trademarks of their respective owners.

Advertisement

loading

Related Manuals for sanus accents AMF112

Summary of Contents for sanus accents AMF112

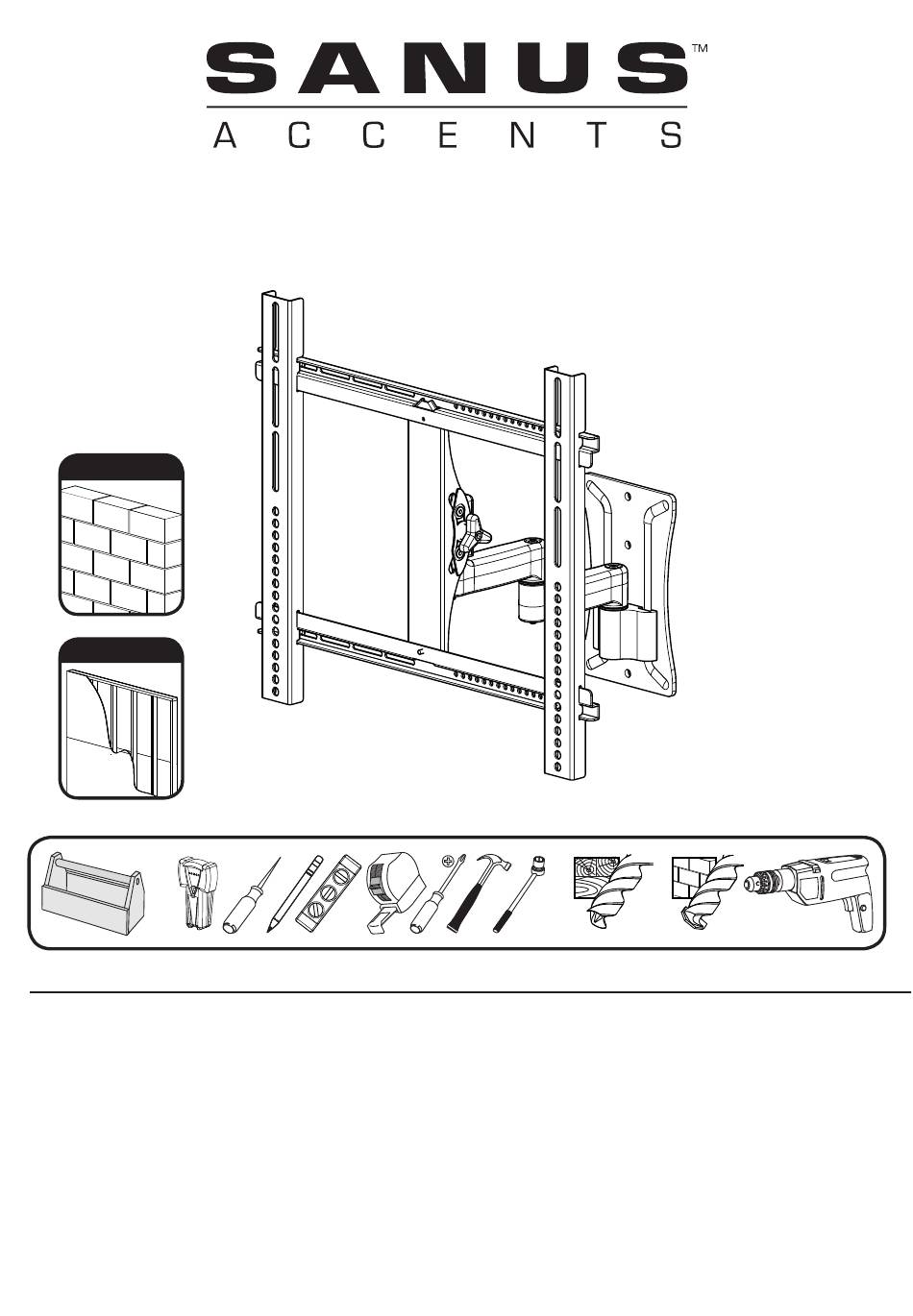

  • Page 1 AMF112 (6904-002010 <00>) Concrete Wood 13mm 5.5mm 10mm (1/2 in.) (7/32 in.) (3/8 in.) Sanus Systems 2221 Hwy 36 West Saint Paul, MN 55113 USA Customer Service Americas: 800-359-5520 • 651-484-7988 • info@sanus.com Europe, Middle East, and Africa: + 31 40 2324700 • europe.sanus@milestone.com Asia Pacifi...
  • Page 2 Concrete/Concrete Block WARNING This product contains small Wood stud walls Tools Required CAUTION/WARNING Walls items that could be a choking hazard Choose an Option Troubleshooting and Heavy! Assistance Required. Maintenance CAUTION: IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT Specifi cations: ...
  • Page 3 Supplied Parts and Hardware. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used. [04] x 1 [01] x 1 [05] x 1...
  • Page 4 CAUTION: Install TV Brackets Before you begin, hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M6, or M8). Verify that there are adequate threads to secure the brackets to the monitor. If you encounter resistance, stop immediately and contact customer service. CAUTION: Avoid potential personal injuries and property damage! Use the shortest screw and spacer combination to accommodate your needs.
  • Page 5 For TVs with a fl at/unobstructed back. Ensure that the bracket is level on the back of the TV. If you need extra space to accommodate cables, recesses, or protrusions, see an installation option (1-2) that uses spacers. [02] [03] [03] [02] [02]...
  • Page 6 For TVs with an irregular/obstructed back. Ensure that the brackets are level on the back of the TV. Standard confi gurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service. [02] [03] [03] [02] [02]...
  • Page 7 Slide the horizontal brackets [04] and [05] onto the vertical brackets [02] and [03]. Make sure that they are evenly spaced left to right. Install screws [22] to lock horizontal brackets [04] and [05] in position. [04] [03] [02] [05] [04] [04] [22]...
  • Page 8 CAUTION: Wall Mounting 2-1: Wood Stud Mounting CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage:  Pilot holes MUST be drilled to a depth of 75 mm (3 in.), using a 5.5 mm (7/32 in.) diameter drill bit. ...
  • Page 9 13mm 5.5mm (1/2 in.) (7/32 in.) Wood Stud Wall Mounting – See Cautions in Step 2. Locate studs. Verify the center of the stud with an awl or thin nail or < 16 mm use an edge to edge stud fi nder. (5/8 in.) Level the wall plate [01] and mark the hole locations.
  • Page 10 13mm 10mm (1/2 in.) (3/8 in.) Solid Concrete and Concrete Block Mounting – See Cautions in Step 2. Level wall plate and mark the hole locations. Drill pilot holes as illustrated. Insert lag bolt anchors [06]. 75 mm Tighten the lag bolts [08] only until the washers [07] are pulled fi rmly 3 in.
  • Page 11 CAUTION: HANG THE TV/BRACKET ASSEMBLY ONTO THE SWING ARM HEAVY! You will need assistance with this step. Level the TV/bracket assembly and install the washer [20] and retaining screw [21]. CAUTION: Avoid potential injuries or property damage! Be sure to install the washer [20] and retaining screw [21] securely. This will prevent the TV from separating away from the mount.

  • Page 12: Cable Management

    CABLE MANAGEMENT NOTE: Be sure to leave enough slack in the cables to allow the monitor to move freely. [01] [01] [01] 6904-002010 <00>...

  • Page 13: Maintenance

    MAINTENANCE: TENSION ADJUSTMENT Adjust arm extension and swivel tension. Adjust up/down tilt tension. NOTE: For clarity TV is not shown. [23] [24] 6904-002010 <00>...
  • Page 14 Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind.
