oventrop DynaTemp DDC CR-BX Operating Manual

EN
Before installing the control and regulation unit DDC "CR-
BS"/ "CR-BX"/ "CW-BS"; as well as its accessory compo-
nents, please read and follow the short operating instruc-
tions and the operating manual for the respective "Dy-
naTemp" system in full!
Installation, commissioning, operation and maintenance
must only be performed by trained and specialised staff in
compliance with applicable rules and regulations!
The short operating instructions, the operating manual as
well as all other valid documentation is to be forwarded to
the system operator!
Content
1 General information...........................................................1
2 Safety instructions .............................................................2
3 Transport, storage and packaging .....................................2
4 Technical specifications.....................................................2
5 Assembly and installation ..................................................3
6 System description ............................................................6
7 Operating program ............................................................6
8 Maintenance and servicing ................................................6
9 Declaration of conformity...................................................6
10 Warranty ...........................................................................6

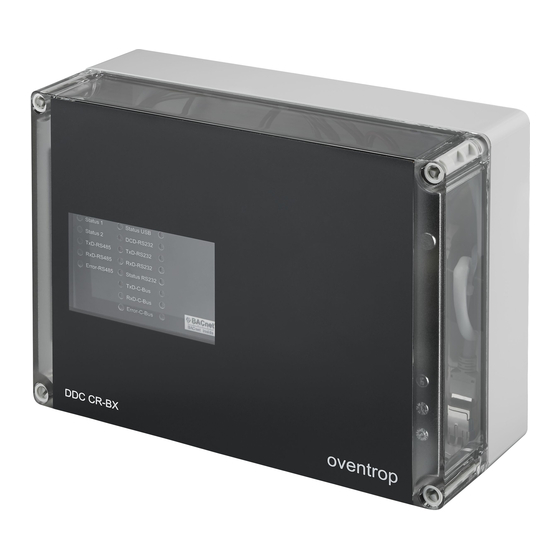

Fig. 1.1 Control and regulation unit (DDC)
OVENTROP GmbH & Co. KG
Paul-Oventrop-Straße 1
D-59939 Olsberg
Phone +49 (0) 29 62 82-0
Fax +49 (0) 29 62 82-400
E-mail mail@oventrop.de
Internet www.oventrop.com
For an overview of our global presence
visit www.oventrop.com.
Valves, controls and systems
Short operating instructions for first commissioning by the specialised installer
1

General information

1.1 Information about the short operating instructions
and the operating manual
These short operating instructions are to be used by the trained
and specialised staff to properly install, commission and config-
ure the control and regulation unit (DDC). For the configuration
and operation, the operating manual is to be downloaded and
possibly printed from the DCC as PDF document using an Inter-
net browser, e.g. "Mozilla Firefox" ("HELP/INFO - Documenta-
tion").
Additionally applicable documentation - instructions for all sys-
tem components as well as applicable technical rules - are to be
complied with.
1.2 Safekeeping of documentation
The short operating instructions and the operating manual are to
be kept in a safe place by the system operator for later use.
1.3 Symbol explanation
Safety guidelines are displayed by symbols. These guidelines
are to be observed to prevent accidents, damage to property
and malfunctions.
DANGER indicates a hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation
which, if not avoided, may result in minor or moderate injury.
NOTICE indicates a situation which, if not
addressed, may result in property damage.
1.4 Copyright
The short operating instructions and the operating manual are
protected by copyright.
Usage of the control and regulation unit is subject to a license.
The license text can be found on the DCC "HELP/INFO - Doc-
umentation" submenu. By using the product you agree to the
license agreement.
Subject to technical modification without notice.
"DynaTemp";
DDC "CR-BS"/ "CR-BX"/ "CW-BS"
115315081 05/2017
