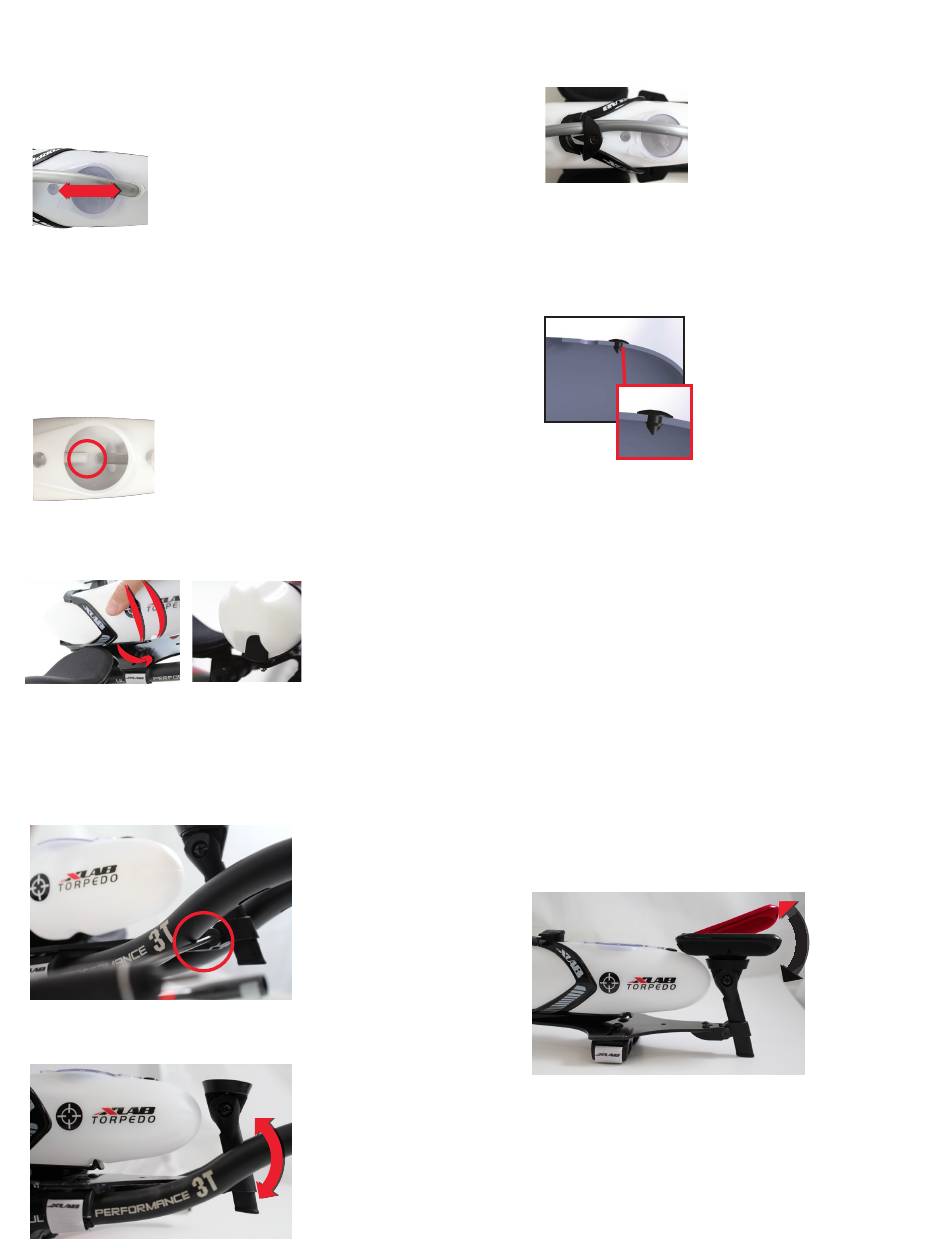

xLab TORPEDO VERSA 200 Instruction Sheet page 2

BOTTLE INSTALL
1. Select the appropriate straw hole. There are two straw holes on either side of
the lid for a more forward or rearward straw position. The plug will go in the
opposite hole of the straw and is pre-inserted in the rear straw hole. To
switch, push the plug in from the top and remove from the bottle. Insert the
plug in the new hole by pushing up from inside the bottle to seat it.
2. Trim the straw to the appropriate length for your use. Cut at an
angle to make it easier to install.
3. Insert the straw by pinching the end and pushing through the
appropriate hole. If using the solid lid, make sure the straw goes
through the tether hole in the lid.
4. At the bottom of the Torpedo bottle, there is a groove. Place the
straw in front of the groove to have the straw sit more horizontal;
place the straw behind to make the straw more vertical.
5. Place the bottle in the cage by rotating the bottle and pushing in. Once the
bottle is inserted, rotate the bottle back so the rear cage screw locks the bottle in
place. Make sure the rear tab of the cage slides into the rear bottle recess.
ADJUST VERSA COMPUTER
TOOLS REQUIRED
3mm Hex Wrench
Torque Wrench up to 25 in lbs (2.8 Nm)
1. Loosen the side screw at the base of the mount.
2. Adjust the computer mount to the correct height by moving the
post. The top can then be rotated to the preferred angle.
6. The pre-installed Dolphin Tail can be used to tuck the straw
underneath to keep it out of the way while riding.
7. There are two Dolphin Breather Valves included with the system.
Install one in the front hole on the top of the bottle by placing the
pointed end of the valve in the hole and pressing until it is fully
seated. Move the valve around as it is being pushed in to help
get the edges in place.
Inside of
Torpedo Bottle
3. Tighten the side screw to lock in place and torque to 25 in lbs
(2.8 Nm). The screw must be fully tightened for the computer
mount to stay in place.
4. Attach the computer and rotate as needed.
