AERODYNAMIC ACCESSORIES

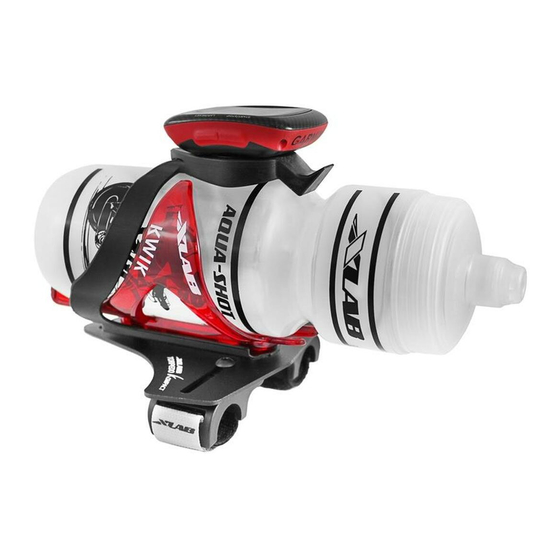

The TORPEDO KOMPACT comes pre-assembled in the packaging so the only step needed is to adjust the clamp width to t
your aerobars. The KOMPACT comes assembled for bar extensions 85mm - 150mm center-to-center.
For aerobar extensions between 70 and 84mm center-to-center, the rear cage position must be used. See section "Moving the Cage to
the Rear Position" below for those steps. The computer mount is already assembled for Garmin Edge series. For Garmin Multisport
watches see section 3.
IMPORTANT:
PLEASE COMPLETELY UNDERSTAND ALL USER INSTRUCTIONS AND SAFETY INFORMATION BEFORE USING THIS PRODUCT. AS WITH ANY HIGH TECH PRODUCT YOU
WILL NEED TO ROUTINELY CHECK FOR LOOSE HARDWARE, CRACKS OR OTHER DAMAGE AND REPLACE ITEMS AS NECESSARY.
DO NOT USE PRODUCT IF ANY OF THESE CONDITIONS EXIST.

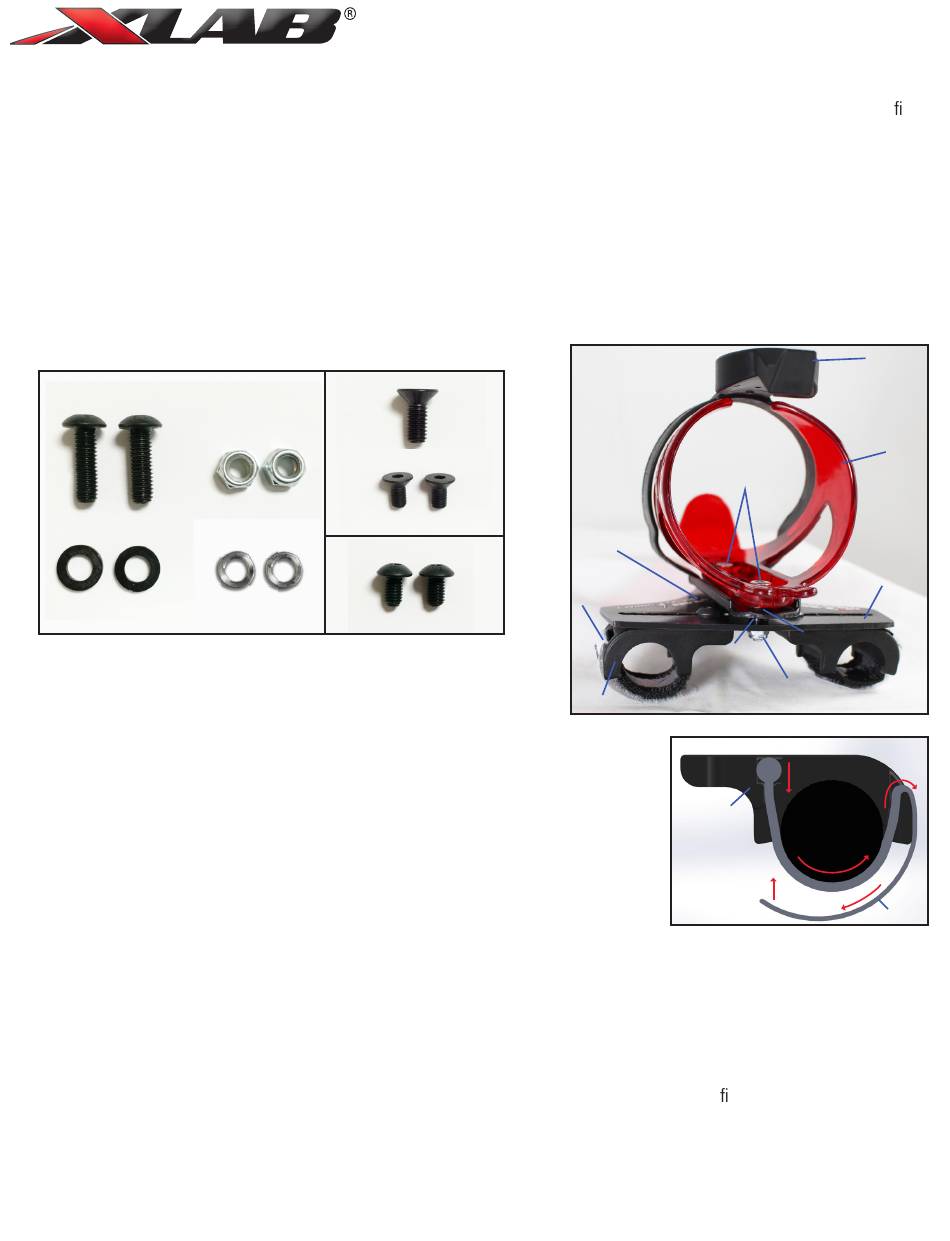

MOUNT CAGE TO FLAT PLATE
C
M5 x 18mm Button Head
D
Thin Black Spacer

1. TO MOUNT THE TORPEDO KOMPACT:

TOOL REQUIRED
3mm Hex L-Wrench
Torque Wrench up to 35 in lbs (4.0 Nm)
1. Remove Aqua-Shot bottle from the cage by pulling directly forward.
2. Undo the Velcro straps (A) on both mounting clamps.
3. Loosen the clamp mounting screws (B) using the 3mm Hex L-Wrench.
4. Mount the Torpedo Kompact on the aerobar extensions by pressing each of the
mounting clamps onto the extensions until they snap into place. There should be
an audible "click" when they snap on. The mount should be positioned as far back
on the aerobars as possible for optimal steering control. The TORPEDO KOMPACT
will also mount on aerobars that angle inwards as the clamps can rotate to accommodate
the angle.
5. Center the mount between the extensions and make sure the bottle is pointed directly forward from the bike.
6. Tighten the clamp mounting screws (B) to 35 in lbs (4.0 Nm) of torque.
7. Secure the Velcro straps (A) by routing underneath the extensions, up through the slot at the end of the clamp and back
down to attach the Velcro. Ensure the strap is tight enough so that the silicone underneath is rm against the extensions
(See 'Strap Routing Diagram'). Make sure to pull the strap as tight as you can so the mount doesn't move.
8. The mount is now secure and the bottle can be placed back in the cage.
Hardware
COMPUTER MOUNT
F
M4 x 10mm Flat Head
G
M5 Nylon Insert Lock Nut
M3 x 6mm Flat Head
E
MOUNT CLAMPS TO FLAT PLATE
B
Thick Silver Spacer
M5 x 8mm Button Head
TORPEDO KOMPACT
TORPEDO KOMPACT
B
A
Strap
Mounting Clamp
Clamp
Computer
Mount
Cage
C
Plate
D
Thin Black
Spacer
E
Thick Silver
F
Spacer
Strap Routing Diagram
Aerobar
Extension
Strap
