IMPORTANT:
PLEASE COMPLETELY UNDERSTAND ALL USER INSTRUCTIONS AND SAFETY INFORMATION BEFORE USING THIS PRODUCT. AS WITH ANY HIGH TECH PRODUCT YOU WILL NEED TO
ROUTINELY CHECK FOR LOOSE HARDWARE, CRACKS OR OTHER DAMAGE AND REPLACE ITEMS AS NECESSARY. DO NOT USE PRODUCT IF ANY OF THESE CONDITIONS EXIST.

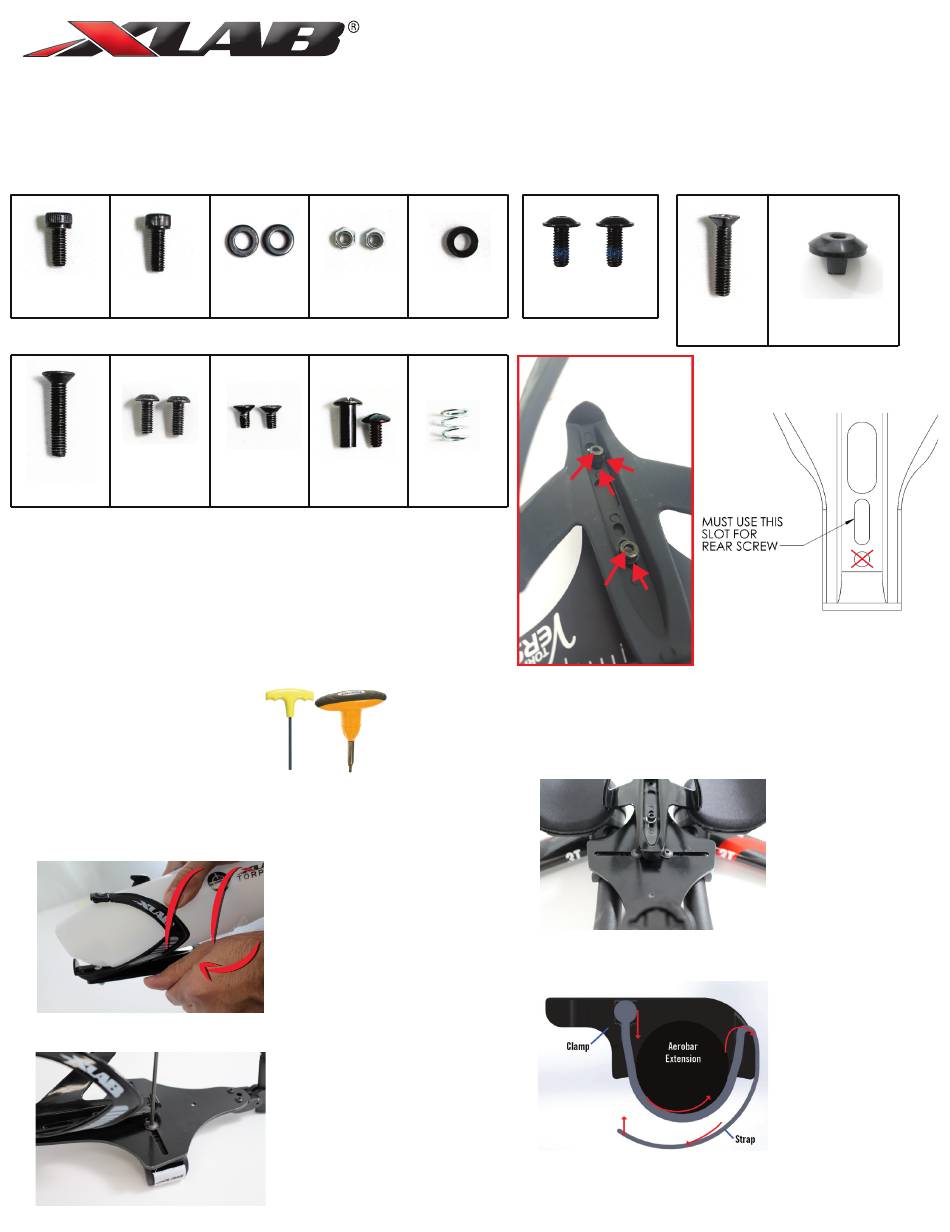

HARDWARE
CAGE MOUNTING
M5 x 12 mm
M5 x 16 mm
Socket Head
Socket Head
COMPUTER MOUNT
M4 x 10 mm
M5 x 25 mm
Button Head Screw
Flat Head Screw
(x2)
MOUNTING TO BIKE
TOOLS REQUIRED
3 mm Hex Wrench
Torque Wrench up to 4.0 Nm (35 in-lbs)
1. Rotate the top of the computer mount all the way forward to allow room for the bottle.
2. Remove the Torpedo Bottle from the cage by holding the mount and twisting the
bottle and pulling out.
3. Loosen the mounting clamp screws using the 3 mm Hex Wrench.
M5 Flat Washer
M5 Nylon Insert
(x2)
Lock Nut (x2)
M3 x 6 mm
Screw Post / Screw
Flat Head Screw
(x2)

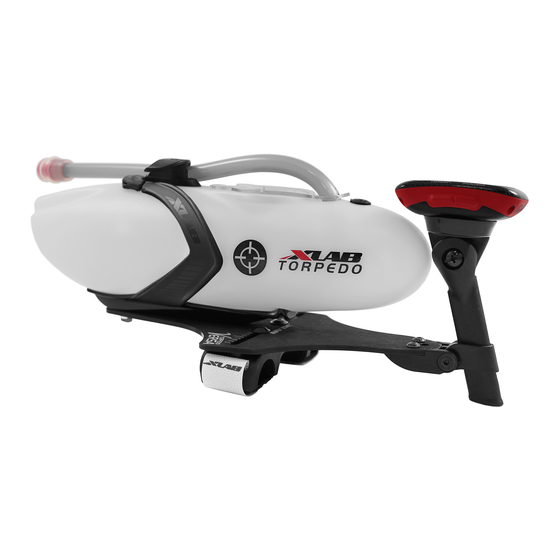

TORPEDO VERSA 200
TORPEDO VERSA 200
MOUNTING CLAMP
M5 Nylon Spacer
M5 x 12 mm Button Head
Flange Screw (x2)
CAGE HARDWARE
DIAGRAM
Spring
M5 x 16 mm
SOCKET HEAD
M5 x 12 mm
SOCKET HEAD
4. Place the mount on the aerobars by placing each of the mounting
clamps onto the extensions. Ensure the clamp is secure and
completely touching the extensions.
5. Center the mounting plate and hand tighten each of
the screws.
6. Secure the Velcro straps by routing them through the clamps.
Pull the straps as tight as possible and attach them in place.
7. Tighten both mounting clamp screws to 4.0 Nm (35 in-lbs).
BOTTLE
M4 x 20 mm
Dolphin Breather Valve
Flat Head Screw
REAR OF CAGE
M5 NYLON
SPACER
M5 FLAT
WASHER
M5 FLAT
WASHER
