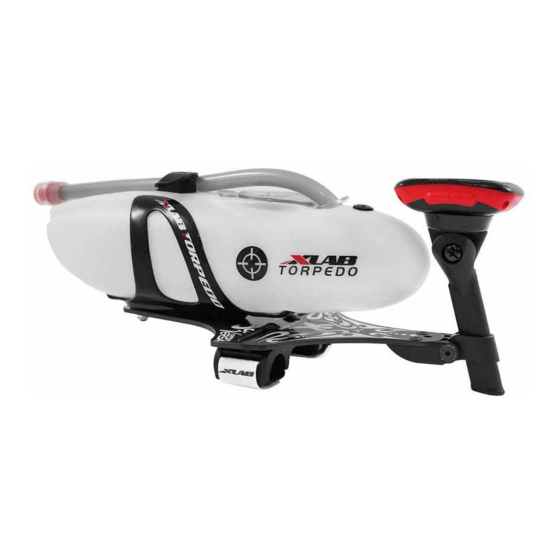

xLab TORPEDO VERSA 500 Instructions

IMPORTANT:

PLEASE COMPLETELY UNDERSTAND ALL USER INSTRUCTIONS AND SAFETY INFORMATION BEFORE USING THIS PRODUCT. AS WITH ANY HIGH TECH PRODUCT YOU WILL NEED TO
ROUTINELY CHECK FOR LOOSE HARDWARE, CRACKS OR OTHER DAMAGE AND REPLACE ITEMS AS NECESSARY. DO NOT USE PRODUCT IF ANY OF THESE CONDITIONS EXIST.

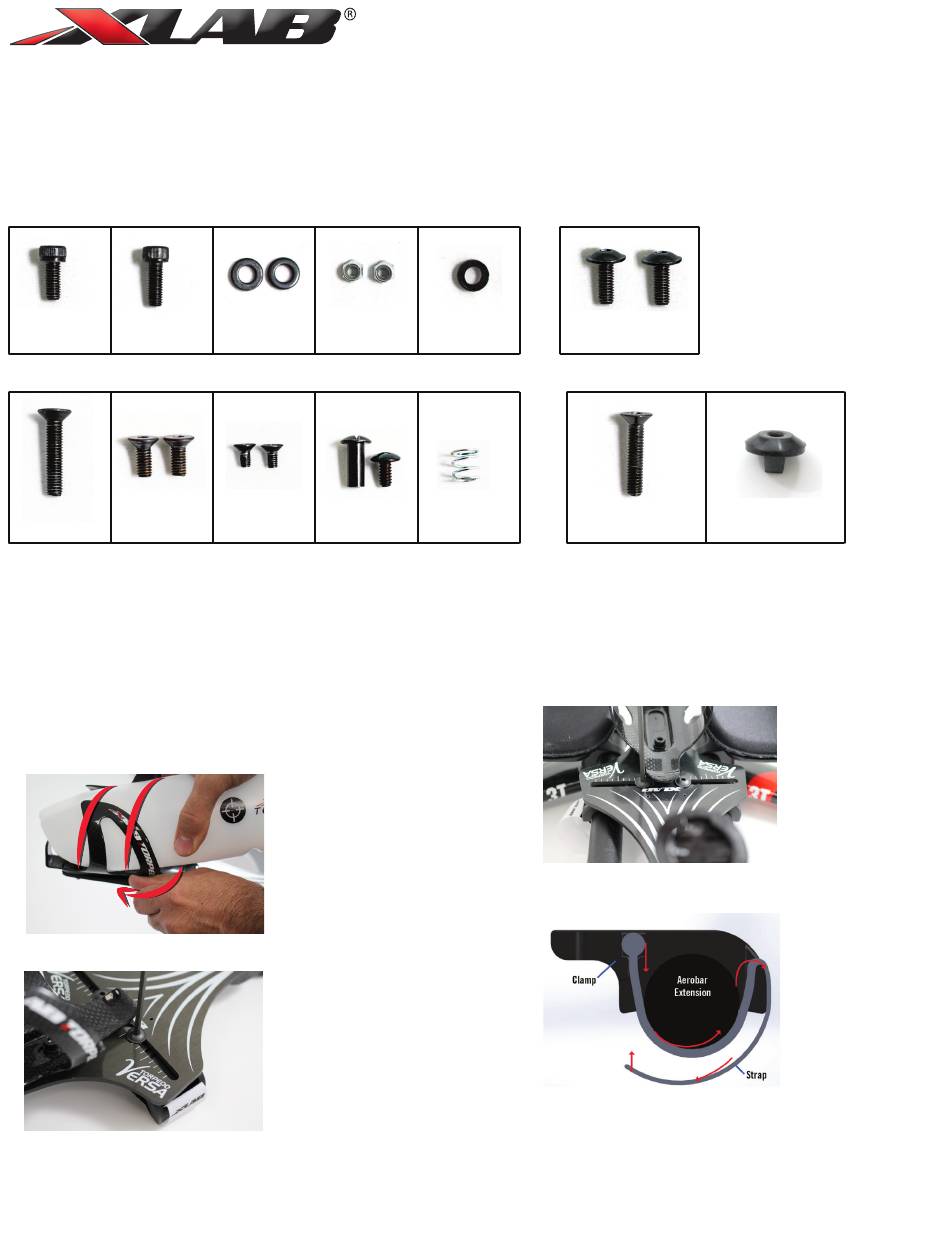

HARDWARE

CAGE MOUNTING
M5 x 12mm M5 x 14mm
Socket Head Socket Head
COMPUTER MOUNT
M5 x 25mm M4 x 10mm
Flat Head Screw Flat Head Screw (x2)

MOUNTING TO BIKE

TOOLS REQUIRED
3mm Hex Wrench
Torque Wrench up to 35 in lbs (4.0 Nm)
1. Rotate the top of the computer mount all the way forward to allow room for the bottle.
2. Remove the Torpedo Bottle from the cage by holding the mount and twisting the
bottle and pulling out.
3. Loosen the mounting clamp screws using the 3mm Hex Wrench.
M5 Flat Washer M5 Nylon Insert
(x2) Lock Nut (x2)
M3 x 6mm Screw Post / Screw
Flat Head Screw (x2)
TORPEDO VERSA 500
TORPEDO VERSA 500
MOUNTING CLAMP
M5 Nylon Washer
M5 x 12mm Button Head
Flange Screw (x2)
BOTTLE
Spring
Flat Head Screw
4. Place the mount on the aerobars by placing each of the mounting
clamps onto the extensions. Ensure the clamp is secure and
completely touching the extensions.
5. Center the mounting plate and hand tighten each of
the screws.
6. Secure the Velcro straps by routing them through the clamps.
Pull the straps as tight as possible and attach them in place.
7. Tighten both mounting clamp screws to 35 in lbs (4.0 Nm).
M4 x 20mm Dolphin Breather Valve
