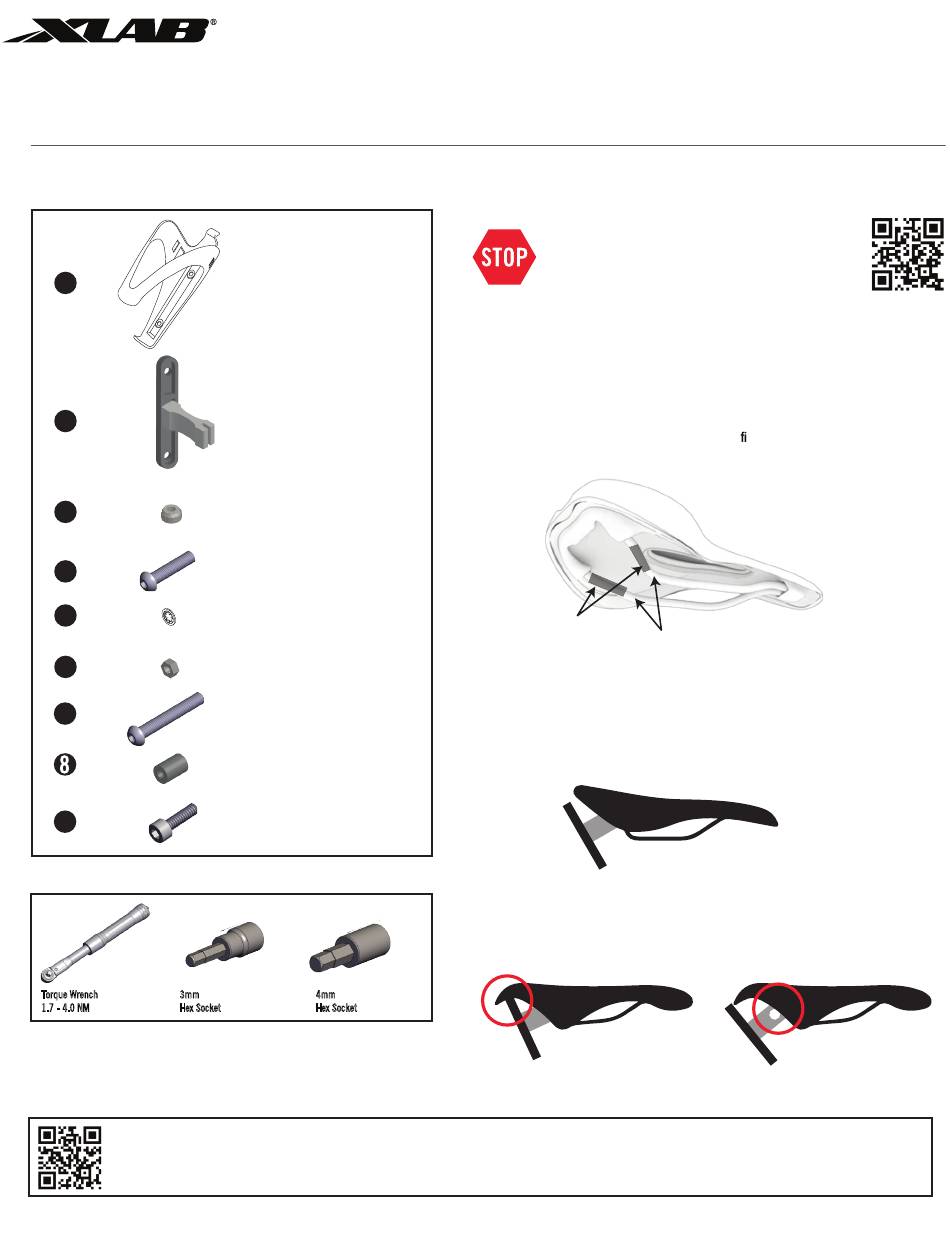

xLab MINI WING 105 Instructions

IMPORTANT:
PLEASE COMPLETELY UNDERSTAND ALL USER INSTRUCTIONS AND SAFETY INFORMATION BEFORE USING THIS PRODUCT. AS WITH ANY HIGH TECH PRODUCT YOU WILL NEED TO
ROUTINELY CHECK FOR LOOSE HARDWARE, CRACKS OR OTHER DAMAGE AND REPLACE ITEMS AS NECESSARY. DO NOT USE PRODUCT IF ANY OF THESE CONDITIONS EXIST.
PARTS INCLUDED
1
2
3
4
5
6
7
9
TOOLS REQUIRED
Torque Wrench 3mm
1.7 - 4.0 NM Hex Socket
SCAN QR CODE FOR MORE INFORMATION ON THE
MINI WING 105
XENON Cage x2
Saddle Rail Mounts x2
Bevelled Washers x2
m5x18 Button Head Bolt x4
m5 Internal Tooth Washer x4
m5 Hex Nut x4
m5x25 Button Head Bolt x4
Nylon Spacers x4
m5 Rail Bolt
4mm
Hex Socket
MINI WING 105 INSTRUCTIONS
COMPATIBILITY
BEFORE CONTINUING, PLEASE SCAN QR CODE TO CONFIRM
SYSTEM COMPATIBILITY WITH YOUR SADDLE. IF YOU DON'T
SEE YOUR SADDLE LISTED STOP INSTALLATION PROCESS. NEW
SADDLES ARE CONSTANTLY BEING ADDED. PLEASE CALL US AT
760-735-3215 (8:30am - 4:30pm PST M-F) FOR INSTALLATION
RECOMMENDATIONS.
INSTALLATION
STEP 1: TEST FIT THE SADDLE RAIL MOUNT TO SADDLE
IMPORTANT: The Mini Wing 105 mounts onto the vertical rail section of your saddle. Avoid
positioning on the rail corner as the system will not t properly and may cause
system movement and bottle ejection.
Vertical Rail
Section
Rail Corner
Place the saddle rail mount against the saddle rail in the position you wish
to use.
If your setup looks like the image below - use Option 1: Standard Fit.
If your setup looks like either of the images below, the mount touches the back
of the saddle or the cage (once installed) will touch the saddle - use
Option 2: Extended Fit.
www.xlab-usa.com
page 1
