Electric Wiring; Important Warning - TRP COMPACT N&D Mounting Instructions

COMPACT N&D
EN
Take care not to invert polarities when connecting the unit to the power supply. If this were to happen, the
unit will not work and irreparable damage will be caused to the compressor modules.
Centrifugal
blower
wiring communication
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
Compressor

IMPORTANT WARNING!

Electronic
board
Battery
16

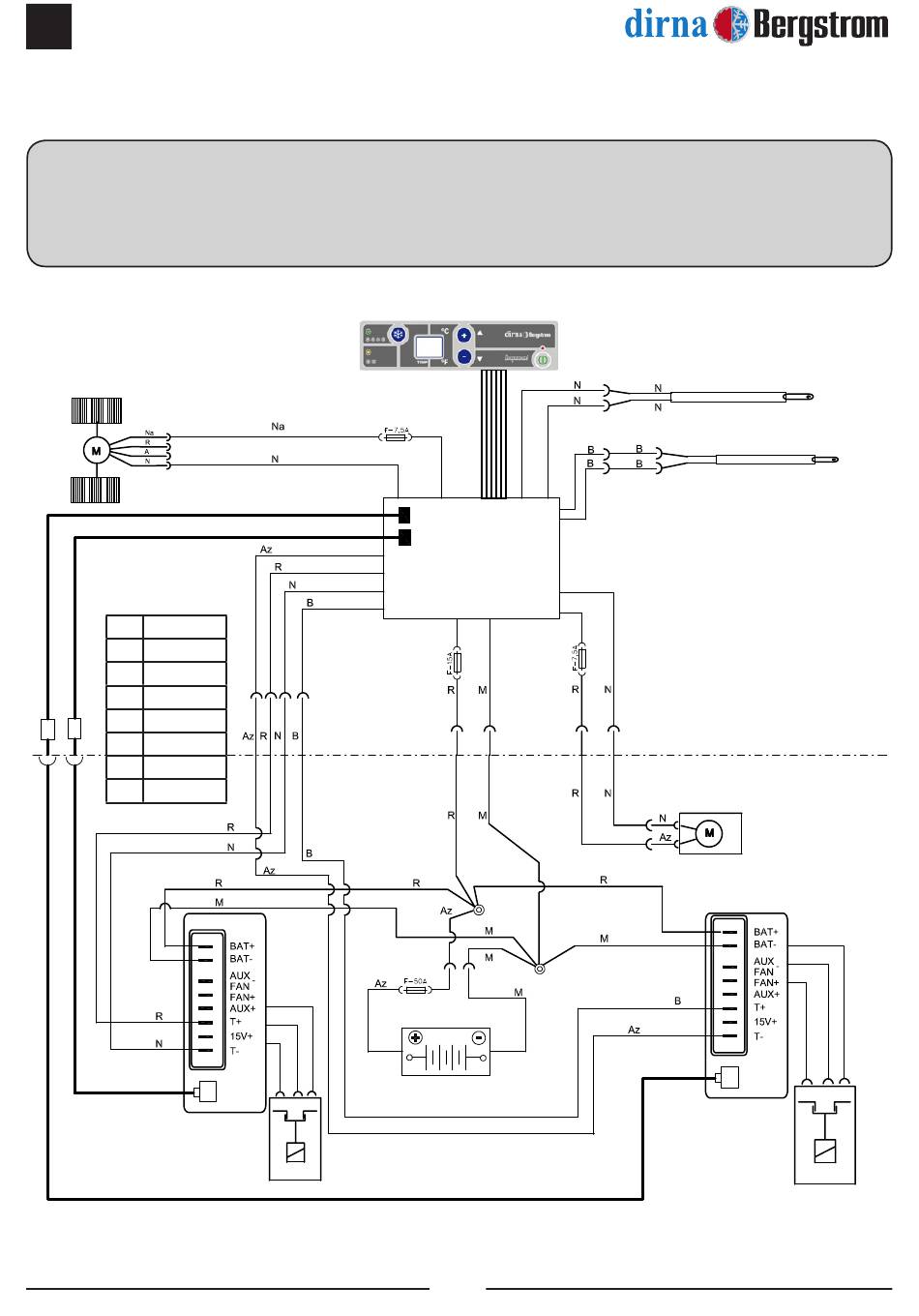

Electric wiring

Return
air sensor
Anti-freeze
sensor
Condenser
fan
Compressor
electronic
module
Compressor
®
