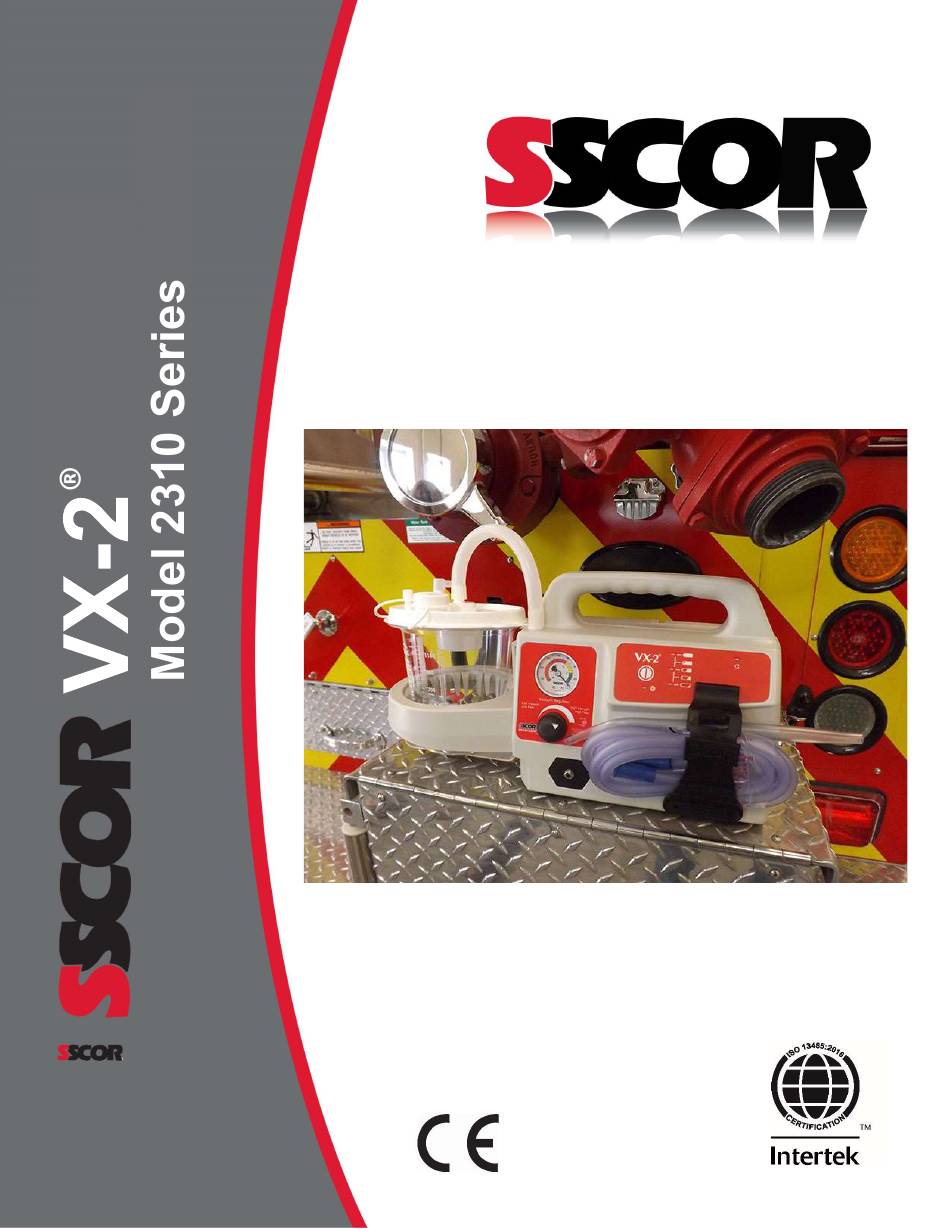

Page 1: Operating Instructions
Clearing The Airway Is Our #1 Priority Operating Instructions & Maintenance Manual , INC. 11064 Randall Street Sun Valley, CA 91352 USA www.sscor.com shop.sscor.com 0413 Tel 1+818-504-4054 Email: marketing@sscor.com techsupport@sscor.com... -
Page 2: Caution-Notice
It is recommended that the user test SSCOR aspirators in conjunction with other devices that may be in operation at the time of use. SSCOR aspirators have very low RF emissions and are not likely to cause interference in nearby electronic equipment. SSCOR also recommends the other devices in the environment at the time of use also meet IEC 60601EMC/RF requirements. -
Page 3: Table Of Contents
SSCOR VX-2® with Charging / Retention Bracket Battery Replacement Policy If the SSCOR VX-2 is purchased with the Charging / Retention Bracket, SSCOR will replace the battery if the battery fails to operate the pump to specifications for a period of three years from the date of purchase. Verify the condition of the battery per the battery test on Page 6 in this Operations Manual. -
Page 4: Description Of Symbols
Serialized Label Operating Temperature Range The degree of protection provided by the chassis Serialized Label according to IP34 Front of Device Suction Control Panel Pump is On Control Panel Power Source Connected __________________________________________________________________________________________________ SSCOR VX-2 - Model 2310 Series Rev. X... -
Page 5: Getting Acquainted
DC Battery Charging from AC Power Using AC-DC Converter The 80521-100 AC Converter will not run the pump. If battery charging from AC power is required, connect the SSCOR AC- DC converter (1) to an AC outlet. The converter connects to the unit through the receptacle (1A) on the front panel. Do not attempt to run the pump with the AC converter attached to the pump. -
Page 6: Battery Test & Trouble Shooting
6. If the unit is still running at full power after 15 minutes, adjust the regulator to the desired setting, turn the device off and put it back on charge. SSCOR recommends replacement of the battery after 3 years. Replacement battery may be purchased at shop.sscor.com. -
Page 7: General Specification
Exceeds 525mmHg Variable Regulator (7) Controls negative pressure Regulator Gauge (8) Calibrated in mmHg. Color-coded Power Source: Rechargeable Sealed Lead Acid. SSCOR part # 80635 Battery (DC Power) Switch (5) Off/Standby/On membrane switch Collection Canister (13) 1200cc/ml SSCOR part #48041 Vinyl tubing 9/32”ID x 72”L... -
Page 8: Internal Access For Electrical And Pneumatics
(H) Battery Bracket (I) Battery, 12V, Sealed Lead Acid (J) Wiring connection to the control panel (K) Vacuum pump. Return to SSCOR or authorized service center for service. Do not attempt to service the vacuum pump. (L) Exhaust barb (M) Vacuum barb... -
Page 9: Maintenance, Sanitation And Disinfection Instructions
Preventive Care Observe the following maintenance routine to ensure readiness at any time: 1. When the SSCOR aspirator is not in use, keep batteries on continuous charge. 2. Test the SSCOR aspirator at regular intervals; See page 6. 3. Make sure the SSCOR aspirator is always clean and ready for use. -
Page 10: Retention Bracket Mounting Instructions
Retention Bracket Mounting Instructions The Model 8310 Charging/Retention bracket can be mounted by the base or mounted vertically in order to hold the SSCOR VX-2 portable suction unit. Mount the retention bracket to a suitable safe mounting surface so the indicator lights on the control panel are visible to the user.
