, INC.
11064 Randall Street
Sun Valley, CA 91352 USA
www.sscor.com
shop.sscor.com
Email: marketing@sscor.com
techsupport@sscor.com
Clearing The Airway Is Our #1 Priority
The world's 1st and only full size portable suction
device powered by ALKALINE BATTERIES.
Operating Instructions
& Maintenance Manual
Tel 1+818-504-4054
Tel 1+800-434-5211
Fax 1+818-504-6032
Advertisement
Table of Contents
Related Manuals for SSCOR DCell Suction
Summary of Contents for SSCOR DCell Suction

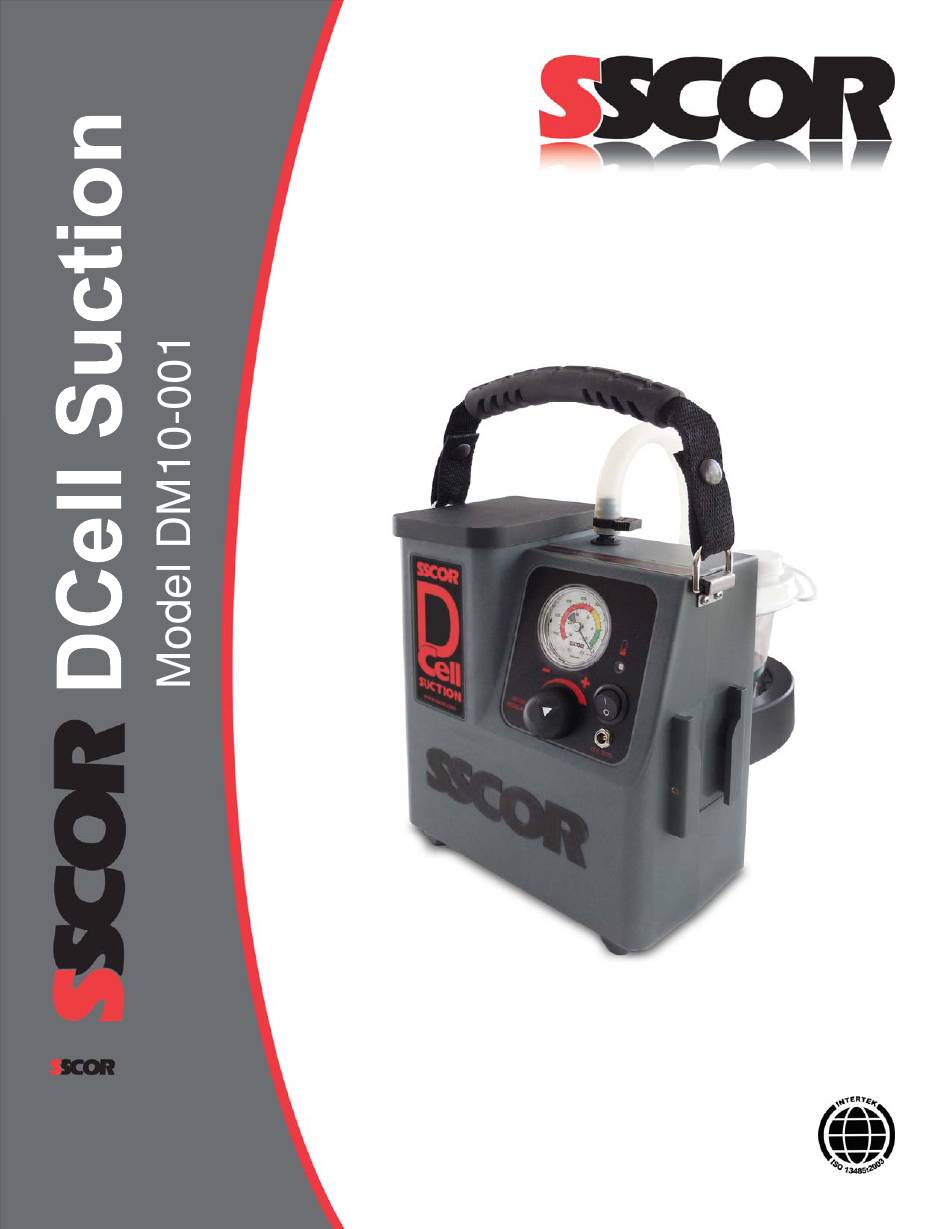

- Page 1 Operating Instructions & Maintenance Manual The world’s 1st and only full size portable suction device powered by ALKALINE BATTERIES. , INC. 11064 Randall Street Sun Valley, CA 91352 USA Tel 1+818-504-4054 www.sscor.com Tel 1+800-434-5211 shop.sscor.com Fax 1+818-504-6032 Email: marketing@sscor.com techsupport@sscor.com...
-
Page 2: Caution Notice
20. When using the SSCOR DCell Suction Device, 8. Do not store batteries in the SSCOR DCell Suc- ensure that the canister is in an upright position. tion device if it is not expected to be used for sev- 21. -
Page 3: Table Of Contents
See page 5 for instructions on battery replacement. For replacement parts and accessories, please visit shop.sscor.com. The SSCOR DCell Suction device is designed for hospital crash carts, patient transport and emergency medical service. Suction power can be regulated when full power may be considered harmful to the pa- tient. -
Page 4: Description Of Symbols
Attention—Consult Accompanying Documents Shipping Carton Authorized Representative in the European Community Shipping Carton Date of Manufacture Shipping Carton Manufacturer Shipping Carton Transport Storage Range Shipping Carton Humidity Shipping Carton Atmospheric Pressure SSCOR DCell Suction – Model DM10-001 Rev. D (02/17) -
Page 5: Operating Instructions
Do not lift the battery holder by the exposed wires, use the fabric pull tab to lift the 12xD Cell battery holder out of the chassis. Replacement battery holder may be purchased at shop.sscor.com. SSCOR DCell Suction – Model DM10-001 Rev. D (02/17) -
Page 6: Operating Instructions
300mmHg in 3 seconds and reach 525mmHg. Observe the battery condition indicator . If it lights red, it is time to install 12 fresh D Cell batteries into the SSCOR DCell Suction battery holder. Dispose of the batteries according to local /regional / national requirements for the disposal of electronic waste. -
Page 7: Trouble Shooting
No suction when pump is Vacuum line is disconnected Re-connect vacuum line running Canister Defective Replace canister Canister lid loose Tighten canister lid Catheter thumb vent is open Occlude thumb vent Defective pump(s) Replace pump(s) SSCOR DCell Suction – Model DM10-001 Rev. D (02/17) -
Page 8: General Specifications
UL Listed and CSA Certified Type (1¼ x ¼) Collection Canister 1200cc/ml SSCOR Part #48041 Patient Tubing Vinyl tubing 9/32” ID, 72”L SSCOR Part #43200 HI-D® “Big Stick®“ Large Bore Suction Tip with thumb control. Suction Tip SSCOR Part #44241... -
Page 9: Maintenance
Preventive Care Observe the following maintenance routine to ensure readiness at any time: 1. Do not store batteries in the SSCOR DCell Suction device if it is not expected to be used for several months. 2. Test the SSCOR aspirator at regular intervals; See page 6. -
Page 10: Internal Access
IF YOU ARE NOT A BIOMEDICAL TECHNICIAN. NO MODIFICATION OF THE EQUIPMENT IS ALLOWED. UNAUTHORIZED SERVICE ATTEMPTS, OPENING OR TAMPERING WITH THE COMPONENTS OF THE SSCOR DCELL SUCTION™ CAN DAMAGE OR DISABLE THE DEVICE, AND WILL VOID THE WARRANTY To open the device, first remove the 5 screws around the perimeter of the back chassis.
