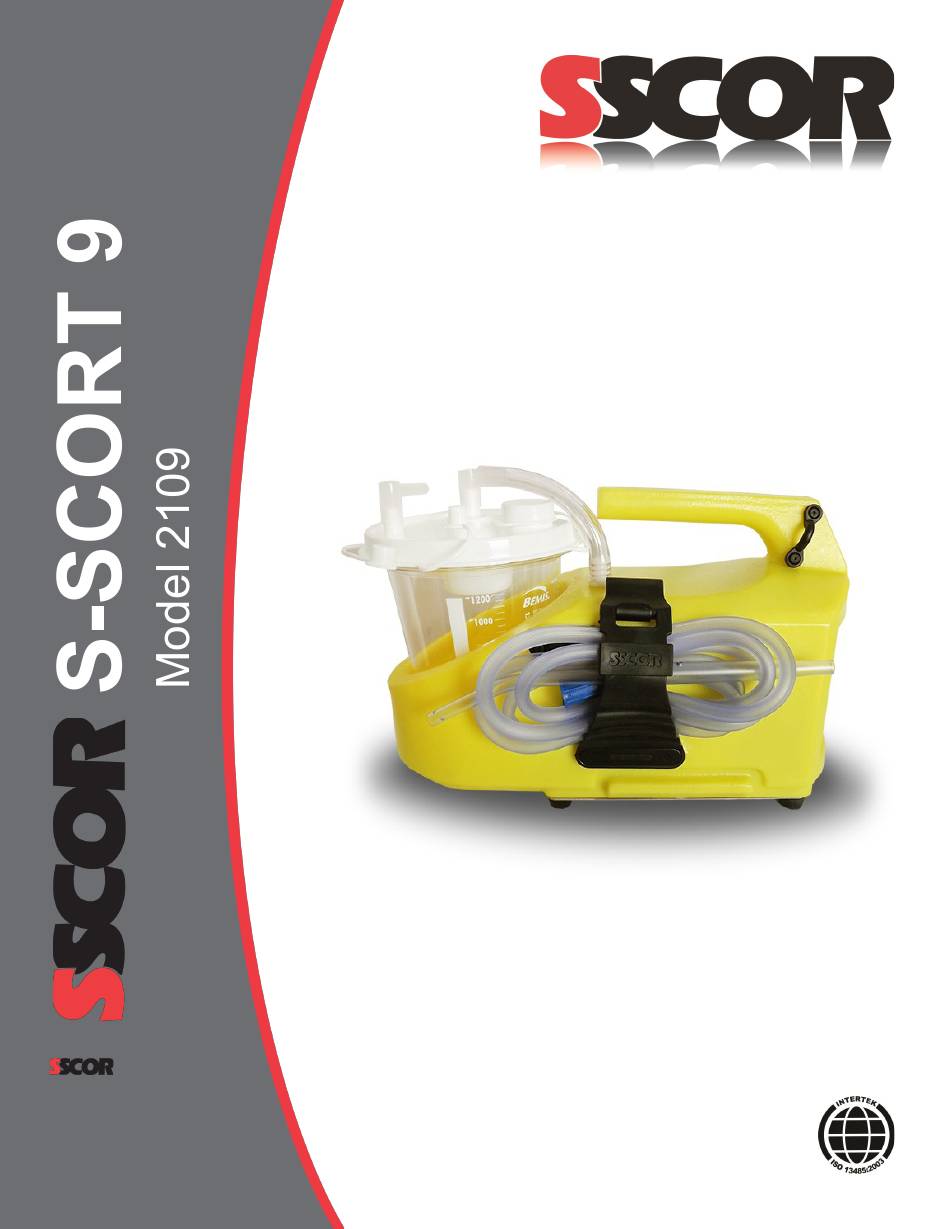

- Page 1 Clearing The Airway Is Our #1 Priority Operating Instructions & Maintenance Manual , INC. 11064 Randall Street Sun Valley, CA 91352 USA Tel 1+818-504-4054 www.sscor.com Tel 1+800-434-5211 Email: marketing@sscor.com techsupport@sscor.com...
-
Page 2: Caution-Notice
Disconnect only for portable use. Check the condition of the battery frequently , see the battery test on page 6. SSCOR’s AC-DC charger only charges the battery, it will not power the suction device. The suction device will run on vehicle power when the unit is connected directly to the vehicle battery via the DC power cord. -
Page 3: Table Of Contents
The Model 2109 is powered by sealed lead acid batteries, capable of driving the unit for 30 - 45 minutes. The batteries are recharged by direct connection to the vehicle, or by a 115V AC to 13.8V DC fixed voltage charger (included with the unit). -
Page 4: Important Features Pages
Clearing The Airway Is Our #1 Priority Important Features S-SCORT 9 - Model 2109 (10/15) - Page 5 Holds Battery in Place Batttery Ties / Velcro Straps Secures Battery Battery Charger Charges Battery after each use 12V DC Electrical Plug Connects Charging Source to Suction device DC Power Cord Connects Suction Unit to Vehicle S-SCORT 9 - Model 2109 (10/15)
-
Page 6: Operating Instructions Pages
If the suction unit is operated while it is hooked up to the vehicle it will utilize the vehicle power and save its own battery for emergency use. All SSCOR, Inc. suction units have a diode to prevent drawdown from the pump to the vehicle electrical system and a fuse to protect the pump from vehicle electrical surges. - Page 7 DC CHARGING FROM 115V AC TO 13.8V DC BATTERYCHARGER If 115V AC charging is required, connect the S-SCORT 9 to a SSCOR AC battery charger (21) SSCOR Part #80533 (included with unit). AC charging should bring the battery to a dependable working charge in 4 to 6 hours.
-
Page 8: Troubleshooting
particulate matter Float valve has closed Loosen float valve, empty contents, or replace canister Regulator stem is difficult Stem requires lubrication Lubricate stem with pneumatics to pull lubricant S-SCORT 9 - Model 2109 (10/15) -
Page 9: Warranty
SSCOR warrants that each new product is free from defects in material and workmanship under normal use and service for a period of one year from date of purchase. If returned to SSCOR, we will arrange for repairs or replacement within the terms of the warranty. The product should be decontaminated and returned properly packaged and postage prepaid. - Page 10 / regional / national requirements for the disposal of hazardous waste materials. Clean the exterior of the SSCOR suction unit using a mild detergent and clear water by dampening a clean lint free cloth. Rinse using clear water and another damp clean lint free cloth to remove any detergent residue.
-
Page 11: General Specifications
Regulator Controls negative pressure Power Source: Rechargeable Sealed Lead Acid. SSCOR part # 80638. Please read Battery (DC Power) pages 6 and 7 for battery care suggestions. At full capacity a fully charged battery will power the suction device for 30-45 minutes. - Page 12 Re-attach the battery plate to the base plate. Dispose of the old battery according to local / regional / national requirements for the disposal of sealed lead acid batteries. S-SCORT 9 - Model 2109 (10/15)
