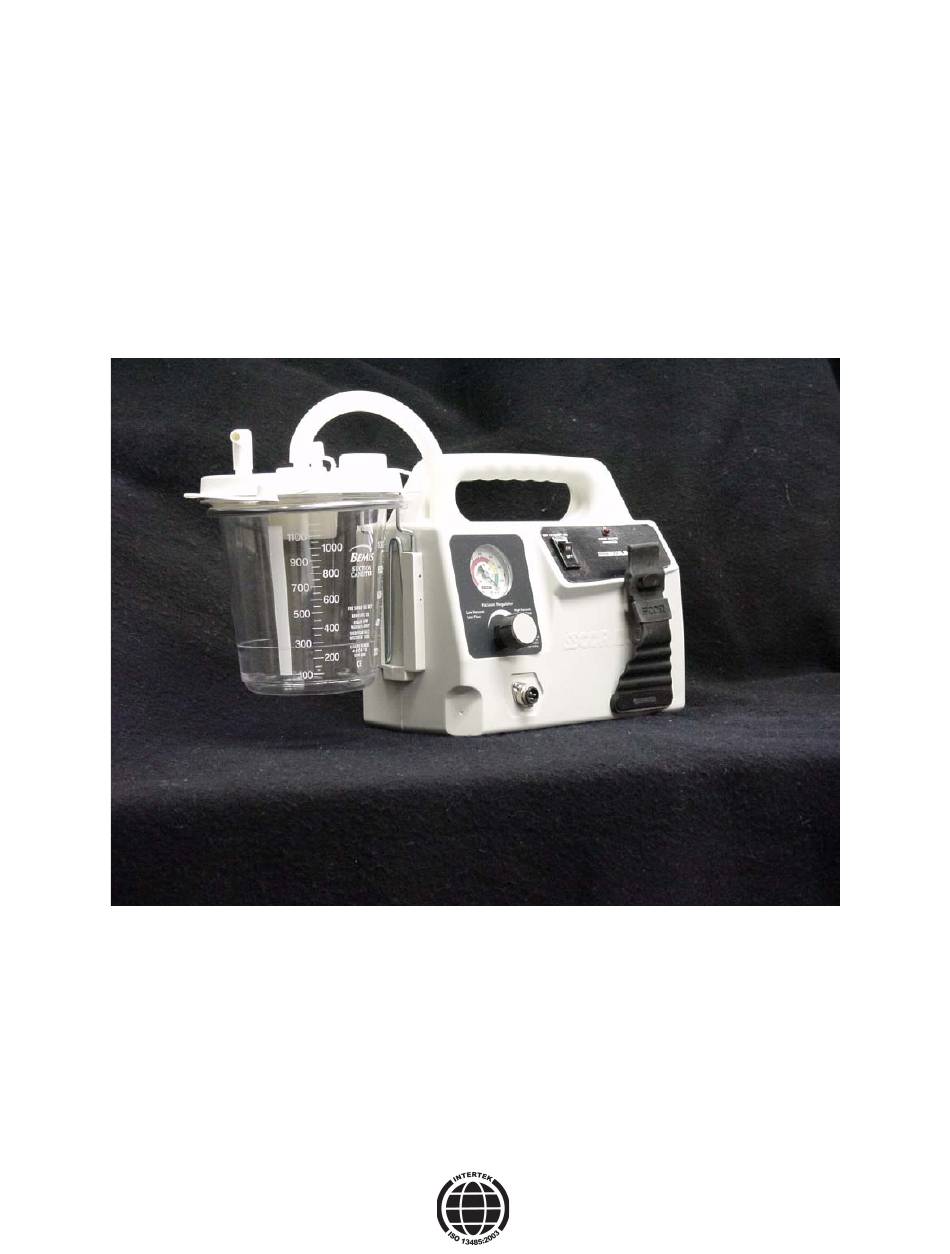

- Page 1 OPERATING INSTRUCTIONS MAINTENANCE MANUAL ® S-SCORT new-Sentinel Model 2315 SSCOR, INC. 11064 Randall Street • Sun Valley, CA 91352 • USA Telephone +1-818-504-4054 • 800-434-5211 Fax +1-818-504-6032 www.sscor.com Email: marketing@sscor.com...
-
Page 2: Caution-Notice
8. Install a new canister before testing for vacuum over -300mmHg to minimize the possibility of implosion, which can occur when a canister is aged or damaged. 9. SSCOR's battery charger charges batteries only. The battery charger will not run the pump. 10. This unit complies with electromagnetic compatibility standards. Any person who connects... -
Page 3: General Description
Table of Contents Caution-Notice ................2 General Description and Symbols ........... 3 Getting Acquainted- Basic Instructions ........4 General Specifications-Trouble Shooting ....... 5 Warranty-Maintenance ............... 6 Sanitation and Decontamination..........7 Internal Access-Internal Components ........8 General Description The S-SCORT® new-Sentinel is a portable, 12V DC battery operated suction pump for constant suctioning during resuscitation emergencies. -
Page 4: Getting Acquainted
Getting Acquainted Charging the Battery 1. Connect the dual mode battery charger (1) to a grounded wall receptacle. 2. Connect the female plug of the battery charger (1A) to the facing side of the unit (1A). 3. Check the control panel (2). The "power source connected" red LED (4) indicates a good connection between the new-Sentinel and the charger. -
Page 5: Troubleshooting
Calibrated in mmHg. Color-coded. Power Source: Battery (DC Power) Rechargeable Sealed Lead Acid. 45 (±10%) minute running time. Switch (5) On/Off rocker switch Collection Canister (13) 1200cc/ml SSCOR part #48041 Patient tubing Vinyl tubing 9/32”ID, 72”L SSCOR part #43200 ® ®” Suction Tip HI-D “Big Stick... -
Page 6: Warranty
SSCOR warrants that each new product is free from defects in material and workmanship under normal use and service for a period of one year from date of purchase. If returned to SSCOR, we will arrange for repairs or replacement within the terms of the warranty. The product should be decontaminated and returned properly packaged and postage prepaid. - Page 7 (see page 8), remove the soiled filter and replace with a new filter (SSCOR P/N 90160). Do not reuse any single use disposable parts; do not submerge the device into any liquid, this will void the warranty and cause the device to malfunction.
- Page 8 Fastening screws located in back of the (I) Battery Bracket unit. (J) Battery, 12V, Sealed Lead Acid REMOVE MAIN CHASSIS (L) Vaccum pump. Return to SSCOR for SCREWS service. Do not attempt to service the pump. (A) 1 screw under the canister holder (M) Exhaust barb...
