Summary of Contents for SSCOR Quickdraw 2400 Series

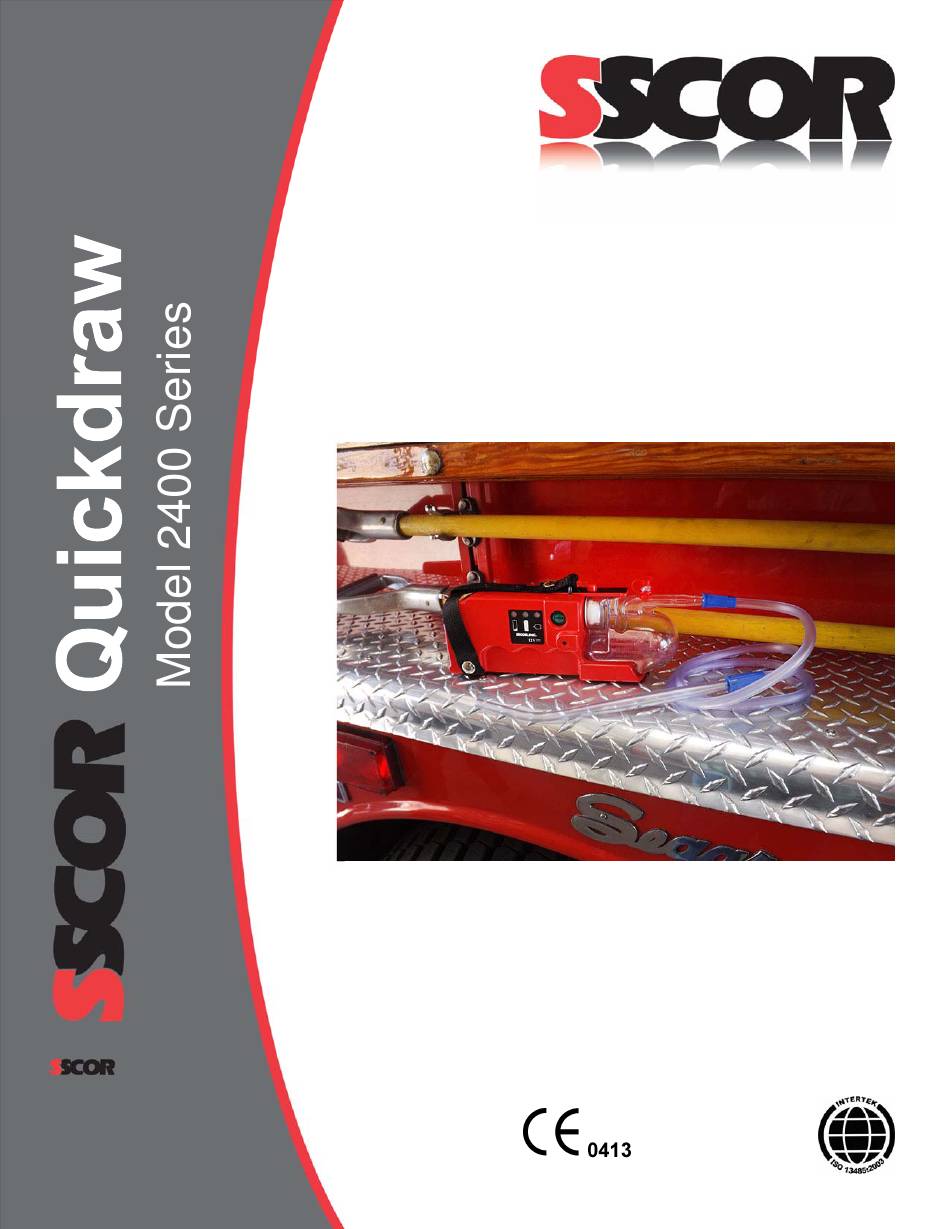

- Page 1 Clearing The Airway Is Our #1 Priority Operating Instructions & Maintenance Manual , INC. 11064 Randall Street Sun Valley, CA 91352 USA Tel 1+818-504-4054 www.sscor.com Tel 1+800-434-5211 shop.sscor.com Email: marketing@sscor.com techsupport@sscor.com...
- Page 2 Revision M (02/17) 1. SSCOR suc on units are not designed or intended for use in extended procedures that require prolonged high vacuum/low airflow applica ons, as is the case in wound drainage or endoscopic use or in any other procedure that produces high vacuum levels within an occluded system for an extended period of me.
- Page 3 The charging system will fully charge the ba ery in 3 to 4 hours when connected to an electrical power source. SSCOR suc on units are powered by sealed lead acid ba eries. A sealed lead acid ba ery is a very stable and reliable ba ery.
- Page 4 Clearing The Airway Is Our #1 Priority Description of Symbols SYMBOL LOCATION MEANING Side of chassis Low Ba ery Side of chassis Ba ery Fully Charged Side of chassis Device Connected to External Power Source On/Off Switch Push On / Push Off Single Use Non‐Sterile Canister Direc on of flow Single Use Non‐Sterile Canister...
-
Page 5: Operating Instructions
All SSCOR, Inc. suc on units have a diode to prevent draw‐down from the pump to the vehicle electrical system and a fuse to protect the pump from vehicle electrical surges. - Page 6 If the unit is s ll running at full power a er 15 minutes, turn the device off and put it back on charge. Reconnect the device to the charging source. SSCOR recommends replacing the ba ery a er3 years Quickdraw - Model 2400 Series...
-
Page 7: General Specifications
Model 2488: Barbed Quickdraw canister (shown on front cover) Pa ent tubing Vinyl tubing 9/32”ID x 36”L (7.1mm ID x 91.44 cm L) SSCOR part #43203 Suc on Tip HI‐D® “Big S ck®” SSCOR part #44241C SSCOR S3 SSCOR Part #44305C Trouble Shooting PROBLEM POSSIBLE CAUSE... - Page 8 Clearing The Airway Is Our #1 Priority Internal Access Remove the five 4‐40 screws using a Phillips head screwdriver and li off the chassis cover exposing the internal components. (A) Vacuum Pump: Do not a empt to service (B) PC Board (behind the pump) ‐ Electrical Circuits; Do not a empt to service (C) Ba ery ‐...
- Page 9 WARNING: To avoid any contaminants reaching the interior of the device, always remove the canister per the instruc ons in the sanita on sec on. Only use SSCOR, Inc. canisters affixed with hydrophobic filters. Quickdraw - Model 2400 Series Rev. M (02/17)
