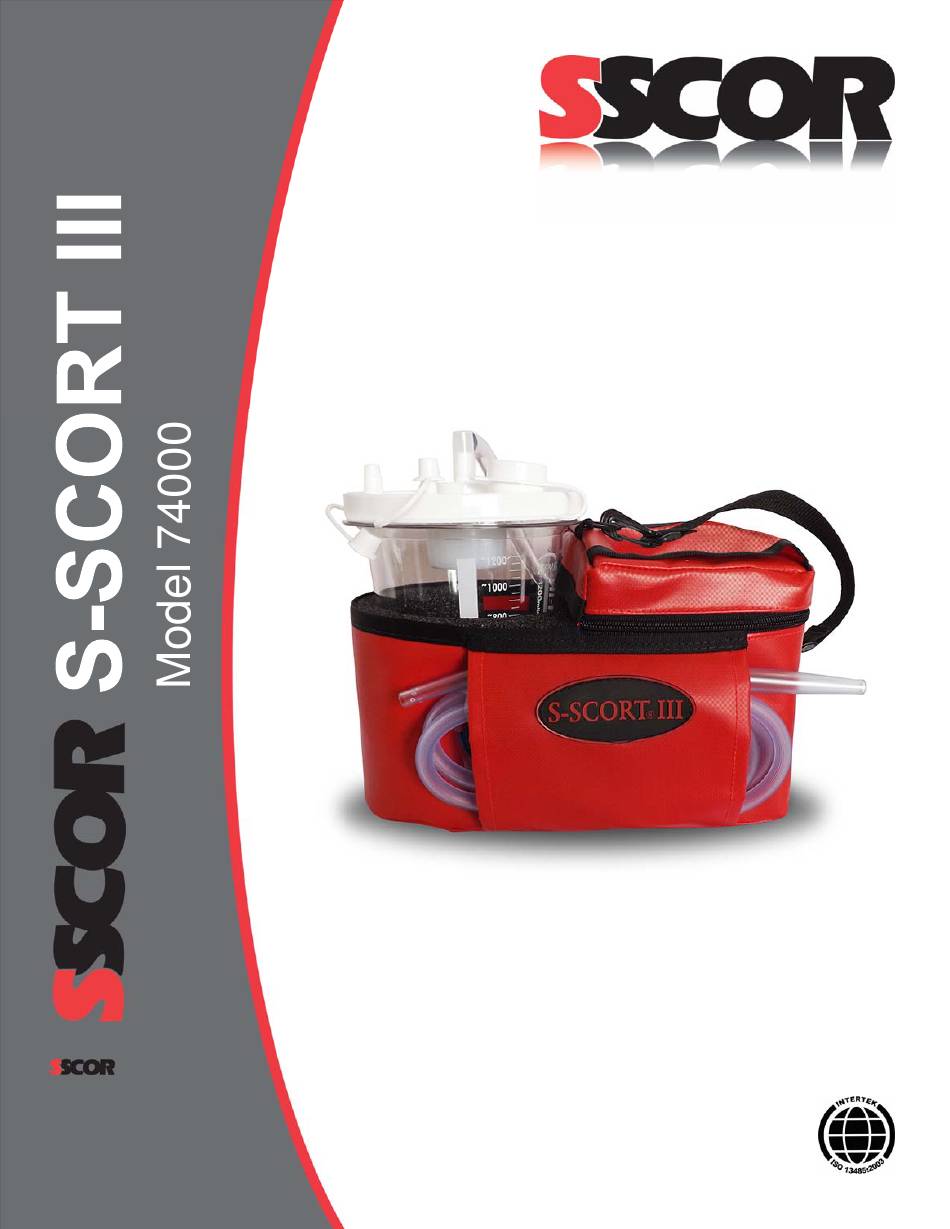

- Page 1 Clearing The Airway Is Our #1 Priority Operating Instructions & Maintenance Manual , INC. 11064 Randall Street Sun Valley, CA 91352 USA Tel 1+818-504-4054 www.sscor.com Tel 1+800-434-5211 shop.sscor.com Email: marketing@sscor.com techsupport@sscor.com...
- Page 2 Disconnect only for portable use. Check the condi on of the ba ery frequently , see the ba ery test on page 6. SSCOR’s AC‐DC charger only charges the ba ery, it will not power the suc on device. The suc on device will run on vehicle power when the unit is connected directly to the vehicle ba ery via the DC power cord.
-
Page 3: Table Of Contents
6 of this opera ons manual. Replacement ba ery may be purchased at shop.sscor.com. The S‐SCORT III is designed to provide instant, effec ve suc oning, independent of external sources of power and can be pre‐set to be ac vated immediately upon reaching the distressed pa ent, with no set up me... -
Page 4: Important Features
Clearing The Airway Is Our #1 Priority Important Features S-SCORT III - Model 74000 Rev. K (02/17) - Page 5 9/32” ID, SSCOR part #43200 Disposable Canister 1200cc/ml, SSCOR part #48041 Vented Suc on Tip HI‐D® “Big S ck”® Large Bore Suc on Tip SSCOR part #44241 Charging Indicator Light Signifies electrical connec on from charger to the unit On/Off Switch Turns unit on or off...
-
Page 6: Operating Instructions
If the suc on unit is operated while it is hooked up to the vehicle it will u lize the vehicle power and save its own ba ery for emergency use. All SSCOR, Inc. suc on units have a diode to prevent drawdown from the pump to the vehicle electrical system and a fuse to protect the pump from vehicle electrical surges. - Page 7 DC CHARGING FROM AC/DC DUAL MODE BATTERY CHARGER If 115V AC charging is required, connect the S‐SCORT III to a SSCOR AC ba ery charger (15) SSCOR Part #80533 (included with unit). AC charging should bring the ba ery to a dependable working charge in 4 to 6 hours.
-
Page 8: Troubleshooting
Clearing The Airway Is Our #1 Priority Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Unit does not func on Molex connec ons disconnected Reconnect Molex connec ons when switch is in the Ba ery discharged Recharge ba ery ... -
Page 9: Warranty
SSCOR warrants that each new product is free from defects in material and workmanship under normal use and service for a period of one year from date of purchase. If returned to SSCOR, we will arrange for repairs or replacement within the terms of the warranty. The product should be decontaminated and returned properly packaged and postage prepaid. -
Page 10: Maintenance
/ regional / na onal requirements for the disposal of hazardous waste materials. Clean the exterior of the SSCOR suc on unit using a mild detergent and clear water by dampening a clean lint free cloth. Rinse using clear water and another damp clean lint free cloth to remove any detergent residue. -
Page 11: S-Scort Iii - Model
Regulator Controls nega ve pressure Power Source: Rechargeable Sealed Lead Acid. SSCOR part # 80638. Please read Ba ery (DC Power) pages 6 and 7 for ba ery care sugges ons. At full capacity a fully charged ba ery will power the suc on device for 30‐45 minutes. - Page 12 Clearing The Airway Is Our #1 Priority Replacing the Battery (Available for purchase on shop.sscor.com) Refer to parts diagram pages 4 and 5. Instruc ons to replace the ba ery • Unzip the top flap and pull it back exposing the foam chassis.
