Summary of Contents for Unitech ScanKiosk PC66

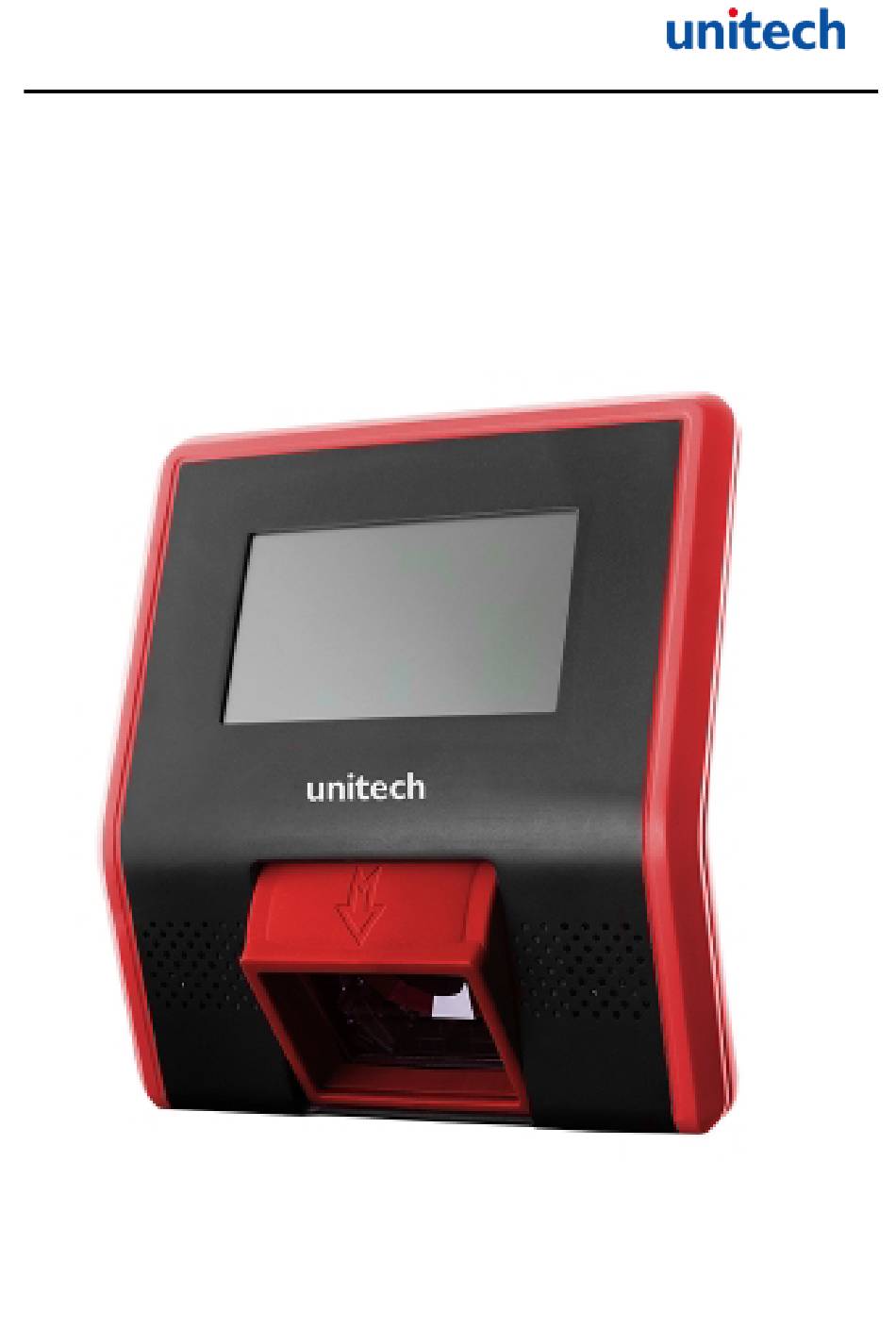

- Page 1 I N S T A L L A T I O N M A N U A L Unitech Scan Kiosk PC66...
- Page 3 Installation Manual Unitech ScanKiosk PC66...
- Page 4 In particular, Unitech shall not be liable for any hardware, software, or data that is stored or used with the product, including the cost of repairing, replacing or recovering the above. Unitech reserves the right to change parts of the device at any time without preceding or direct announcement to the client.
-
Page 5: Table Of Contents
Table of contents About this Manual ................. 3 Regulatory and Safety Information .............. 4 Chapter 1 Product Overview............... 7 Introduction .............. 8 General Product Features ........9 Unpacking............. 11 Device Parts ............12 1.4.1 Front View ............. 12 1.4.2 Back View.............. 14 1.4.3 Data I/O Compartment .......... -
Page 7: About This Manual
About this Manual This manual provides information for installing and operating the Unitech ScanKiosk PC66 Read this manual before operating the device and keep it in a safe place for future reference. The complete set of UNITECH PC66 User Documentation consists of: •... -
Page 8: Laser Safety
Italian: Lo UNITECH PC66 è conforme alle norme di sicurezza IEC 825-1 (1993) relative ad un prodotto laser di Classe 1. È inoltre conforme alla norma U.S. 21CFR1040 relativa ad un prodotto laser di Classe IIa. Evitare l'esposizione prolungata all'emissione diretta di luce laser. - Page 9 Spanish: El UNITECH PC66 reune las normas de seguridad IEC 825-1 (1993) para un producto laser de Clase 1. Y también reune las normas U.S. 21CFR1040 que se aplican a un producto laser de Clase IIa. Se debe evitar mirar muy fijo en luz lasérica directa.
-
Page 10: Declaration Of Conformity
2011 /65/EU, except for the exemptions listed under RoHS2. QA Director January 23 2013 SERVICE INFORMATION If you might encounter any problem with the product, contact Unitech customer-support in your region, specifying the following information: • Model and Part number •... -
Page 11: Chapter 1 Product Overview
Chapter 1 Product Overview... -
Page 12: Introduction
Terminals . Quality and Durability The PC66 comes with the same top quality as all other Unitech products. With PC66, you get the same quality and performance of more expensive products but at a very competitive price. Due to the high MTBF times of every component a long and service free operation time is ensured. -
Page 13: General Product Features
GENERAL PRODUCT FEATURES • Self-service SCAN KIOSK with touch screen and media display function (PC66) • Color-screen Price Verifier (PC66) • Multimedia support with High Quality speakers and headphone jack support • Compact dimension for easy to deploy virtually anywhere in the store •... -
Page 15: Unpacking
UNPACKING Remove the device from the box and inspect it for damage. Remove other items from the box and check if all accessories are complete. The following items should be present: • Power adapter • Installation Manual • Configuration Manual Keep the packaging material in a safe place. -
Page 16: Device Parts
DEVICE PARTS 1.4.1 Front View Figure 1: PC66 Figure 2: PC66... - Page 17 Item Description Displays product information on the 5.7” full- Touch screen (PC66) color screen ideal for multimedia applications Displays product and price information on Display screen (PC66) the 4.3” full-color screen Speakers High Quality speakers for superior audio experience To identify articles by scanning barcodes with Bar Code Scanner the Omni Directional Laser Scanner or 2D Imager...
-
Page 18: Back View
1.4.2 Back View All Data I/O connectors are protected by the back compartment cover. Before making any connections, remove the back compartment cover. Press the tab then pull back to detach the back compartment cover. Figure 3: Back View NOTE The connectors may vary depending on the device model. -
Page 19: 1.4.3 Data I/O Compartment
1.4.3 DATA I/O Compartment Item Description SD card compartment Contains the SD card slot Used to mount the device on the wall Wall mount slots by using two screws Connects the device to the network using LAN port an Ethernet (RJ-45) cable Connects USB devices such as USB port a handheld scanner or a flash USB drive... -
Page 20: Scanning With The Pc66
SCANNING WITH PC66 To scan barcodes, move the barcode towards the scanner window. The device beeps to indicate a successful scan. -
Page 22: Adjusting The Scanner Angle
ADJUSTING THE SCANNER ANGLE For the best user convenience, the scanner can be adjusted over a 30° angle and locked with steps of 5°. To adjust the tilt: 1. Open the back compartment cover. 2. Press and hold the scanner window lock and adjust the scanner to desired tilt. - Page 23 Scanner Angle and Envelope Product profile showing the scan area at the two extreme scanner positions.
-
Page 26: Chapter 2 Installation
CHAPTER 2 INSTALLATION... -
Page 27: Mounting The Device
MOUNTING THE DEVICE Before mounting the device, consider the following to ensure proper mounting and the safety of installation: • Wall is thick enough to sustain the mounted device • The mounted height should be convenient enough for everybody to easily scan the article and to comfortably read the display. The PC66 provides two mounting options: •... -
Page 29: Wall Mount
2.1.2 Wall Mount with 2 screws 1. Select a suitable location to mount the device. 2. See the next page for a Drilling Template, mark the location for the mounting screws and drill two holes in the wall. 3. Plug the wall-plugs into the holes. 4. - Page 30 PC66 Wall Mount Drilling Template: 70 mm Scaling Reference: 100 mm Enlarge this page to the real product sizes. Make sure the scaling reference of 100 mm is respected.
-
Page 31: 2.2 Expanding The Memory
2.2 EXPANDING THE MEMORY The PC66 have standard a built-in flash memory of 256 MB. The flash memory is non-volatile and contains the system firmware, user applications, data, promotion and media files. If necessary the flash memory can be expended in two ways: use an SD card or a USB flash drive. 2.2.1 Installing an SD Card Remove the screw securing the SD card compartment cover. -
Page 32: Connecting The Pc66
A Wi-Fi stick must be present in one of the USB ports in the side compartment or in the Data I/O compartment for wireless connection. The UNITECH PC66 WiFi version is supplied from the factory with the WiFi USB stick built-in. If placed afterwards: this must be a validated type to guarantee correct wireless communication. -
Page 33: Connect Peripherals Through Usb
2.3.2 Connect peripherals through USB (if applicable) Connect peripheral devices such as a handheld scanner or Wi-Fi stick to the USB port on the back of the device or in the side compartment. NOTE The number of USB ports may vary depending on model. 2.3.3 Connect headphone (if applicable) (PC66) Connect the headphone to the audio port on the back of the device. -
Page 34: Connect Peripherals Through Rs-232 (Pc66)
2.3.4 Connect peripherals through RS-232 (if applicable) (PC66) To connect other accessories, such as a handheld scanner, connect the RJ-11/14 6pin connector to the RS-232 port on the back of the device. Apply the (6) cable strain relief pins. 2.3.5 Connect the Power Connect the power adapter to the power jack on the back of the device. -
Page 35: Power Over Ethernet
Towards the host-side this means that a hub/router is required, supporting the Power-Over-Ethernet (PoE) feature, complying with the official standard for this: IEEE 802.3af. To avoid any mis-communication in this area: Unitech does not supply network components like power injectors, network cabling or powered hubs. -
Page 36: Appendix A Technical Specifications
Technical Specifications PC66 Appendix A. UNITECH System Architecture Processor Super RISC Processor 400MHz Operating Standard Linux 2.6 Kernel or WinCE 6.0 Platform Memory Flash 256 MB, expandable with USB flash drive and SD card Memory RAM 128 MB Output Media Display Size 5.7”... - Page 37 Wired LAN • Power over Ethernet IEEE 802.af optional • Two network LED indicators in the LAN connector Through USB Wi-Fi stick (ex factory or Unitech validated) Wireless LAN 802.11 B/G/N 2.4 GHz Encryption WPA, PSK and WPA Enterprise security...
- Page 38 193 x 176 x 85 mm (7.6” x 6.9” x 3.3”) (H x W x D) Weight 0.9 kg (2 lb) Dual Mounting Wall mount with 2 screws (Unitech SG-15 compatible) and Options VESA 75mm bracket mounting Environmental Operating 0° ~ 40°C (32° ~ 104°F)
- Page 41 Unitech America 6182 Katella Avenue Cypress, CA 90630 Phone: (714) 891-6400 Email: info@us.ute.com Web: www.unitechbarcode.com...
