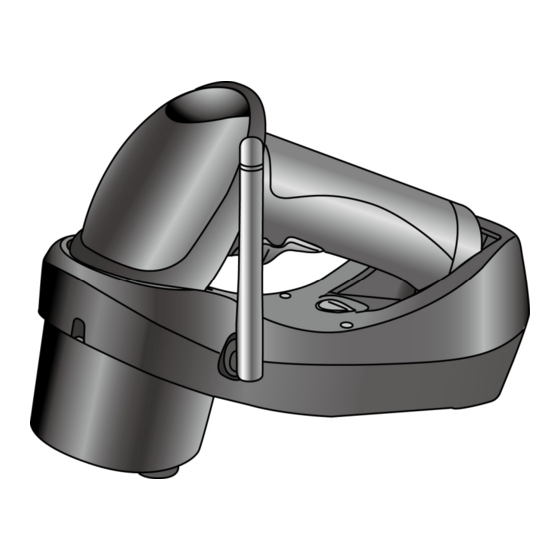

Unitech MS084 User Manual

Unitech MS084 User Manual

Wireless laser bar code scanner
Hide thumbs Also See for MS084:

Advertisement

Quick Links

Wireless Laser Bar Code Scanner
- MS840 / MS084-
User's Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS084 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unitech MS084

  • Page 1 Wireless Laser Bar Code Scanner - MS840 / MS084- User’s Manual Version 1.0...
  • Page 2: Preface

    The material in this manual is subject to change without notice. © Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech global website address: http://www.ute.com...
  • Page 3: Regulatory Compliance Statements

    Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4: European Conformity Statement

    Taiwan NCC Warning Statement Laser Information The Unitech MS840 series is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The MS840 series contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.
  • Page 5: Battery Notices

    Battery Notices The MS840 is equipped with a Lithium-Ion battery. The battery will discharge after an extended period of no use. When the battery is discharged, recharge the unit for 4.5 hours in order to fully charge the battery. To guarantee optimal performance, it is advised that rechargeable batteries be replaced Note: every year, or when 500 charge/discharge cycles are achieved.
  • Page 6: Warranty

    Warranty The following items covered under the Unitech Limited Warranty are free from defects during normal use: MS840 – 1-year limited warranty. Lithium-Ion battery – 6-month limited warranty. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.
  • Page 7: Table Of Contents

    Table of Contents Preface ............................i About This Manual ........................i Regulatory Compliance Statements..................ii FCC Warning Statement ......................ii FCC Label Statement......................ii RF Radiation Exposure Statement ..................ii Canadian Compliance Statement..................iii European Conformity Statement ..................iv RoHS Statement .........................iv Taiwan NCC Warning Statement..................iv Laser Information........................iv Battery Notices ........................v Battery charge notice ......................
  • Page 8 Inventory Mode ......................... 17 LED / Beeper Indication for Scanner ..................19 LED Indication for Scanner ....................19 Beeper Indication for Scanner................... 19 LED Indication for Cradle...................... 21 Chapter 3..........................23 Barcode Setting........................23 Barcode Menu Setting ......................23 Barcode Length Setting ......................25 Code ID Setting ........................
  • Page 9 Quick Setup Sheet........................46 Appendix B ..........................48 Function Codes ........................48 Function Codes for PC ......................48 Function Codes for IBM Terminals..................50 Appendix C ..........................51 Setup Menu..........................51 Appendix D ..........................65 Full ASCII Chart ........................65 Appendix E ..........................
  • Page 10: Chapter 1

    Chapter 1 Overview Introducing the MS840 First of all, thank you for choosing Unitech’s products. This scanner has capability of precise barcode scanning, reconnecting automatically after off-line in a long transmitting distance. It not only provides convenient and high efficient performance but also is well featured with wireless technology.
  • Page 11 Content - Scanner user has Wireless laser scanner * 1 Power adapter (1010-601959G) for scanner * 1 User's manual CD * 1 Quickly reference guide * 1 Scanner/cradle user has Wireless laser scanner * 1 Cable (PS2/USB/RS232) (optional) * 1 Cradle * 1 Power adapter (1010-900008G) for cradle * 1 User's manual CD * 1...
  • Page 12 [Cradle Aspect] Cradle Foot Note 2 Wedge Host Address Note 1 Antenna Interface Switch Note 4 Communication USB/RS232/PS2 Socket Power LED Status LED Reset Pinhole Scanner Detecting Power Socket Page Button Points for Charge Guidance Groove Note 4 Power Adapter USB Cable PS2 Cable RS232 Cable...
  • Page 14: Chapter 2

    Chapter 2 Battery Charging and Connection Battery Charging via Cradle The battery is in advance loaded into the compartment of the scanner and may not be fully charged before shipment. When you receive the package and use the MS840 for the first time, you will need to fully charge the battery. Note: It takes approximately 4.5 hours to fully charge the battery.
  • Page 15: Connection Of A Scanner Through A Cradle To A Pc

    To charge the scanner without a cradle, follow the instructions below: Plug the AC adapter cable into the power socket of the foot of scanner. Plug the AC adapter cord into an electrical outlet. Now, check whether the scanner LED will be bright in solid red during charging.
  • Page 16: Wall-Mount Installation Of A Cradle

    cradle is illustrated below. Wireless connection to cradle USB Interface PS2 Interface RS232 Interface Wall-Mount Installation of a Cradle Before mounting the cradle onto the wall, read the instruction made below. Mounting Kit (Optional) If you want to mount the MS840 cradle onto the wall, an iron plate, two screws, and two plastic conical anchors are required.
  • Page 17 Follow the steps below to mount the cradle onto the wall. Step 1: Loose and remove 2 screws from the stand of cradle by using a screwdriver. Then, remove the stand from the cradle. Step 2: Move the stand of cradle to the lower portion of the cradle from the upper portion adjacent to the antenna.
  • Page 18 Step 4: Place the iron plate against the wall, and mark the 2 screw hole locations with a pen or pencil. Drill the screw locations somewhat deep. Insert 2 plastic conical anchors into the screw holes. Attach and secure the plate to the wall with the 2 screws. Step 5: Align the two holes on the bottom surface of the cradle respectively with the two short pillars of the iron plate for insertion of the pillars into the holes.
  • Page 19: Wireless Connection Of A Scanner To A Pc

    Wireless Connection of a Scanner to a PC Human Interface Device (HID) Profile MS840 is allowed to connect with PC designed with wireless technology. In order to establish a proper connection between your computer with wireless technology and the scanner, we suggest that you follow these step-by-step instructions: Turn on your computer.
  • Page 20 Note: If you scan a wrong character, please scan the DLE($P) barcode as shown below to erase the character(s) you inputted. After scanning the DLE($P) barcode, please re-scan the pin code you got. DLE($P) After you finish in scanning the pin code, scan the barcode as shown below: CR($M) When the pairing is successful, the scanner LED is off and has a short beep.
  • Page 21: Change Between The Spp And The Hid

    Change between the SPP and the HID You may make the scanner change between the SPP and the HID. For example, if your scanner operates currently in the HID profile and you want to change the existing profile of the scanner to SPP, then scan the SPP Device barcode as shown below: SPP Device To determine whether your scanner’s profile is successfully changed, press the...
  • Page 22: Batch Mode

    Note: The 4 KB of memory buffer in the scanner can hold as many as 256 scans based on EAN-13 barcodes. Data will be cleared out once the scanner is turned off or running out of battery power! Batch Mode Batch Mode is the default memory buffer setting.
  • Page 23: Led / Beeper Indication For Scanner

    If you are out of range of the cradle or the host PC when reading out the scanned data, the scanner will keep the data in its memory buffer until the buffer is full; only when the scanner is within the specified range of the cradle or the host PC, can you make the scanner read out the data that is kept in the memory buffer by scanning the Read Buffer barcode.
  • Page 24: Led Indication For Cradle

    LED Indication for Cradle The LED lights on the MS840 cradle turn on to indicate the status of the power and wireless connection. LED Light State What it means Blue LED blink Connection Blue LED on Disconnection Green LED on Power on Green LED off Power off...
  • Page 25 16 ...
  • Page 26: Chapter 3

    Chapter 3 Barcode Setting The scanner interface can be configured to fit the user's specific application. All configuration parameters are stored in a non-volatile memory, which is retained even if power is lost. Barcode Menu Setting The setup menu in Appendix D contains eight groups: * Group 1: Device selection.
  • Page 27: Barcode Length Setting

    Barcode Length Setting The following example illustrates how to set Code 39 with a minimum length of 5 and a maximum length of 20. * Scan “Enter Group 7”. * Scan “F1” to select Code 39. * Scan “MIN LENGTH” to enter minimum length setting. * Scan “0”...
  • Page 28: Preamble (Prefix) And Postamble (Suffix)

    Those ID characters can be redefined through setup menu. The following example shows how to set Code 93 with ID ‘O’ and Code 128 without ID: * Scan “Enter Group 5”. * Scan “D2” to select Code ID. * Scan “1” for "Enable". * Scan “D3”...
  • Page 29: Quick Setup

    * Scan “Exit” to quit setup After programming, scanning “Label 0”, “Label 1”, and “Label 2” listed above will have the output of “START”, “ACCEPT”, and “END”, respectively. The characters defined in these labels can be ASCII characters or Function keys. To eliminate the definition of “Label 1”, do the following scan: * Scan “Enter Group 3”...
  • Page 30 Print into Code 39 bar code labels: . . . I 8 0 0 0 8 0 8 0 A 0 415254. By scanning the labels from top to bottom sequentially, you may duplicate the rest of scanners with the same settings. The following issues should be observed: The sequence of the strings that the scanner dumped is important.
  • Page 31: Scanner Configuration Manager Software

    Scanner Configuration Manager Software Scanner Configuration Manager is a utility program designed for users to configure scanner settings on a computer by using the Microsoft Windows based operating system. Use this program to define the settings and then download the parameters to the scanner.
  • Page 32: Chapter 4

    The Output Data Editing feature was removed from this barcode setup manual. It is implemented to the Scanner Configuration Manager Software providing a user-friendly interface for easier operation. Please download the latest program from Unitech’s web site at http://www.ute.com. This chapter will mainly describe the concept and feature provided by this data output feature.
  • Page 33: Programming

    Formula Structure Programming Programming Sequence Each Formula is entered into the reader by the following sequence: Input_ID >> Length >> Match >> A-String >> O-String >>...>> O-String >> Enter A Formula starts with Input_ID and ends with “Enter”(a label in programming sheet). If a field is optional and missing, the next one in the sequence can be entered.
  • Page 34: Programming Sheet

    Programming Sheet The bold and italicized characters in following sections mean a barcode label on the Programming Sheet. Scan this label to start the formula Enter input. Group 10 Erase all formulas. Group Default To see the formulas programmed in Review the Wedge.
  • Page 35: Qualifier

    Here are wild characters on the setup sheet. Qualifier There are three conditional fields in the Qualifier: Input ID, Length and Match. Input ID Format: IN_ID Input ID is required and the original data record must correspond to Input ID of a formula in order to be processed.
  • Page 36: Match

    Match Format: MATCH A pair of Pn and Cn forms a Match field (n indicates a sequential integer number). To define a Match field, two parameters are required. The first is character position (Pn) and the second is a string (Cn). Character position means the number of characters, counting from the first character to the one to be positioned in the data record.
  • Page 37: O-String

    O-String Format: O-STR O-String always applies to the original data. It contains two parameters. The first is position parameter (P) that specifies the start output position in the original data. Parameter N tells how many characters will be included beginning from P. Example: Original data is: Barcode...
  • Page 38 Both parameters of O-String mentioned above are numbers. But both parameters can be specified as strings. If N is a string, it becomes a position and the meaning of O-String will be "Output from position P to position N". If P is defined as: "ab...ik"...
  • Page 39 The output of above input will be ABEL,STEVE[CR] 012345678901234[CR] 9001[CR] 30 ...
  • Page 40: Quick Setup Sheet

    Appendix A Quick Setup Sheet Scanner Mode Beep UPC-A Default Trigger None Cut Leading Digit Flash Medium UPC-E Terminator Cut Check Digit Supplement Code Default Enter Cut Leading Digit Field Exit Scan Code Send Check Digit Menu Setup U.S. UPC-A Conversion Enable / Disable EAN-8 Display Version...
  • Page 41: Function Codes

    Appendix B Function Codes Function Codes for PC F1 (%VA) F2 (%VB) F3 (%VC) F4 (%VD) F5 (%VE) F6 (%VF) F7 (%VG) F8 (%VH) F9 (%VI) F10 (%VJ) F11 (%VK) F12 (%VL) Cursor Right (/FC) Cursor Left (/FD) Cursor Up (/FE) Cursor Down (/FF) PgUp (/FG) PgDn (/FH)
  • Page 42 F1 (%VA) F13 (%VM) Esc (/FK) F2 (%VB) F14 (%VN) return (/FM) F3 (%VC) F15 (%VO) Option Make (%VP) F4 (%VD) Cursor Left (/FD) Option Break (%VQ) F5 (%VE) Cursor Right (/FC) Control Make (%VR) F6 (%VF) Cursor Down (/FF) Control Break (%VS) Cursor Up (/FE) F7 (%VG)
  • Page 43: Function Codes For Ibm Terminals

    Function Codes for IBM Terminals F1 (%VA) F4 (%VD) F3 (%VC) F6 (%VF) F5 (%VE) F8 (%VH) F7 (%VG) F10 (%VJ) F9 (%VI) F12 (%VL) F11 (%VK) F14 (%VN) F13 (%VM) F16 (%VP) F15 (%VO) F18 (%VR) F17 (%VQ) F20 (%VT) F19 (%VS) F22 (%VV) F21 (%VU)
  • Page 44: Setup Menu

    Appendix C Setup Menu D.1 Beeps and Delays Enter Group 2 Group Default Beep Tone: 0 – None 1 -- Low 2 -- Medium 3 -- High 4 -- Low to High 5 -- High to Low Interblock Delay: 0 -- 0 ms 1 -- 10 ms 2 -- 50 ms 3 -- 100 ms...
  • Page 45 Reserve Exit 36 ...
  • Page 46 D.2 Keyboard Wedge Settings Enter Group 3 Group Default Function Code: 0 -- Off 1 -- ON Caps-Lock: 0 – Auto Trace(PC/XT,AT) 1 – Lower Case 2 – Upper Case Language (For PC/XT/AT): 5-Norwegia :-Danish 0-U.S. 1-U.K. 6-Italian ;-Partial Alt 2-Swiss 7-German <-Japanese...
  • Page 47 Exit 38 ...
  • Page 48 D.3 RS232 Settings Enter Group 4 Group Default Baud Rate: 0 -- 300 4 – 4800 1 -- 600 5 – 9600 2 -- 1200 6 – 19200 3 – 2400 7 – 38400 Parity: 0 – Even 3 -- Space 1 –...
  • Page 49 Define Terminator of RS232 input: Scan an ASCII code in full ASCII Chart to select a new RS232 Terminator. Exit 40 ...
  • Page 50 D.4 Scanner Port Enter Group 5 Group Default Terminator: 0—Enter 1--Return (on digits keypad) 2--Field Exit or Right Ctrl 3--None Code ID: 0 – disable 1 – Enable Note: This setting doesn’t affect EAN128 Code ID. EAN128 has its own Code ID setting on page D.7. 10 - Standard 2 of 5 Define Code ID: 00–Code 39 Full ASCII...
  • Page 51 Preamble Postamble Scan ‘PP\OO’ for Pre\Postamble. Scan characters from Full Exit ASCII char or Function 42 ...
  • Page 52 D.5 Magnetic Reader Enter Group 6 Group Default Buffer Mode 0— Disabled 1— Inventory Mode 2 — Batch Mode Reserve Buffer Transmit delay 1— 100ms 2— 300ms 0—50ms 3— 600ms 4— 1s 5— 2s 6— 3s 7— 5s Reserve Reserve Reserve Reserve Reserve...
  • Page 53 D.6 Code 39 / I 2 of 5 / S 2 of 5 / Code 32 / EAN128 Enter Group 7 Group Default Code 39: 0/1--Disable/Enable. 2/3--Full ASCII/ Standard. 4--Check Digit (CD) Calculate & Send. 5--CD Calculate, not send. 6 --CD not Calculate. 7/8 -- Send/No Send Start/Stop 9/: -- Double labels decoding Off/On 0 - 48 -- Min length 0 / Max length 48...
  • Page 54 Define a separator for double labels: Scan a ASCII code in full ASCII code chart to select a new definition of Func1 Min Length Max Length Exit 45 ...
  • Page 55 D.7 Code 128 / MSI Code / Code 93 / Codabar/ Label Code Enter Group 8 Group Default Code 128: 0/1 -- Disable/Enable 1-64 -- Min Length 1 / Max Length 64 MSI /Plessey Code: 0/1 -- Disable/Enable 2/3 -- Check Digit Send / No Send 4 -- Check Digit Double Module 10 5 -- Check Digit Module 11 plus 10 6 -- Check Digit Single Module 10...
  • Page 56 D.8 UPC / EAN / Delta Code Enter Group 9 Group Default UPC-A: 0/1 -- Disable/Enable 2/3 -- Leading Digit Send / No Send 4/5 -- Check Digit Send / No Send UPC-E: 0/1 -- Disable/Enable 2/3 -- Leading Digit Send / No Send 4/5 -- Check Digit Send / No Send 6/7 -- Zero Expansion On / Off 8/9 –...
  • Page 57 D.9 Dump Setup Strings See the section Batch Setup for how to use the labels below. Dump Settings Dump Settings on PC/AT PC/AT Interface Keyboard setting RS232 Interface Keyboard Setting (Speed=9600,Databit=8,Parity = None, Stop=1 Flow Control = None) 48 ...
  • Page 58: Full Ascii Chart

    Appendix D Full ASCII Chart Characters in parentheses represent Code 39 barcode printing DC4 ($T) NUL (%U) LF ($J) NAK ($U) SOH ($A) VT ($K) STX ($B) FF ($L) SYN ($V) ETB ($W) ETX ($C) CR ($M) CAN ($X) EOT ($D) SO ($N) EM ($Y) ENQ ($E)
  • Page 59 RS (%D) ) (/I) US (%E) * (/J) ! (/A) , (/L) ” (/B) # (/C) : (/Z) ; (%F) < (%G) & (/F) = (%H) ’ (/G) > (%I) ( (/H) 50 ...
  • Page 60 ? (%J) @ (%V) [ (%K) \ (%L) ] (%M) ^ (%N) _ (%O) 51 ...
  • Page 61 v (+V) ` (%W) k (+K) w (+W) a (+A) l (+L) x (+X) b (+B) m (+M) y (+Y) c (+C) n (+N) z (+Z) d (+D) o (+O) { (%P) e (+E) p (+P) | (%Q) f (+F) q (+Q) } (%R) g (+G)
  • Page 62: Barcode Test Chart

    4 7 6 6 9 1 3 7 1 6 (01)054123456789(01)659344 UPC-E Code 128 1 2 3 4 5 7 Unitech 128 ISBN 957-630-239-0 Codabar 9 7 8 9 5 7 6 3 0 2 Interleaved 2 of 5 MSI Code...
  • Page 63: Worldwide Support

    Worldwide Support Unitech’s professional support team is available to quickly answer questions or technical-related issues. Should a set of equipment problem occurs, please contact the nearest Unitech regional service representative. For complete contact information please visit the Web sites listed below:...
