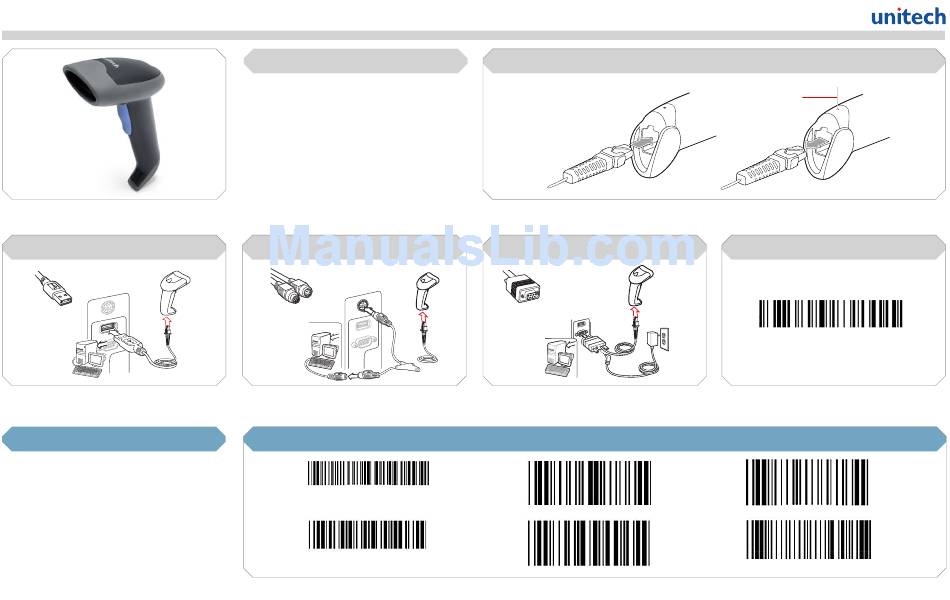

Unitech MS320 Quick Start Manual

MS320
Quick Start Guide

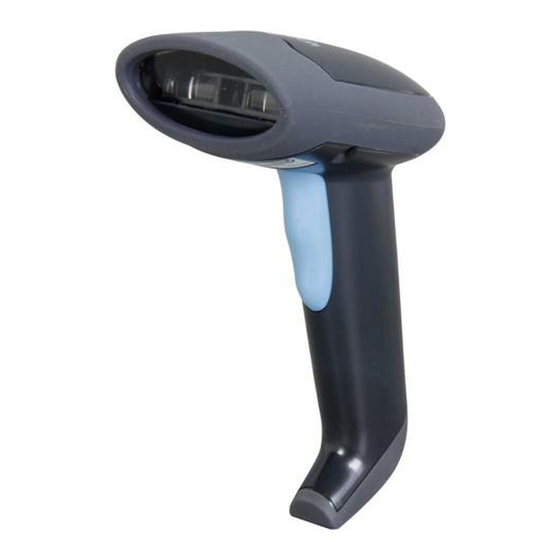

The Unitech MS320 Long Range Linear Scanner

Connect to host via USB

Plug the interface cable into a free USB port of a host computer.

SETTINGS AND CONFIGURATION

The following section covers the most common
coniguration settings for your MS320 scanner.
For additional coniguration options please visit
unitechscanners.com/MS320 and select the "Download"
tab. You will ind the User's Manual and a variety of
other resources.

SETUP AND INSTALLATION

The following steps will walk you through the installation process.

Connect to host via PS/2

Plug the interface cable into the keyboard port of a host computer.
1
2
Scan this series of barcodes to switch to Tab Mode from the default Enter Mode. In this mode, data will tab over to the next column as you scan instead of jumping to the next line.

Connecting and disconnecting the interface cable

An audible "click" sound indicates the interface cable has been plugged in correctly and the connector lock is engaged. To unplug the interface cable,
release the connector lock by inserting one end of a paperclip into the handle.
Connect to host via RS232
Plug the interface cable into the RS232 port of a host computer.
Plug the power supply cable into the RS232 connector and into an
electrical outlet.

Tab Mode

3
4
Paperclip
Test & Finish
Open a word processing program such as Microsoft Word or
Notepad on your host. Now scan the following barcode:
If the word "Unitech" appears on the screen you have succesfully
installed your scanner. Congratulations!
5
6
