Summary of Contents for Swegon PARASOL b Series

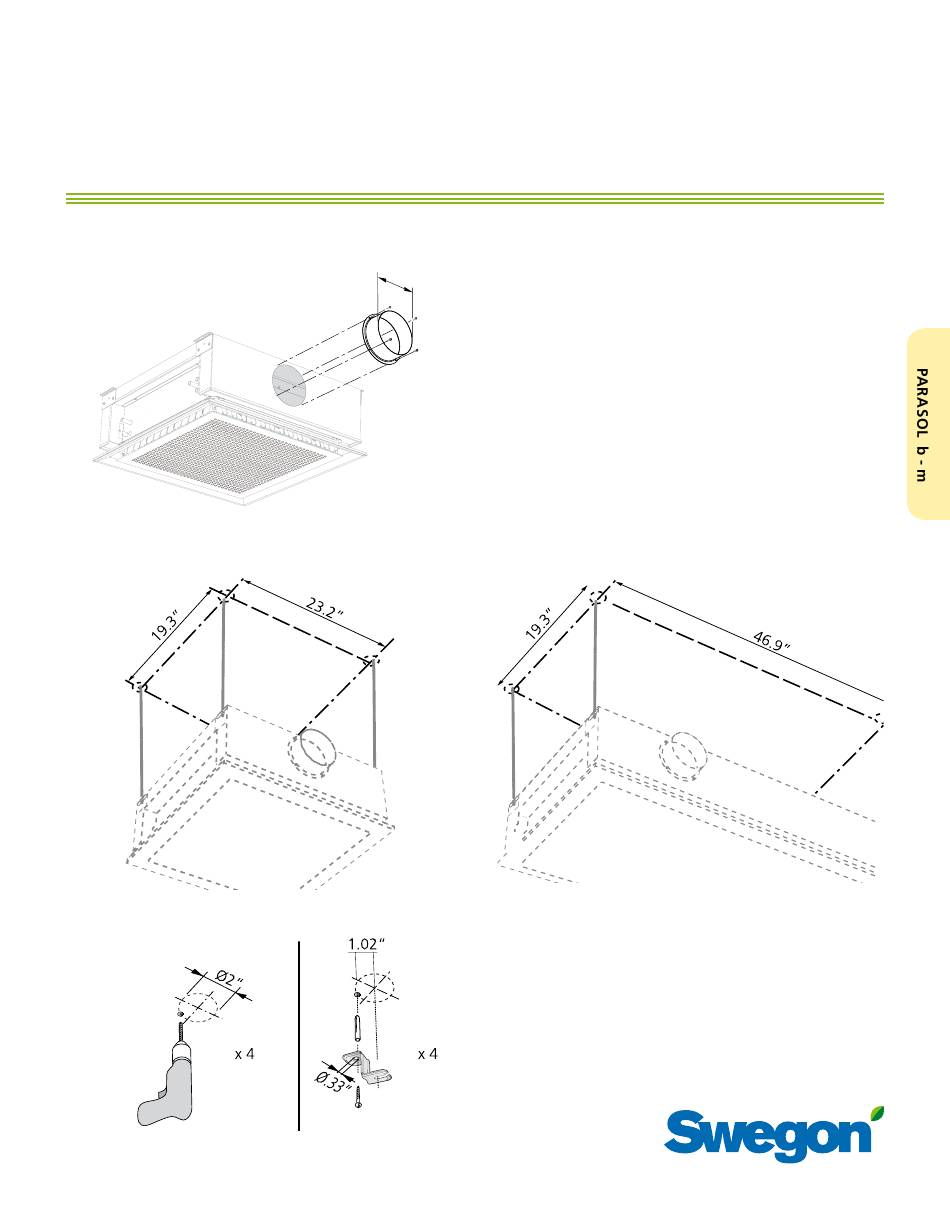

- Page 1 PARASOL b Installation - Commissioning - Maintenance 2012-03-01 Ø 4 . 9 2 “ 2. PARASOL 24" 2. PARASOL 48"...
- Page 2 Max. recommended operating pressure: 230 psi Max. permissible inlet flow temperature: 140°F The optional damper must always be mounted with the knob to the left viewed in the direction of primary air flow, see figure 6. Swegon reserves the right to alter specifications 2012-03-01 www.swegon.com...
- Page 3 PARASOL b Installation - Commissioning - Maintenance 2012-03-01 Water Side 1 2 3 4 T-25 5/16 X-shape Nozzle configuration Fan-shape...
- Page 4 PARASOL b 48" HF / Double-module unit Type Nozzle Side k-factor 1&3 short 8.46 2&4 long 22.31 1&3 short 14.71 2&4 long 38.79 1&3 short 23.17 2&4 long 61.10 1, 2, 3, 4 0.00 Swegon reserves the right to alter specifications 2012-03-01 www.swegon.com...
- Page 5 PARASOL b Installation - Commissioning - Maintenance 2012-03-01 OPEN THIS SIDE...
