Hobie MAX RACE Assembly Manual page 9

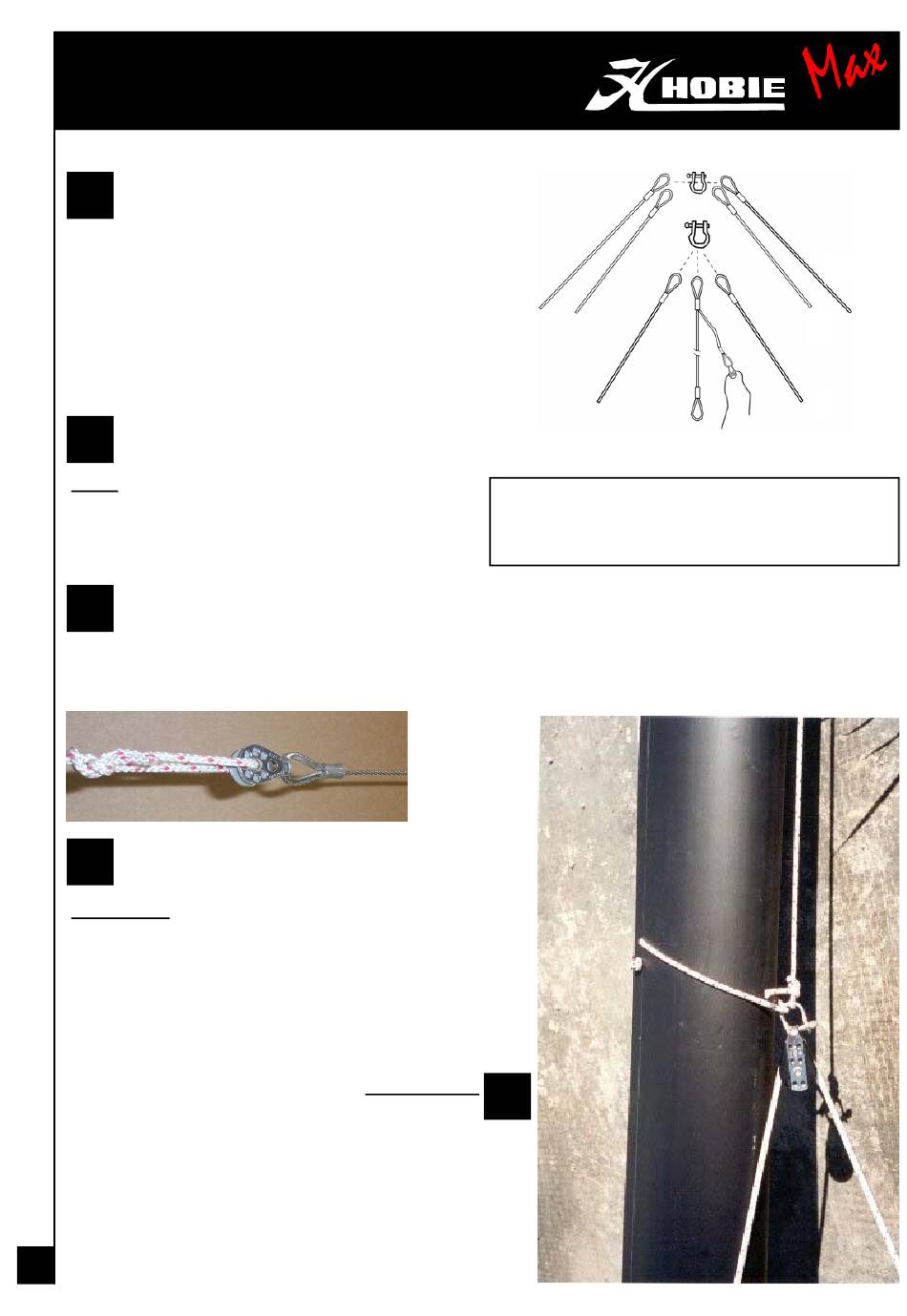

Mast set-up
1
Place the mast onto two supports (eg: two pieces of
polystyrene).
Unroll all the cables and fix them using a shackle to
the lower hole on the mast tang as shown on the
drawing.
2
NOTA : The spectra wires of the crew trapeze are
knotted on the shroud wires and the spectra wires of
the skipper' trapeze are inserted directly in the
shackle pin.
3
Link the big stay adjuster to the forestay.
4
IMPORTANT : Do not forget to attach the jib
halyard rope to the small single block at the
end of the pigtail. Tie off the two ends of the
jib halyard near the base of the mast.
Attach the halyard block to the shackle on the upper part
of the mast. Insert the spi halyard in the block sheave as
9
5
Spinnaker kit :
shown on the picture.
4
1- Shrouds
2 - Crew trapeze
3 - Skipper trapeze
4 - Forestay and pigtail
3
2
1
