3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.1 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

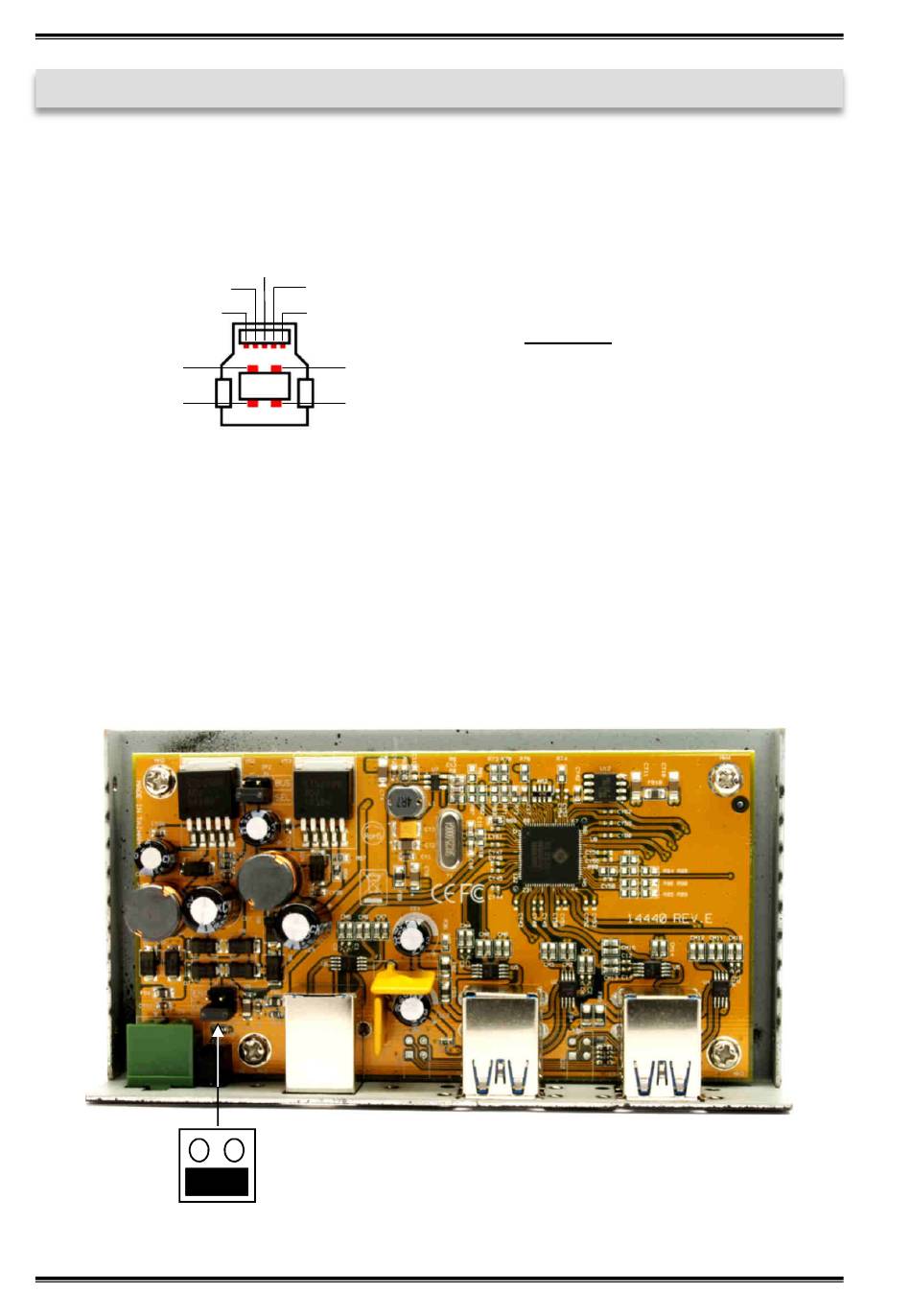

3.3 Jumper Settings

The EX-1185HMVS comes with the setting Self-Power. You also have the possibility
the EX-1185HMVS to supply Bus-Power. For this you open the case with the four
screws on both sides. Then you must set the jumper JP1 from DIS (Disable) to ENA
(Enable). See the following picture.
Attention! Please do not change Jumper JP2, because this will only be used by pro-
duction for test purposes!
ENA
DIS
JP1
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
Attention!
Never plug in with force
or in wrong direction.
10
