Predator Hybrid Installation Manual V2.1.25
11.2.7 Network
•
Camera - Cannot be edited, shows label/name given to the camera.
(See Video - Camera - page 25).

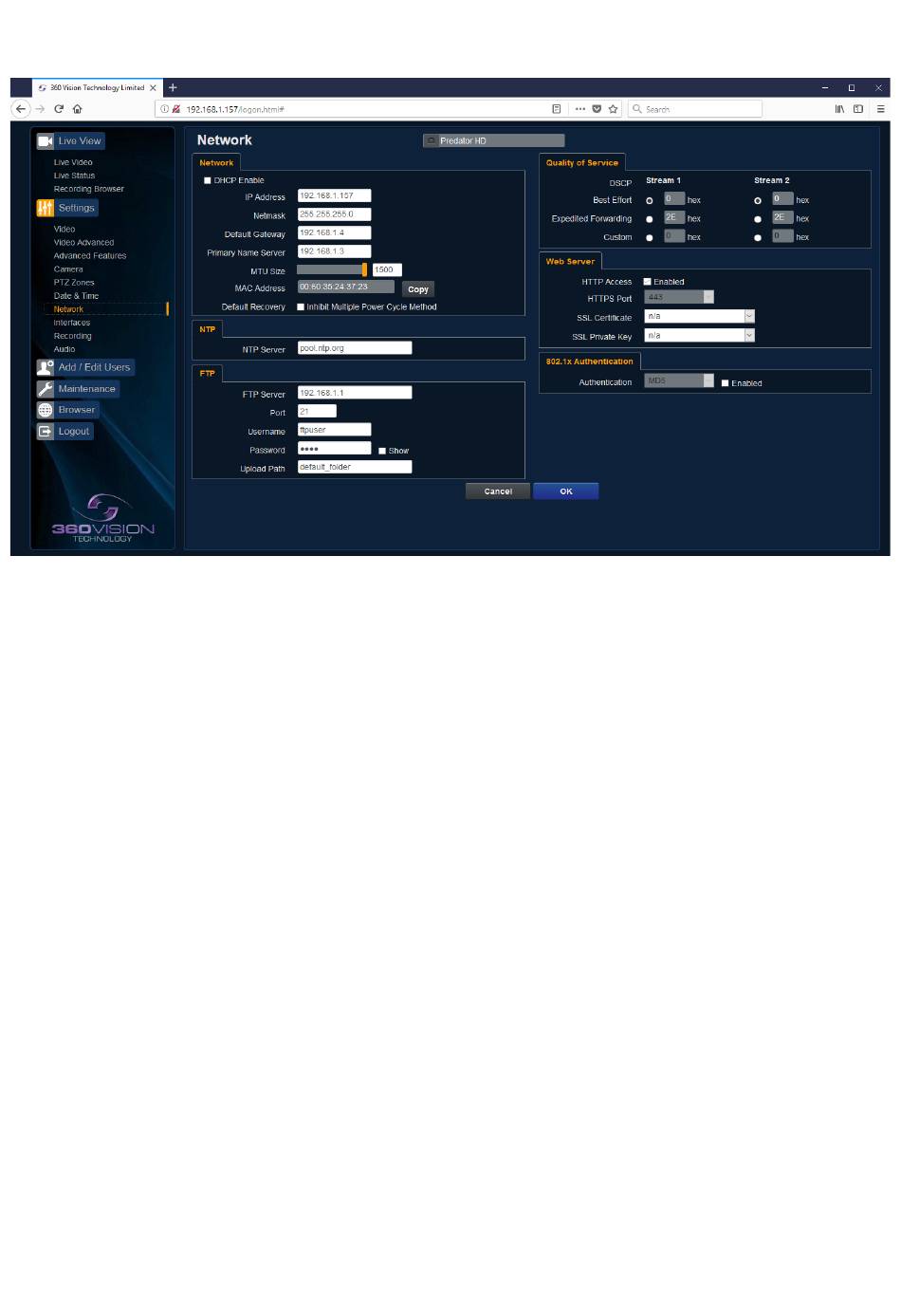

Network
The Network tab, offers options to:-
•
DHCP Enable - Allows the camera to be set using a dynamic IP address.
•
IP Address - Input a static IP address, if DHCP is not used.
•
Netmask - Input the Network Subnet Mask.
•
Default Gateway - Input the Network Gateway.
•
Primary Name Server - Input the Domain name server, if required.
•
MTU Size - Option to change the MTU size, default is 1500 bytes.
MAC Address - Displays the camera MAC address.
•
•
Default Recovery - Inhibit Multiple Power Cycle Method, disables the Network recovery process
(See Network Settings Recovery - page 44)
NTP
NTP Server - Input the address of the time server required, default is pool.ntp.org.
•
FTP (FTP server is used to transfer video recordings from the camera).
Only available on Edge Recording Predator
•
FTP Server - Input FTP server IP address, domain name.
•
Port - Set port to be used for FTP access, default is 21.
•
User Name - FTP server username.
•
Password - FTP server password.
•
File Upload Path - Set folder name for the file transfer on FTP server.
Quality of Service
•
Best Effort - Will send network packets with no quality of service policies.
•
Expedited Forwarding - Will send network packets with an assured bandwidth quality of service
policy.
•
Custom - Input required Hex figure for quality of service policy
•
•
Best Effort = 0x00
Expedited Forwarding = 0x2E
© 360 Vision Technology Ltd.
Page 36
