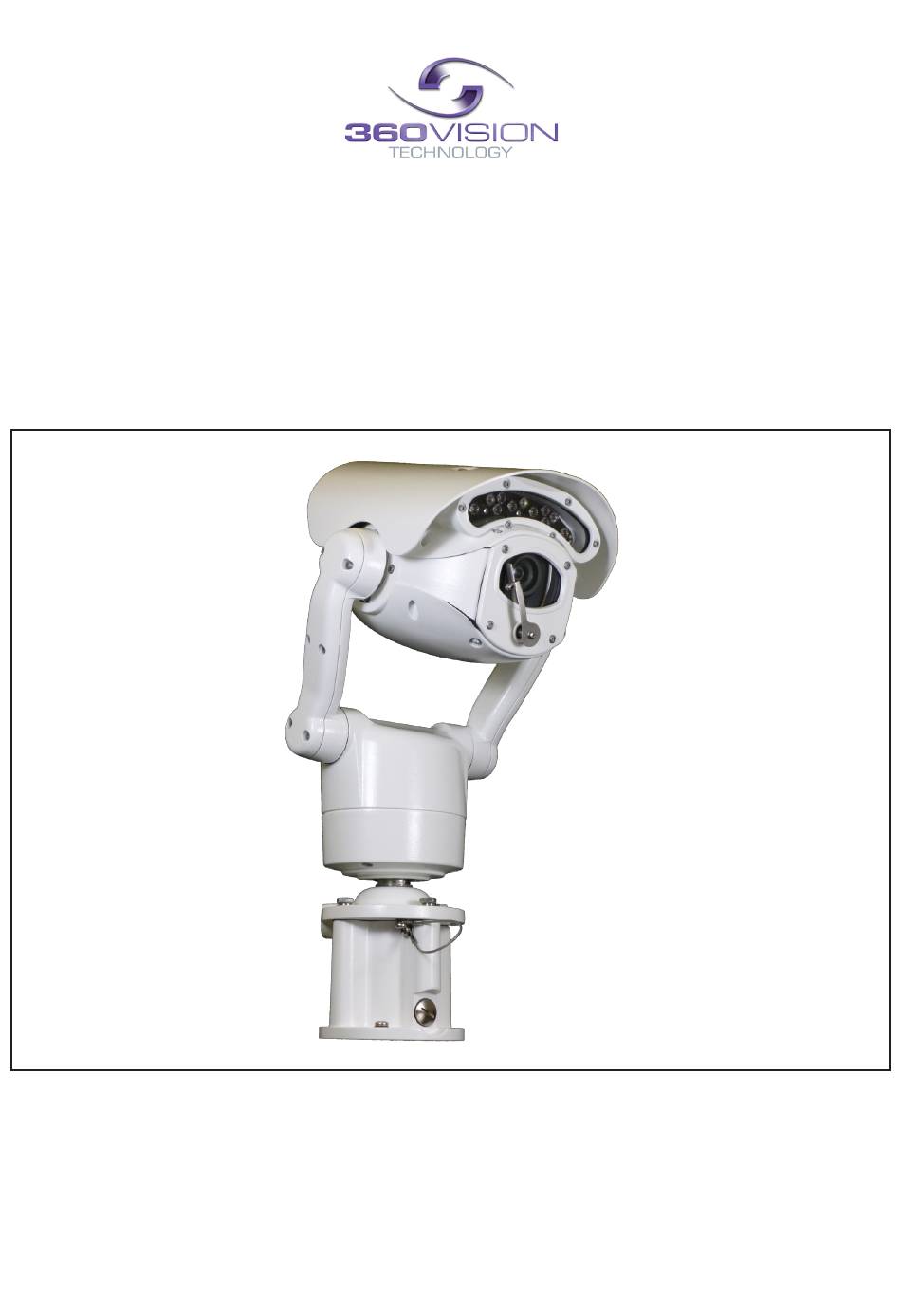

Predator Hybrid Installation Manual V2.1.25
Page 1

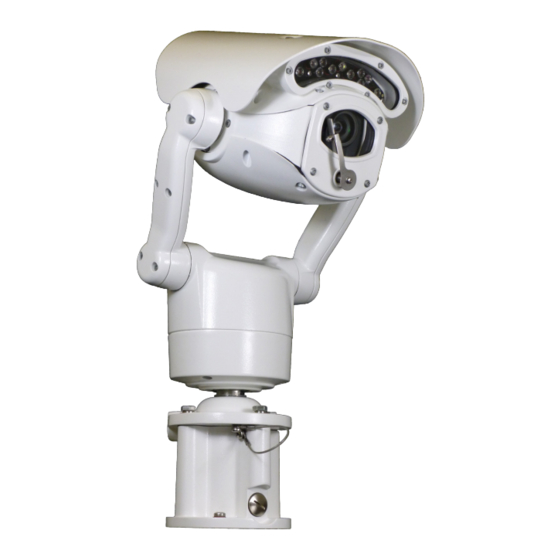

Predator Hybrid
(Analogue & HD/IP)
Installation/Configuration Manual
The Predator Hybrid camera is shipped from 360 Vision Technology in analogue mode.
When in analogue mode. Please note: No IP Video.
© 360 Vision Technology Ltd.
