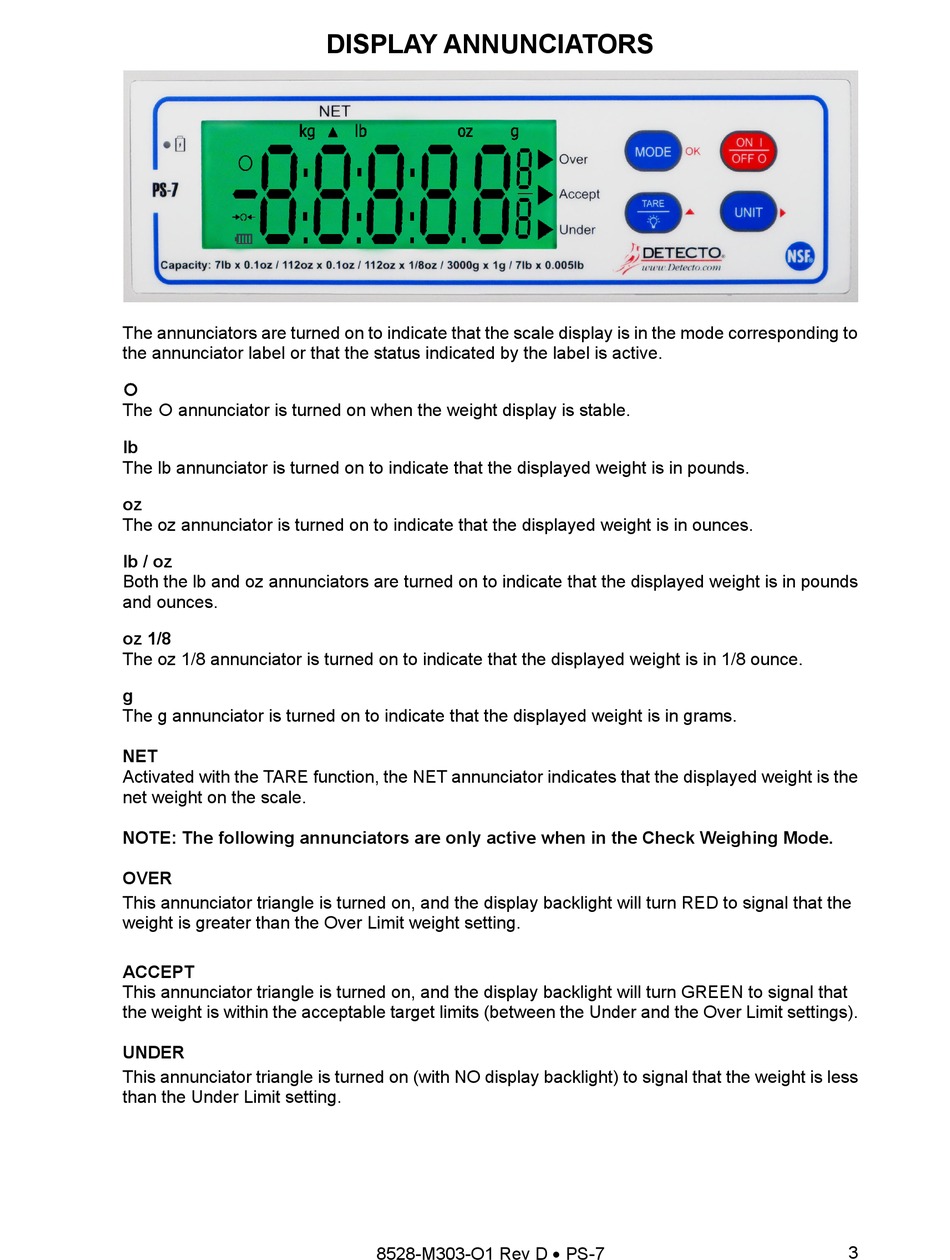

DISPLAY ANNUNCIATORS

The annunciators are turned on to indicate that the scale display is in the mode corresponding to
the annunciator label or that the status indicated by the label is active.
The  annunciator is turned on when the weight display is stable.
lb
The lb annunciator is turned on to indicate that the displayed weight is in pounds.
oz
The oz annunciator is turned on to indicate that the displayed weight is in ounces.
lb / oz
Both the lb and oz annunciators are turned on to indicate that the displayed weight is in pounds
and ounces.
oz 1/8
The oz 1/8 annunciator is turned on to indicate that the displayed weight is in 1/8 ounce.
g
The g annunciator is turned on to indicate that the displayed weight is in grams.
NET
Activated with the TARE function, the NET annunciator indicates that the displayed weight is the
net weight on the scale.
NOTE: The following annunciators are only active when in the Check Weighing Mode.
OVER
This annunciator triangle is turned on, and the display backlight will turn RED to signal that the
weight is greater than the Over Limit weight setting.
ACCEPT
This annunciator triangle is turned on, and the display backlight will turn GREEN to signal that
the weight is within the acceptable target limits (between the Under and the Over Limit settings).
UNDER
This annunciator triangle is turned on (with NO display backlight) to signal that the weight is less
than the Under Limit setting.
8528-M303-O1 Rev D  PS-7
3
