LinTronic TT455-RT-238 Manual

Beosystem control of non-b&o tv, screen or projector
Hide thumbs Also See for TT455-RT-238:

Advertisement

Quick Links

Download this manual See also: Quick Manual

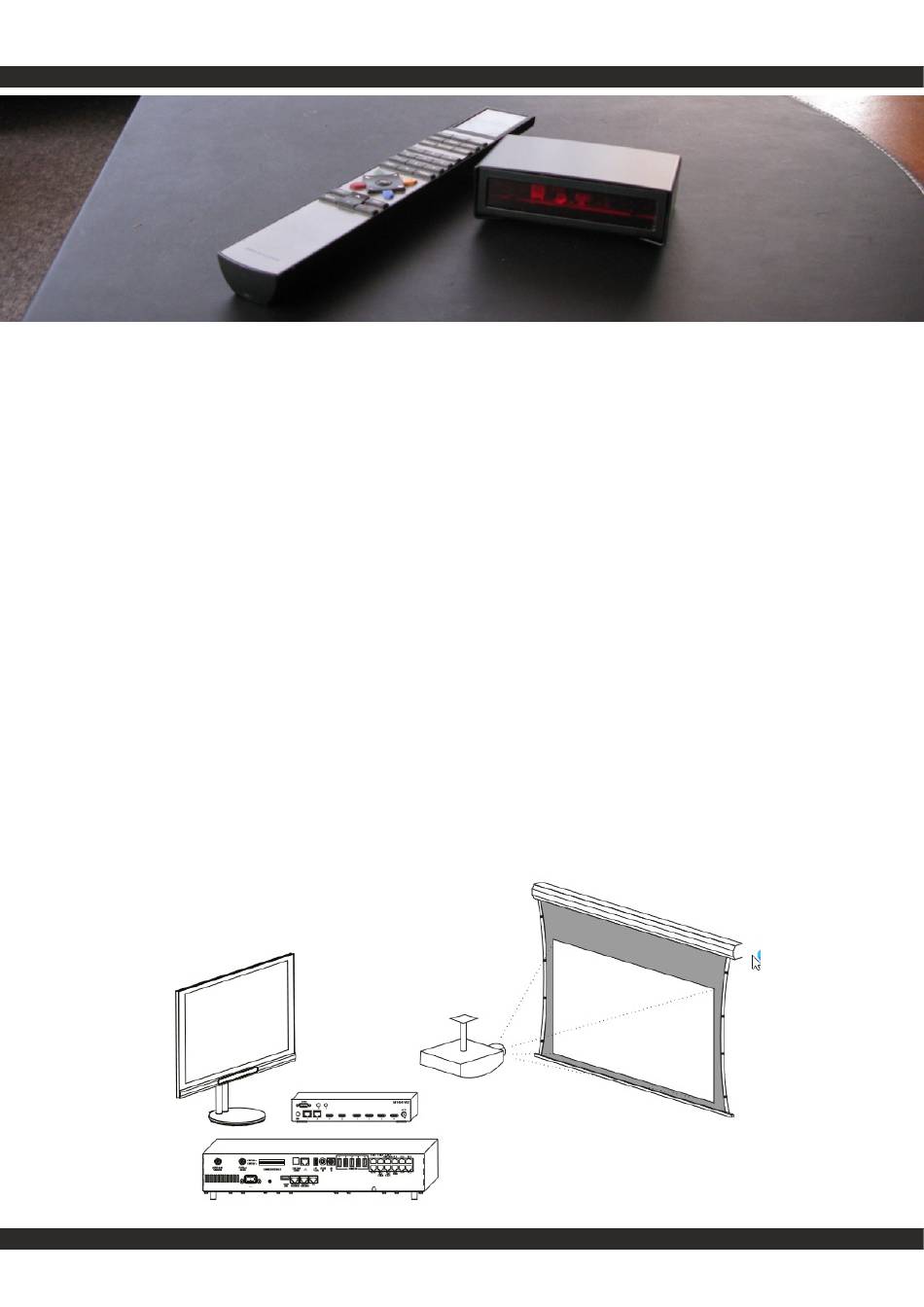

BeoSystem control of non-B&O TV, screen or projector
LinTronic
BeoSystem control
of non-B&O TV, screen or projector
CINEMA MODE
Updated: 190108
IR-Tx
IR-Tx
IR-Rx
IR-Tx
http://www.lintronic.dk

Advertisement

loading
Need help?

Need help?

Do you have a question about the TT455-RT-238 and is the answer not in the manual?

Questions and answers

Related Manuals for LinTronic TT455-RT-238

Summary of Contents for LinTronic TT455-RT-238

  • Page 1 BeoSystem control of non-B&O TV, screen or projector LinTronic BeoSystem control of non-B&O TV, screen or projector CINEMA MODE Updated: 190108 IR-Tx IR-Tx IR-Rx IR-Tx http://www.lintronic.dk...
  • Page 2 Lintronic provides solutions for relay controls, but you can also use the TT455-RT-238 to send out IR control of your devices when using CINEMA mode. All that you need are pinout/breakout boards and a few wires to make the connections of the pins between the breakout boards.”...
  • Page 3 BeoSystem control of non-B&O TV, screen or projector Controlling the TT455-RT-238 and the BeoSystem using only one IR receiver. BeoSystem IR DATA INPUT DIGITAL OUTPUT 2 RS232 EXTERNAL RECEIVER T T -IR -8087030 width: 7 cm TT455-RT-238 http://www.lintronic.dk...
  • Page 4 BeoSystem control of non-B&O TV, screen or projector Controlling the TT455-RT-238 and the BeoSystem using only one IR receiver. In Memory Map: Set the digital output 2 to Beosystem http://www.lintronic.dk...
  • Page 5 BeoSystem control of non-B&O TV, screen or projector Controlling the TT455-RT-238 and the BeoSystem using only one IR receiver. External receiver Input Input Communication Communication Output Power Output Power Tx (to cpu) Rx (from cpu) Jack connector seen To computer...
  • Page 6 DIGITAL OUTPUT 2 is set to BeoSystem, you should be able to monitor the IR noise/signal from the IR receiver on the digital output 2 on an oscilloscope, as shown below. External receiver Input Input Communication Communication Output Power Output Power DIGITAL OUTPUT 2 IR/DATA Ground TO BEOSYSTEM B http://www.lintronic.dk...
  • Page 7 The BeoSystems digital outputs are activated when the BeoSystem enters Cinema mode, and they are de-activated when the BeoSystem leaves Cinema mode. The TT455-RT-238 is easily configured to react when the digital input is activated or de- activated, or both - and will send IR or RS232 commands as instructed.
  • Page 8 DigOut 1 DigIn1 Relays ? RS232 for your light ? TT455-RT-238 Signal Converter - When Digital Output 1 from Beosystem is On, then send Power On by RS232 to Sanyo. - When Digital Output 1 from Beosystem is Off, then send Power Off by RS232 to Sanyo.
  • Page 9 The BeoSystems digital outputs are activated when the BeoSystem enters Cinema mode, and they are de-activated when the BeoSystem leaves Cinema mode. The TT455-RT-238 is easily configured to react when the digital input is activated or de- activated, or both - and will send IR or RS232 commands as instructed.
  • Page 10 BEOSYSTEM 4 PUC 1 RJ45 breakout box can be found on Amazon or Ebay...
  • Page 11 When Digital Output 1 goes high (in-active), then relay 1 and relay 2 are de-activated (Off). Relay 4 is activated for the programmed time (default 3 seconds). When Digital Output 2 goes high (in-active), then relay 5 and relay 6 are de-activated (Off). Relay 8 is activated for the programmed time (default 3 seconds). http://www.lintronic.dk...
  • Page 12 BeoSystem control of non-B&O TV, screen or projector TT455-RT-238 reacts to Cinema mode on/off, controls screen up/down and projector by RS232 and 3’rd party products by IR. BeoSystem 9-pin SUB-D/Female 5 6 7 9-pin SUB-D/Male 5 1 4 2 3...
