LinTronic TT455-RT-238 Quick Manual

Hide thumbs Also See for TT455-RT-238:

Advertisement

Quick Links

Download this manual See also: Manual
Get started
LinTronic
TT455-RT-238
Quick guide
Updated 190227
http://lintronic.dk

Advertisement

loading
Need help?

Need help?

Do you have a question about the TT455-RT-238 and is the answer not in the manual?

Questions and answers

Related Manuals for LinTronic TT455-RT-238

Summary of Contents for LinTronic TT455-RT-238

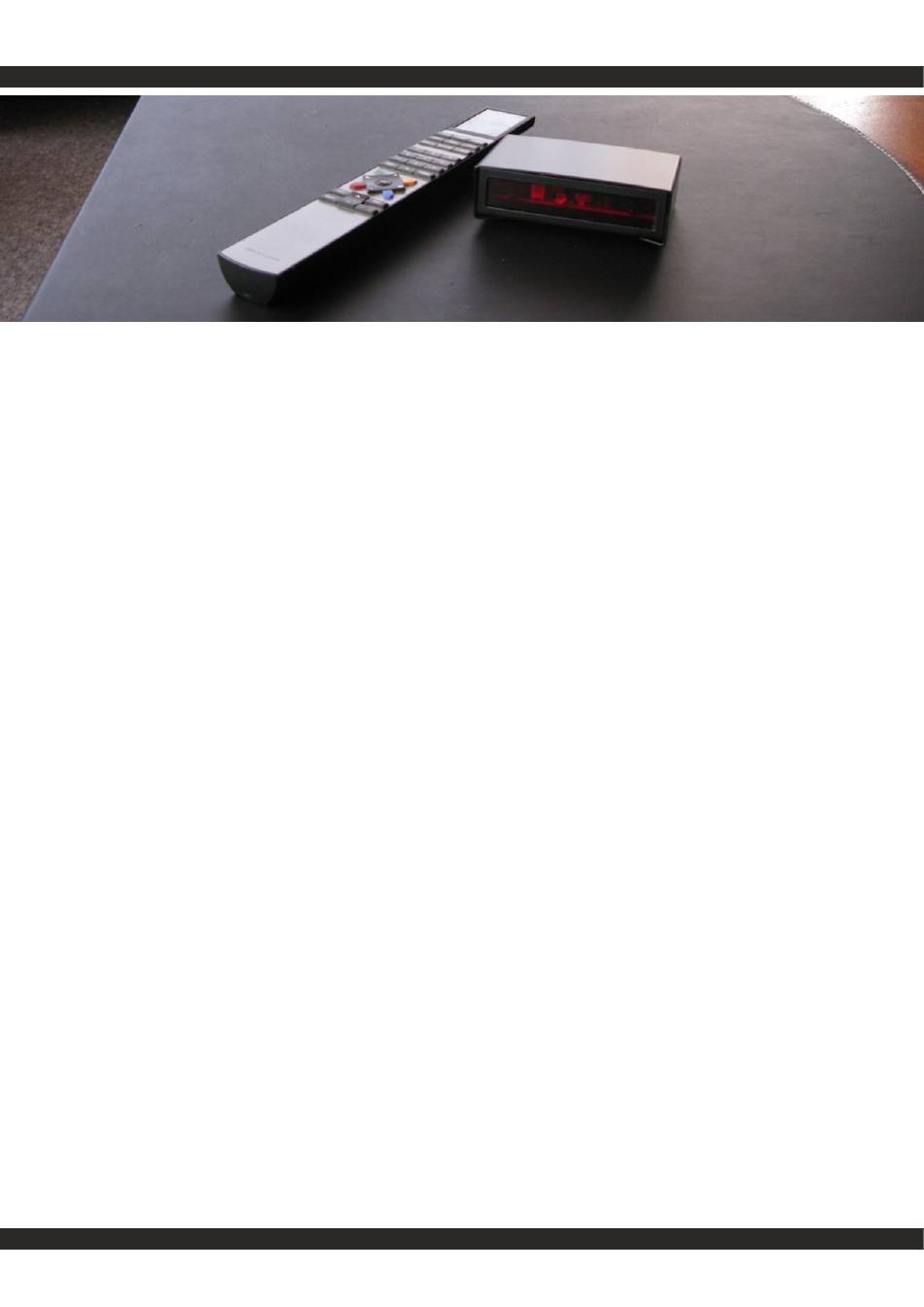

  • Page 1 Get started LinTronic TT455-RT-238 Quick guide Updated 190227 http://lintronic.dk...

  • Page 2: In This Guide

    Get started In this guide: Step 1 - Getting started Step 2 - CommandList Step 3 - Memory Map Step 4 - MyScore Step 5 - MyFeedback Step 6 - Dealers projects http://lintronic.dk...

  • Page 3: Step 1 - Getting Started

    This is just a Quick Guide to get you started. When you have studied this Quick Guide - we recommend you read it all - then use the Configurators HELP button to find the manual for the CommandList and Memory Map http://lintronic.dk...
  • Page 4 Get started HELP / GET STARTED - QuickGudes NEWS / DOCUMENTATION - manuals, videos FIRMWARE UPDATES - checks for updates of your products BOOTLOADER - updates your product DATASAMPLER - Comport monitor/control NOTEPAD STATISTICS - to be relased http://lintronic.dk...
  • Page 5 TV’s, projectors, light systems, relays, etc. etc. It is strongly recommended that you familiarize yourself with the technical manual of the product and the dedicated manuals for CommandList and Memory Map. See http://lintronic.dk | Support | Get started. Best regards, Michael Lindgaard http://lintronic.dk...
  • Page 6 Our products are controlled by Triggers, which causes Actions to be executed. A Trigger can be for example: - A remote control command (Bang&Olufsen, Apple, Bose, LinTronic, Logitech, NEC, Samsung, etc.) - A computer command (RS232 comport working on 2400 - 38400 bps) - A switch, contact, relay, motion detector, etc.
  • Page 7 We often participate in development of special firmware which will allow our product to carry out your specific tasks. We work fast and our prices are very attractive. STEP 2 - MEMORY MAP The Memory Map is where you select your Triggers and associate them with the Actions to be carried out. http://lintronic.dk...
  • Page 8 DOWNLOAD/INSTALL Download / install the Configurator Visit - http://lintronic.dk | Support | Download http://lintronic.dk/download.aspx http://lintronic.dk...
  • Page 9 Enter the license related Email and Password from your customer profile. Then generate your LicenseKey. Please note: If you later change your email address, then the login and the license email can be different as we will keep the first email for your license. http://lintronic.dk...
  • Page 10 CONNECT Get started Serial cable: ComCab-001 Connect communication cable to the TT455-RT-238. Insert cable into computers serial commport. Serial cable: ComCab-003 Connect communication cable to the product. Insert cable into computer. Do NOT install the enclosed CD. Let the Windows 10 computer find the driver online and auto- install.
  • Page 11 Get started Connect computer cables Input Output Communication Output Power Insert ComCab-001 into TT455-RT-238 and insert ComCab-001 into computer, or Insert ComCab-003 into TT455-RT-238 and insert ComCab-003 into computer. Insert ComCab-004 into LIN-138/LIN-433 Insert ComCab-004 into ComCab-003 Insert ComCab-003 into computer...
  • Page 12 CONNECT Get started OPEN THE COMPORT ASSIGNED TO YOUR (USB) CABLE = default Click USB button in order to find USB port http://lintronic.dk...
  • Page 13 2.1 mm Front LED should blink for 2 seconds and then turn on for ½ a second. Heart beat indicator blinks every second. This indicator is best viewed from the side. Follow the red arrow below. http://lintronic.dk...
  • Page 14 - Products blinks for 2 seconds when power is applied - If you use our USB-RS232 ComCab-002/003 cable, did you install the driver ? - A driver update might be required. Still no luck ? Contact LinTronic for OnlineSupport. http://lintronic.dk...

  • Page 15: Step 2 - Commandlist

    - as everything is done exactly the same way. Mark a product as Favorite if you want to use it a configuration project. NEVER UPLOAD COMMANDS UNLESS YOU HAVE TESTED THEM IN A PROJECT AND THEY WORK. OTHERS USERS DEPEND ON YOU. http://lintronic.dk...
  • Page 16 Setting product to favorite, will allow you to add it to your projects instructs your product to send the selected IR command when selected IR command is tested, this shows the command you can send from your homeautomation software http://lintronic.dk...
  • Page 17 If you can use the commands from this product, but your product holds a different typenumber, then please copy the product into a new product and change the typenumber. See the complete CommandList manual for more details - and how to copy commands from your own remote control. http://lintronic.dk...

  • Page 18: Step 3 - Memory Map

    MODE and TRIGGER. START SIMPLE ! Start by controlling a CD player (play, stop, eject) or a TV (power on/off, channels, volume). When you know how this works - you can virtually do all. http://lintronic.dk...
  • Page 19 TRIGGER: B&O Get started TT455-RT-238 If you want to use a B&O remote as trigger: See manual for the TT-IR-8087030 IR receiver: http://lintronic.dk/AppNote_TTIR8087030.pdf TT-IR-8087030 Input Out1 RS232 Out2 Power Included BUTTONS INFRARED Buttons STEREO-EXT-10 (extra) http://lintronic.dk...
  • Page 20 LinTronic codes: For easy configuration, choose LinTronic (codeset 745) as trigger and operate the remote. Point the remote at the front of the TT455-RT-238 and operate the keys to set Mode and Trigger. LogiTech Smart can be recommended allowing control from your smartphone.
  • Page 21 If you want to use a NEC code based remote as trigger: For easy configuration, choose NEC (codeset 713/716) as trigger and operate the remote. Point the remote at the front of the TT455-RT-238 and operate the keys to set Mode and Trigger. http://lintronic.dk...
  • Page 22 If you want to use a SAMSUNG code based remote as trigger: For easy configuration, choose SAMSUNG (codeset 753) as trigger and operate the remote. Point the remote at the front of the TT455-RT-238 and operate the keys to set Mode and Trigger. http://lintronic.dk...
  • Page 23 - one or more InfraRed (IR) signals for your products (audio/video, light, curtains, aircon etc.) - an RS232/RS485 command for your computer, projector, lcd/plasma screen,light, etc. - a LinTronic bus-command for individual or broadcast control for up to 32 TT455-T-238's Select remote...
  • Page 24 In this example we assume you use a Beo4 NAVI (recommended) to set the Mode/Trigger. 1. Point the BEO4 at the TT455-RT-238's external receiver or use the mouse to select: Mode TV - Trigger 0 2. Add Sony TV KV-F29FX20E to the project.
  • Page 25 The high-power wide-angle dual-band front IR booster, will reach most if not all products in the same room. If you place the TT455-RT-238 on top of a cabinet, then the low-power outputs can reach products inside the cabinet, by means of the low-power emitters TT-IT-ET02.
  • Page 26 - or any combination of the three. 1. Click here to enter NUMBERS mode 2. Click here to adjust ports Options are: 1 = low-power port 1 2 = low-power port 2 3 = high-power front IR H = front use 100% power http://lintronic.dk...
  • Page 27 On comport 1 (pin 7-8) or on comport 2 (pin 2-3). You can use both RS232 ports to control your products. The TT455-RT-238 can be placed on top of a cabinet and you can connect RS232 kables to for example a TV, a projector, an amplifier, etc.
  • Page 28 You can instruct the signal to be transmitted on any of the two RS232 comports, but only on one of them. 1. Click here to enter NUMBERS mode 2. Click here to adjust ports Options are: 1 = comport 1 (pin 7-8) 2 = comport 2 (pin 2-3) http://lintronic.dk...
  • Page 29 Enter your comments and suggestions. Save your score. You will be asked whether you want to send your feedback to LinTronic. You can at any time read your score, change it and save again. Set 10% for worst score and 100% for best score - for each area.
  • Page 30 MyScore Get started Click the S for each area, to see how other LinTronic users scored the particular area. For example, click the S left for the Documentation label, which will show you how other users likes the documentation. We evaluate the scorings to determine how we can improve in all areas.
  • Page 31 MyScore Get started Click to see the average score, for all users for all areas: http://lintronic.dk...
  • Page 32 MyFeedback Get started Step 5 - MyFeedback If you have contributed to our online fedback page, then you get a simplified copy in this folder. In order to help us with your feedback goto: http://lintronic.dk/feedback.aspx http://lintronic.dk...
  • Page 33 In order to download a project as a dealer, you need to know the Project ID and the Download key. To ensure everything works as expected at customer/dealer site, downloaded projects cannot be edited. If this could be intersting for your organisation, please contact LinTronic. http://lintronic.dk...
  • Page 34 Get started Do not forget to study the technical manual in order to get the most out of your TT455-RT-238. [end of document] http://lintronic.dk...
