BIO Assembly Instructions

7. Positioning the Brush Covers

8. Assembling the Outer Casing

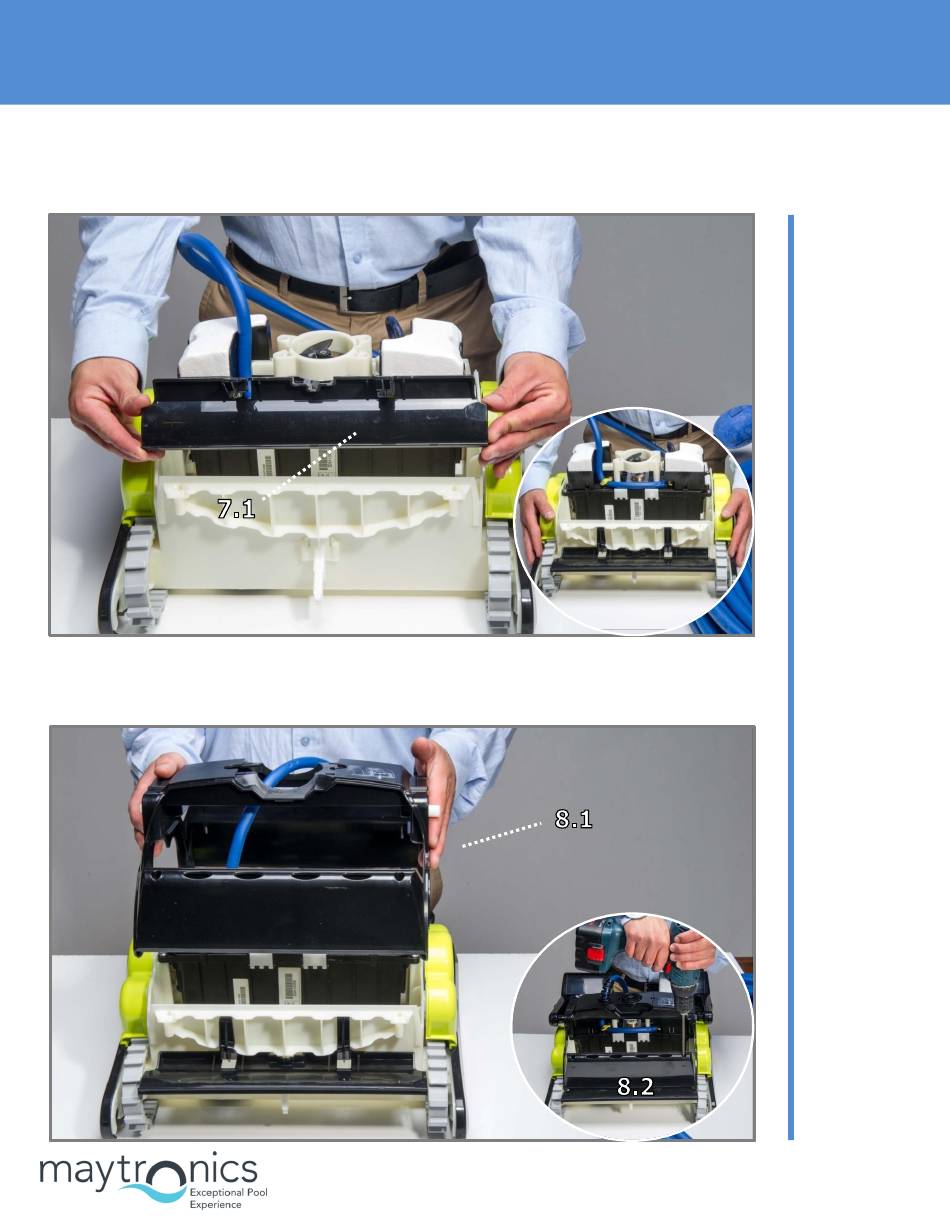

Step 7.1 Step 7.1
Position the 2 Position the 2
brush safety brush safety
covers on both covers on both
sides of the sides of the
robot. robot.
Step 8.1
Place the outer
casing on the
frame.
Step 8.2
Secure the outer
casing to the
frame with 4
50X20 screws.
Page 8 of 14
