BIO Assembly Instructions

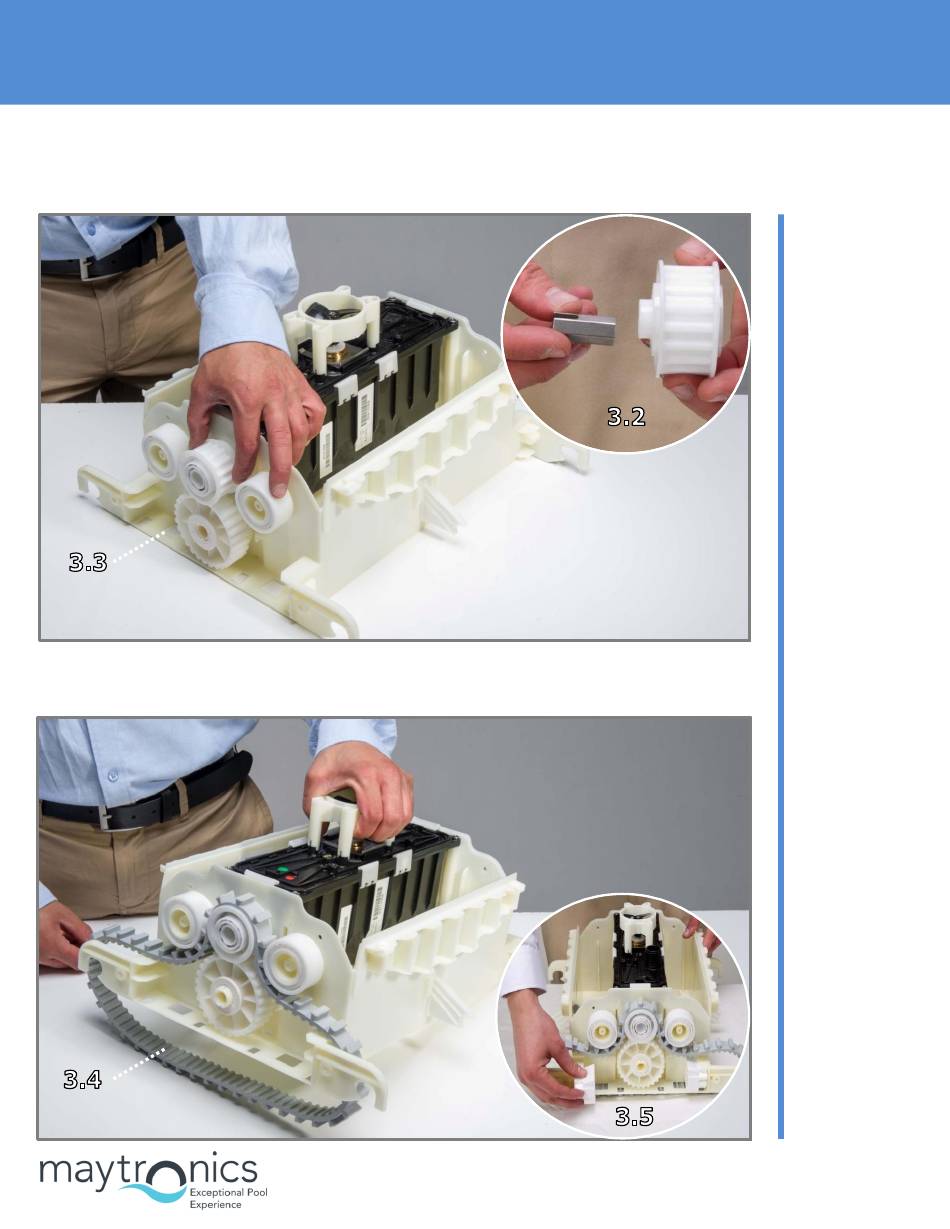

Step 3.2
Put 2 hexagon
adaptors into the
pulley.
Step 3.3
Put the pulley and
the Active Brush
gear in their
places on both
sides of the robot.
Step 3.4
Place the track in
its place as shown
on both sides of
the robot.
Step 3.5
Place the side
floats on both
sides of the robot
