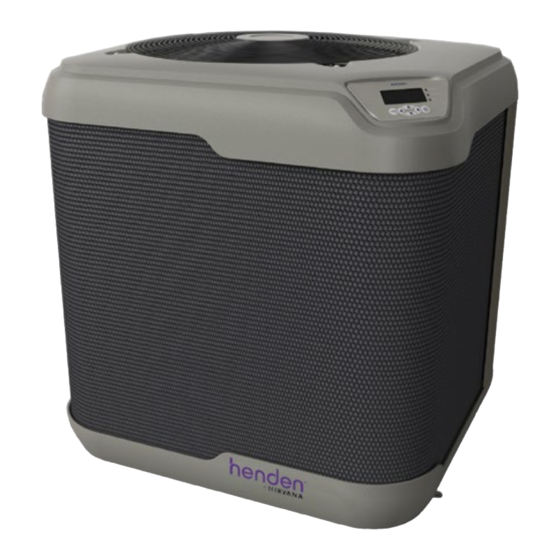

Swimming Pool Heat Pumps
HHP16B, HHP23B, HHP28B, HHP35B
INSTALLATION &
OWNERS MANUAL
WARNING:
Failure to follow
these instructions
and comply with all
applicable codes
may cause serious
bodily injury and/or
property damage.
The installation of
this product should
be carried out by a
person knowledgeable
in swimming
pool plumbing
requirements following
the installation
instructions provided
in this manual.
Please pass these instructions on to the operator of this equipment
IMPORTANT
Please read carefully
