Sunrise Medical JAY Series Installation Sheet

129296_Rev.A_JAY_FootBoxSingle_Layout 1 7/8/14 2:27 PM Page 1
Please read these instructions carefully before beginning the installation. Failure to understand and follow installation instructions
may result in injury to installer and/or end user and may void the warranty.
If you have any questions call Sunrise Medical Technical support at 800.333.4000

Parts included:

1x Single Footbox
2x Screws

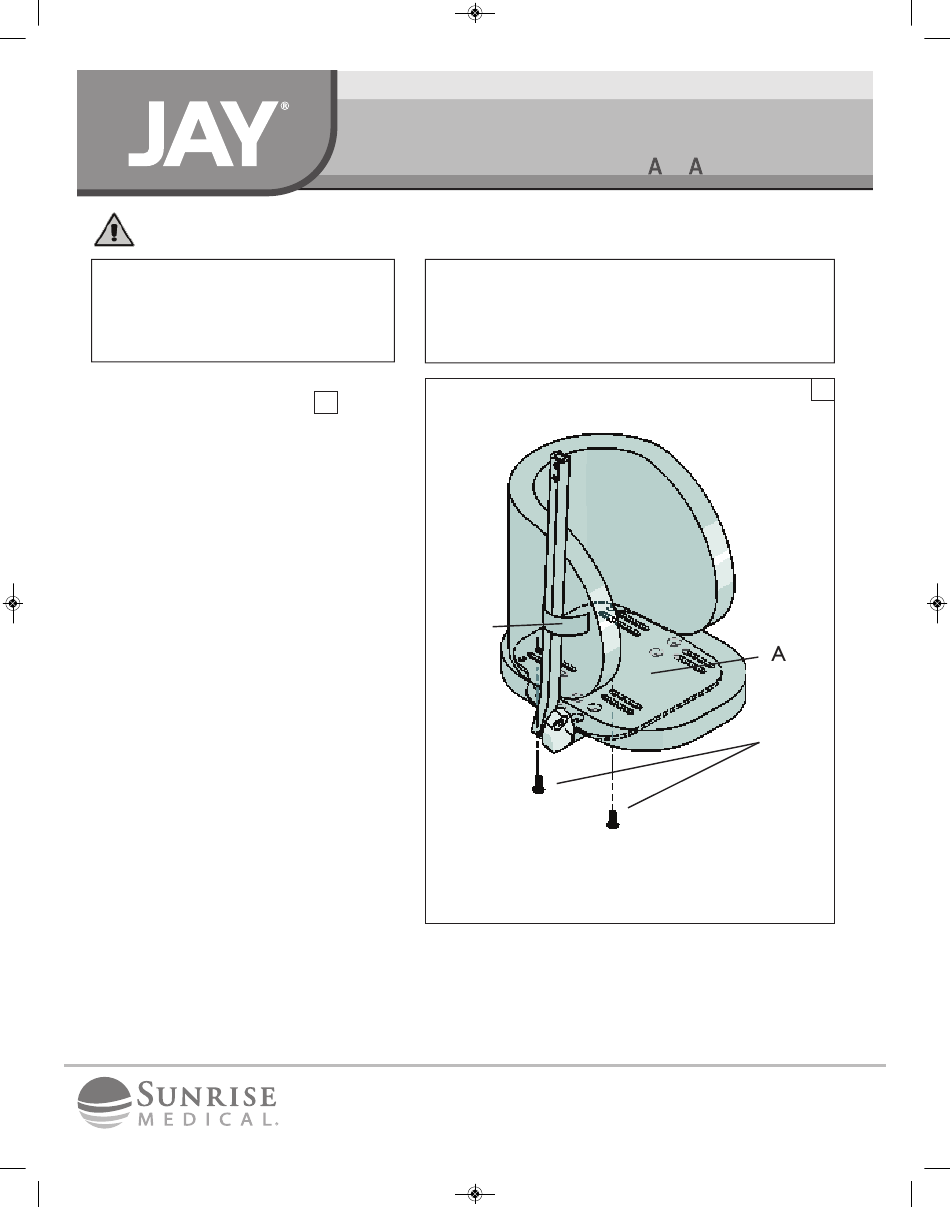

1. Mount Single Footbox onto foot-plate

a. Fasten Single Footbox onto foot-plate (A) using
screws (B), as shown.
b. Please see drill guide on back of this sheet if foot-
plate holes cannot accommodate Single Footbox
holes
c. Place velcro strap (C) around leg rest extension bar.
S I NGL E FOOT BOX I N ST L L T I ON S HE E T

Tools needed for installation:

1x 4mm Hex Wrench
1
C
Customer Service: 800.333.4000
www.SunriseMedical.com
Sunrise Medical • 2842 Business Park Ave. • Fresno, CA 93727 • USA
1
B
In Canada (800) 263-3390
©2014 Sunrise Medical (US) LLC
06.14 129296 Rev. A
