Summary of Contents for cleanAIR Basic EVO 81 00 00
Page 1
USER MANUAL PERSONAL RESPIRATORY PROTECTION SYSTEMS CleanAIR® Basic EVO CA-10 MALINA - Safety s.r.o. Luční 11, Tel. +420 483 356 600 466 01 Jablonec n. Nisou export@malina-safety.cz Czech Republic www.malina-safety.com NA-067-R00...
Page 2
How to insert the battery How to replace the filter How to attach the belt How to remove battery and charge it After successful removal of the filter, put the new filter and filter cover on its original place.
Page 3

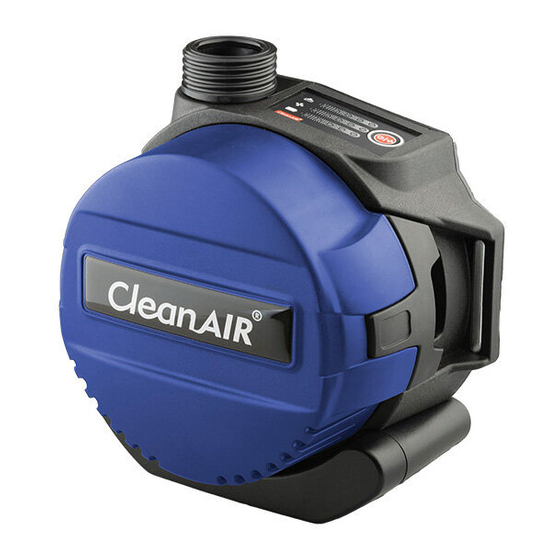

Basic EVO Powered Air Purifying Respirator (PAPR) IMPORTANT: To ensure your safety, please read and remember the following instructions before use. Keep the manual for future reference. The unit should be used only for the purposes listed in this manual. DŮLEŽITÉ: V zájmu vlastní...
To ensure efficient protection, it is necessary to choose a suitable combination of PAPR unit and protective head- top. It is also important to use the original filters. The CleanAIR® Basic EVO meets the requirements of the EN 12941. It provides protection against solid and liquid particles.
Unpacking / Assembly 3.1. Unpacking the CA Basic EVO Check whether the package contents are complete and that nothing has been damaged during transport. The complete system, including accessories, contains the following components: 81 00 00 81 00 00PA 81 00 00CA Basic EVO unit with P R SL filter Exchangeable battery Comfort padded belt Standard...
Replacing filters Only filter designed for CleanAIR® Basic EVO may be used! Filter must be new, unused and in the original packag- ing. The expiration date must not be exceeded – it is marked on a sticker on the body of the filter.
225 / 240 l/min Storage All parts of the CleanAIR® system must be stored at temperatures between -10 °C and 55 °C, with relative air humidity between 20 and 95% Rh. Batteries will self-discharge during storage. Therefore, it is recommended to charge the battery for 1 hour at least every 3 months.
Comfort padded belt Standard 70 00 90RD Flow indicator CA40x1/7” 81 00 30 CleanAIR® Basic EVO filter cover Technical data Technical specifications - CleanAIR® Basic EVO Airflow 170 - 240 l/min Display LED display Weight of unit, including battery 980 g Unit noise <...
Page 9
CleanAIR® Basic EVO darf nicht in Bereichen verwendet werden, in denen die Sauerstoffkonzentration unter 17 % liegt. • CleanAIR® Basic EVO darf nicht in Bereichen verwendet werden, in denen der Benutzer nicht weiß, um welche Art von Verschmutzung und deren Konzentration es sich handelt.
Page 10
Auspacken/Montage 3.1. Auspacken des CA Basic EVO Überprüfen Sie, dass der Packungsinhalt vollständig ist, und dass nichts beim Transport beschädigt wurde. Das vollständige System, einschließlich Zubehör enthält folgende Komponenten: 81 00 00 81 00 00PA 81 00 00CA Basic EVO-Gerät mit P R SL-Filter Austauschbare Batterie Gepolsterter Komfortgürtel Standard Gepolsterter Komfortgürtel Super...
Page 11
6.1. Austausch von Filtern Es dürfen nur Filter verwendet werden, die für CleanAIR® Basic EVO entworfen wurden! Die Filter müssen neu, ungebraucht und in der Originalverpackung sein. Das Ablaufdatum darf nicht überschritten sein. Es befindet sich auf dem Etikett am Filter.
Page 12
185 / 205 / 225 / 240 l/min Lagerung Alle Teile des CleanAIR®-Systems müssen in Räumen mit Temperaturen zwischen -10 und 55 °C und einer relativen Luftfeuchtigkeit zwischen 20 und 95 % (rel.) aufbewahrt werden. Batterien entladen sich bei Lagerung. Deshalb wird empfohlen, die Batterie mindestens 1 Stunde alle 3 Monate aufzuladen.
